AD9850 DDS Signal Generator Module 0-40 Mhz IC Test Equipment
Closed

AD9850 DDS Signal Generator Module 0-40 Mhz IC Test Equipment

8 were available / new
R431.14
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
473
Bob Shop ID
604004545

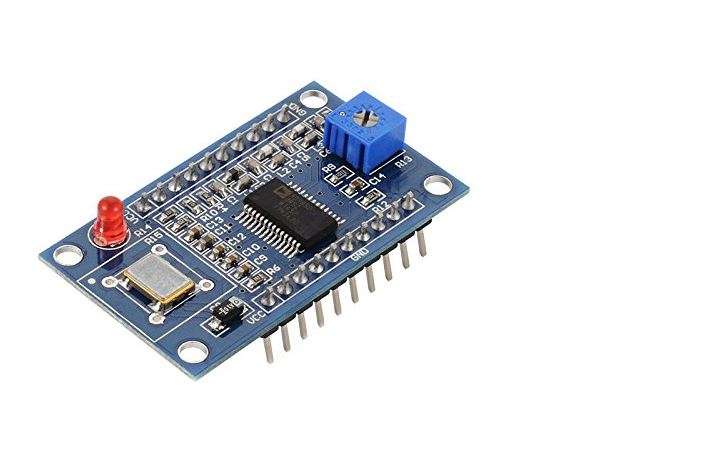

AD9850 DDS Signal Generator Module 0-40 Mhz IC Test Equipment

Product Description

This is the AD9850 DDS Signal Generator Module 0-40 Mhz IC Test Equipment sine square wave for Arduino. The module can output sine wave, square wave, two sine wave and two square-wave output.

  • Frequency harmonics in the 20-30MHz, the waveform will be less and less clean.
  • 70MHz low-pass filter, waveform SN than better
  • Generate DA benchmark the pin (PIN12) leads, convenient to adjust the application to do the amplitude of the output waveform.
  • Comparator reference input voltage generated by the variable resistor to adjust the resistance can be a different duty cycle square wave
  • AD9850 to module using 125MHz active crystal, the AD9851 module 30MHZ the active crystal
  • AD9850 is produced by DDS module which be most widely used in ADI

Product Specs:

  • Square Wave: 0-1MHz
  • AD9850 to: 0-40MHz
  • AD9851: 0-70MHz
  • Size: Approx. 4.5x2.6x1.7cm

Locally Stocked. Available for Immediate Shipping!
