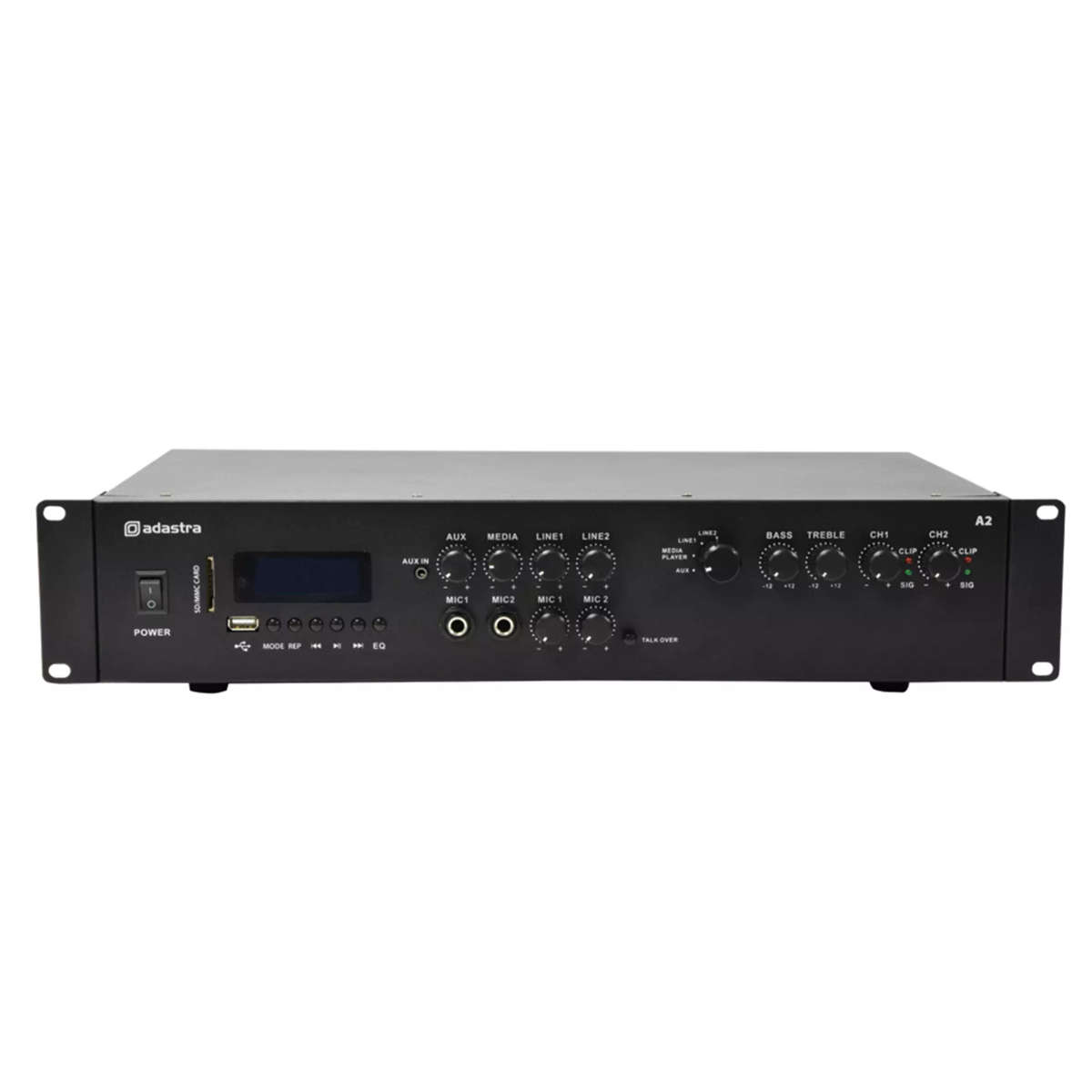

ADASTRA A2 2U MIXER AMPLIFIER 2X 200W

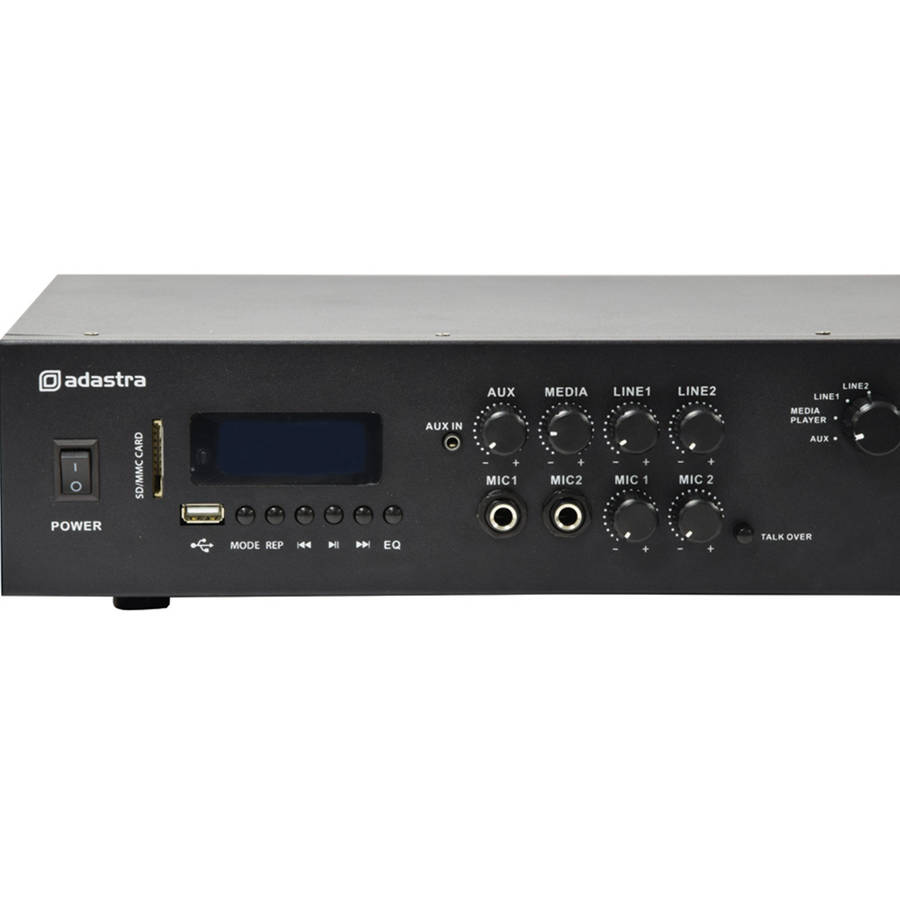

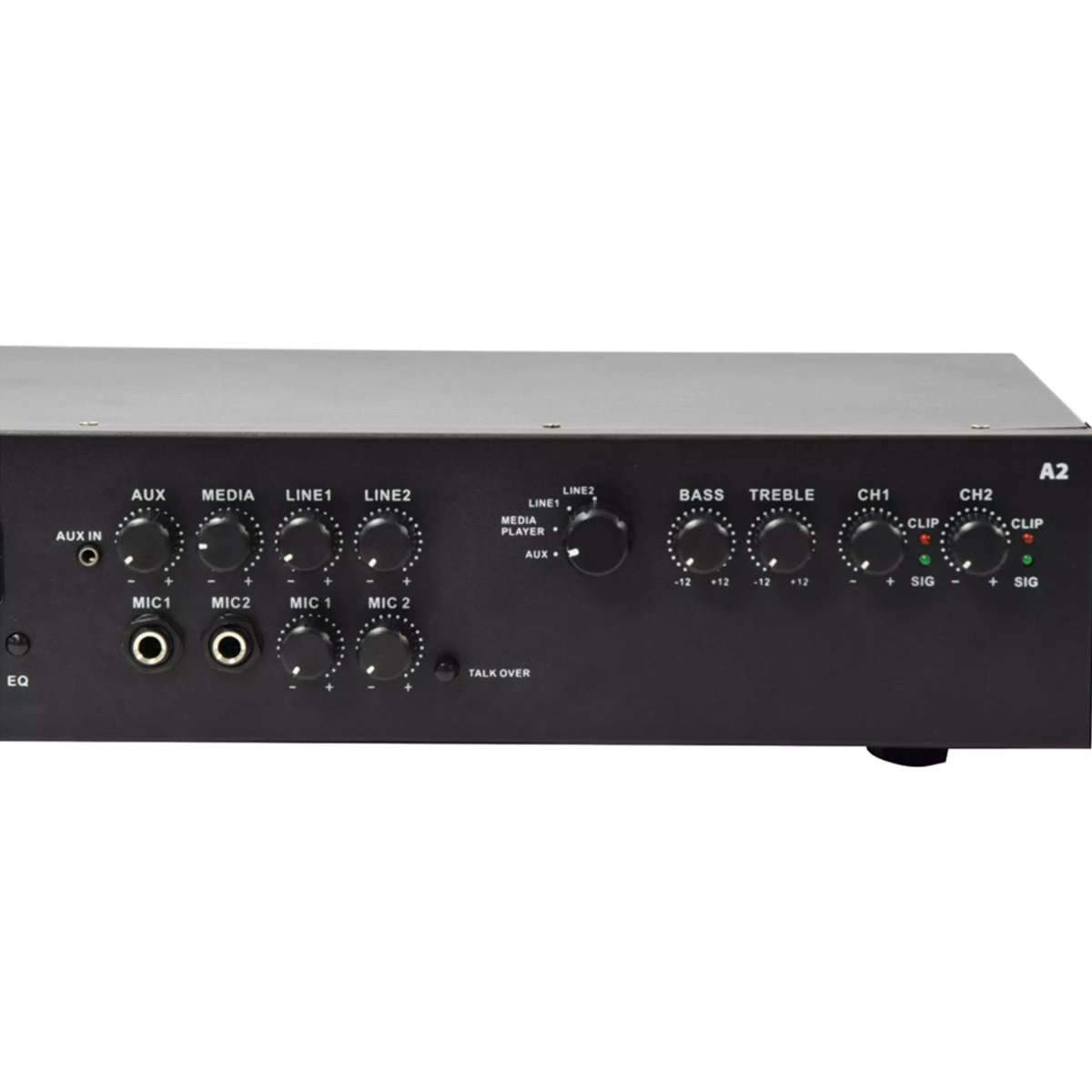

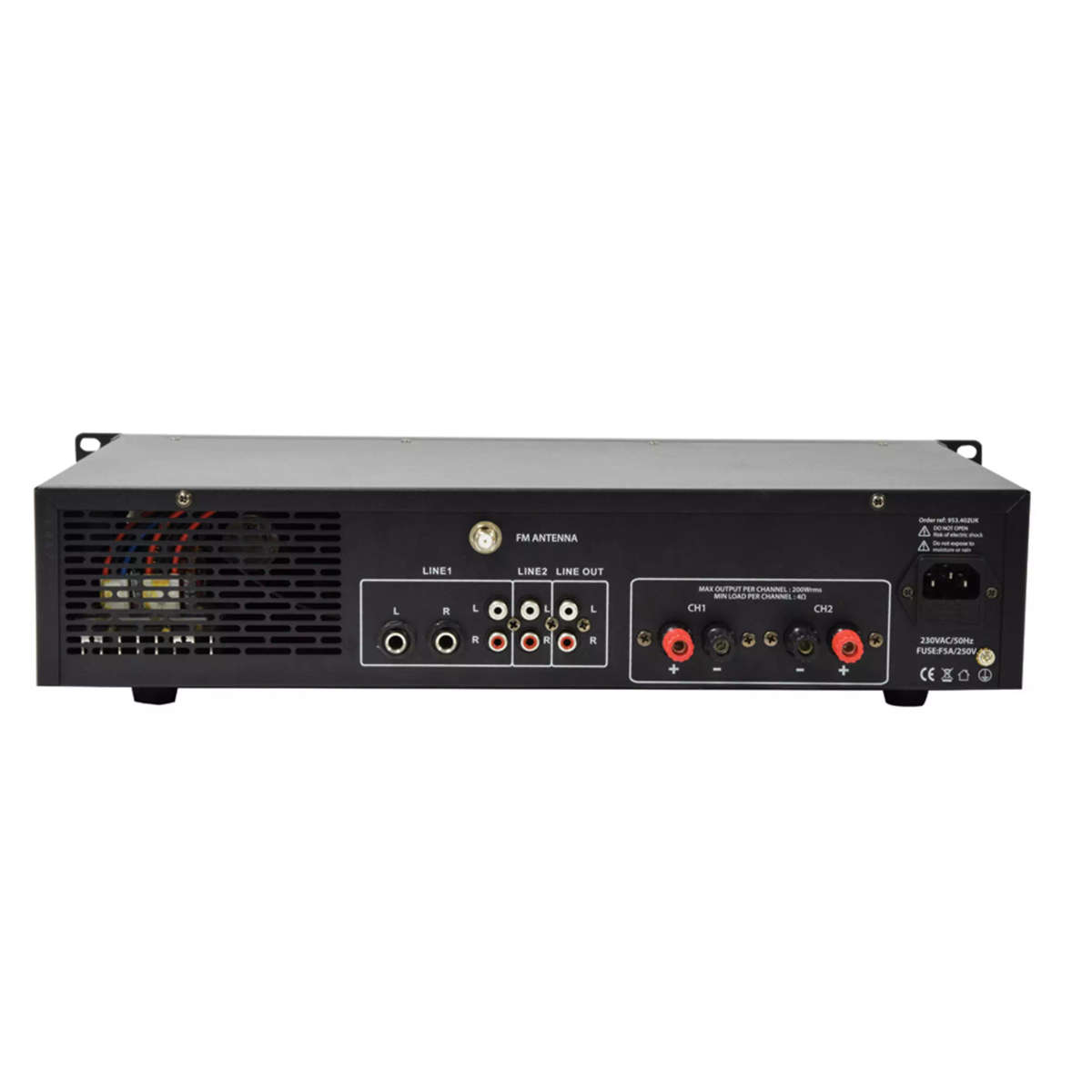

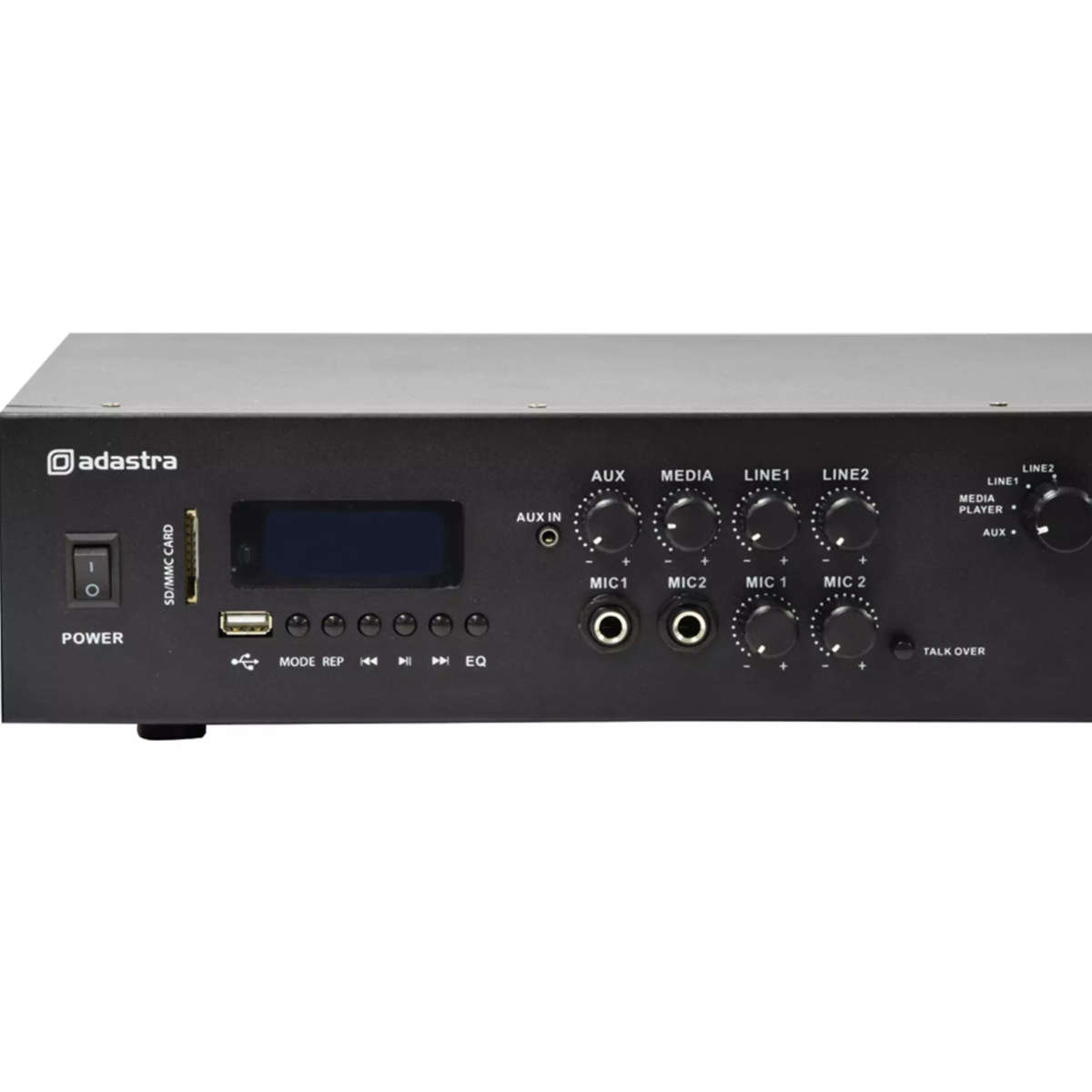

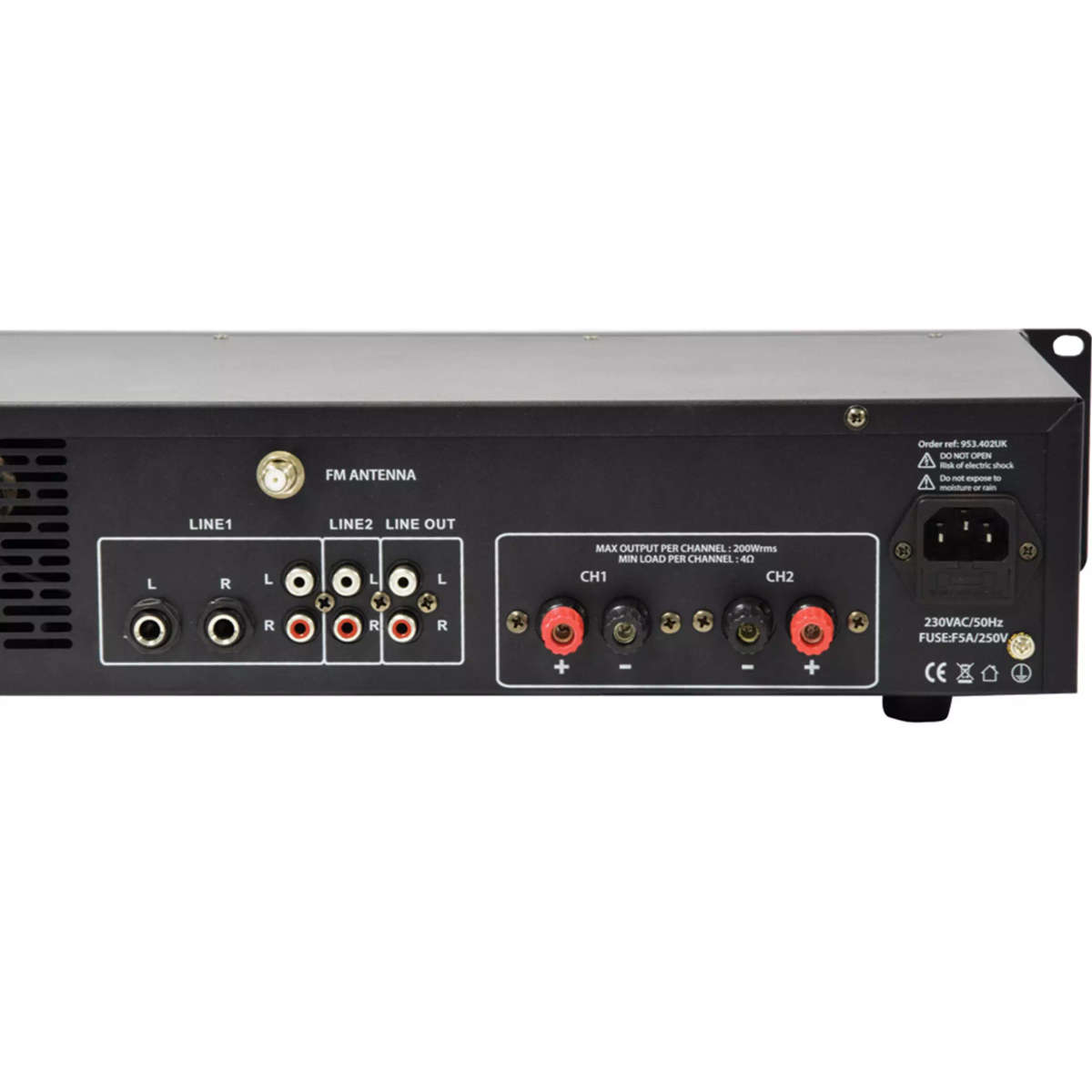

Fully featured stereo amplifier with mixer section for 2 microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch selects between 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers per channel to deliver 2 x 200W. Designed to offer installers a flexible solution for P.A. and music playback in bars, restaurants and function rooms.

Power supply : 230Vac, 50Hz (IEC)

Fuse : F5A, 250V

Output power : rms @ 4 Ohms - 2 x 200W

Output power : rms @ 8 Ohms - 2 x 100W

Amplifier : construction Class D

Frequency response : 20Hz - 20kHz ±0.5dB

Microphone inputs : 2 x 6.3mm jack (mono)

Line inputs Line : 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)

Input sensitivity : line 0.775Vrms

Auxiliary input : 3.5mm stereo jack

Input sensitivity : aux 0.480Vrms

Input impedance : 20k Ohms (balanced), 10k Ohms (unbalanced)

Audio source : USB/SD mp3 playback, FM tuner, BT receiver

Bluetooth version : 2.3

Input controls : Aux, Media, Line1, Line2, Mic1, Mic2, Talkover

Line output : 2 x RCA

Speaker outputs : 4mm binding posts (2 channels)

Antenna connection : F type (FM tuner)

Output controls : Source select, Bass, Treble, Ch1, Ch2

Dynamic range : 92dB

THD : +N <0.1%

Protection : Thermal, over-current, over-voltage, short-circuit

Dimensions : 482 x 240 x 88mm

Weight : 5.21kg
