Adastra - A6 TRI STEREO MULTI ZONE AMPLFIER

Multi-zone amplifiers with 2 microphone inputs and a switchable stereo input for each zone. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a B/T wireless receiver and FM radio tuner. A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to all output zones at all times. Speakers are connected from the rear panel Euroblock terminals to deliver up to 200W per output at 4 Ohms. Designed for installations requiring high quality stereo sound in multiple rooms or listening areas.

Power supply: 230Vac, 50Hz (IEC)

Fuse: F5A, 250V

Amplifier : construction: Class D

Frequency response: 20Hz - 20kHz ±0.5dB

Microphone inputs: 2 x 6.3mm jack (mono)

Line inputsLine 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)

Input sensitivity : line0.775Vrms

Auxiliary input: 3.5mm stereo jack

Input sensitivity : aux: 0.480Vrms

Input impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)

Audio source: USB/SD mp3 playback, FM tuner, B/T receiver

B/T wireless version: 2.3

Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover

Antenna connection: F type (FM tuner)

Dynamic: range

THD: +N

Protection: Thermal, over-current, over-voltage, short-circuit

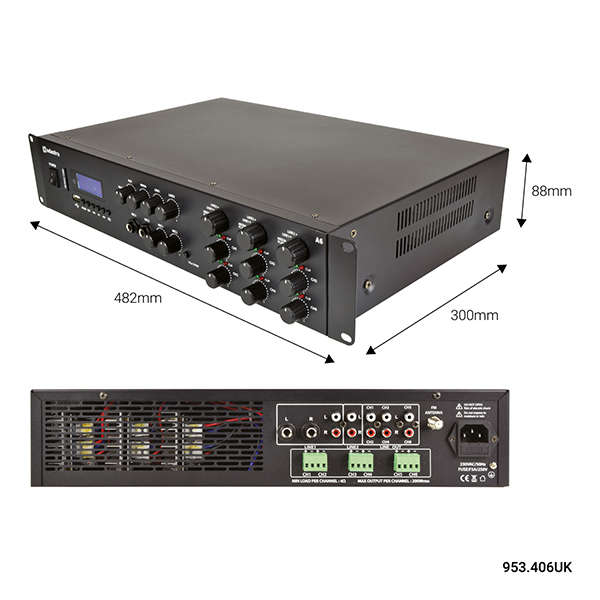

Dimensions: 482 x 300 x 88mm

Line output: 6 x RCA

Output power rms: @ 4 Ohms6 x 200W

Output power rms: @ 8 Ohms6 x 100W

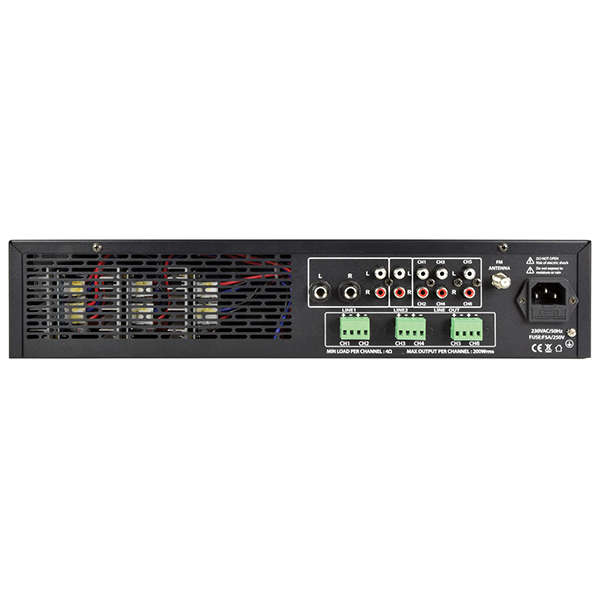

Speaker outputs: 3 x 4-terminal Euroblock

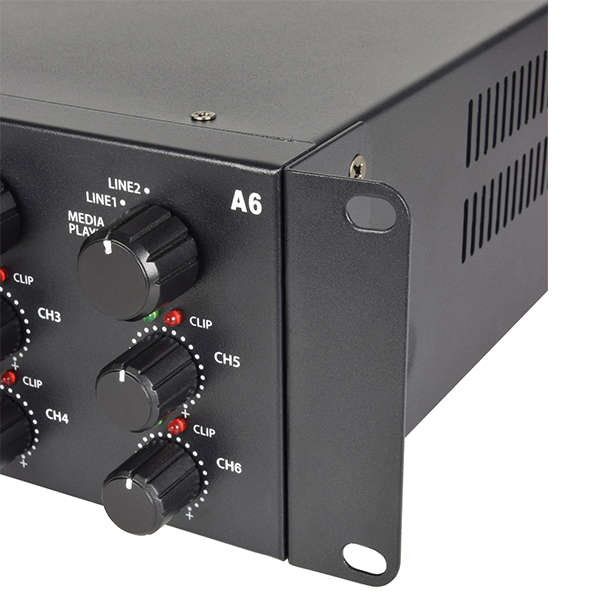

Output controls: 3 x source select, Ch1 - Ch6 level

Weight: 8.26kg
