ADASTRA CS-5X CALL STATION FOR RX45

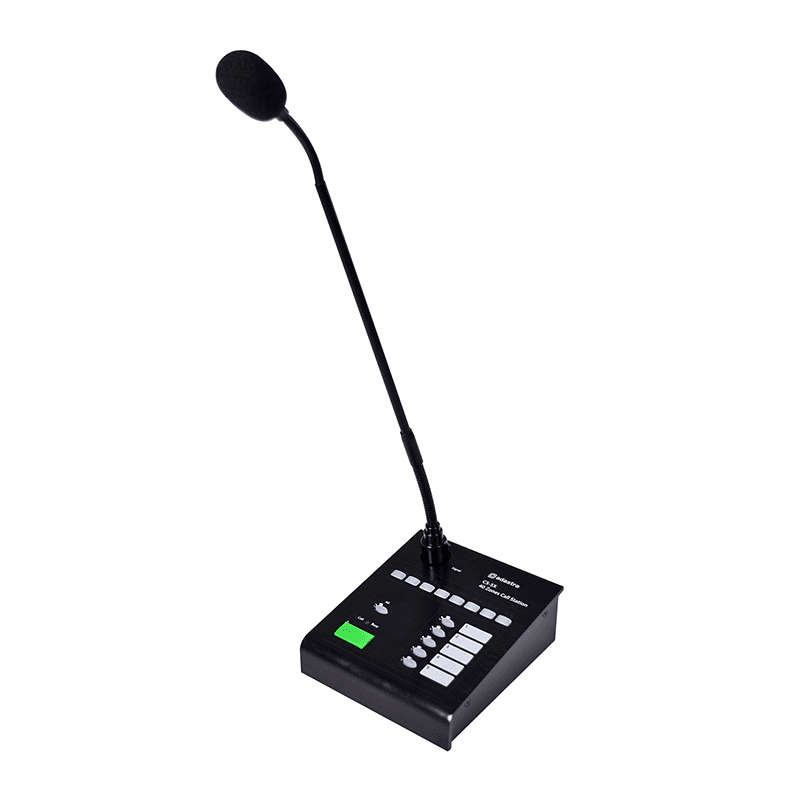

A paging microphone with call station base, to be used with the RX45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to 5 zones of the RX45 unit, with the Page button accordingly muting audio playback in those areas for clear vocal announcements. There is a choice of 8 paging chimes, and an AUX audio input for pre-recorded messages and alerts. A further row of Group buttons enables the user to assign paging for up to 8 different RX45 units that are linked as an expanded system, allowing up to 40 distinct pageable zones.

Power supply : 24Vdc, 500mA from RJ45 or optional adaptor

Max. connection length: 100m (CAT5 cable) or 1km with optional 24Vdc adaptor

Capsule : Back electret condenser

Polar pattern : Cardioid

Controls : Aux/Mic/Chime levels, chime DIP switches, group/zone/page buttons

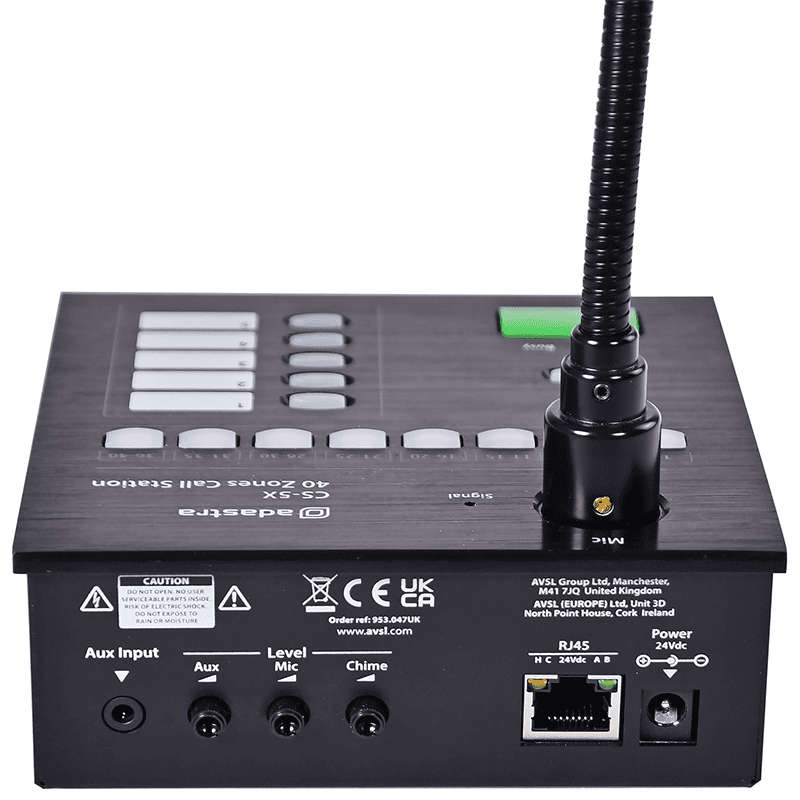

Connectors: XLR, RJ45 (to RX45), 24Vdc power jack, 3.5mm aux in

Frequency response : -3dB: 150Hz - 20kHz

Input level: Mic: -46dBV, Aux: -10dBV

Input impedance: Mic: 600 Ohms, Aux: 50k Ohms

Output level: 10dBV

Output impedance : balanced: 600 ohms

S/N ratio: -60dB (all channels selected)

Interface: RS-485 control

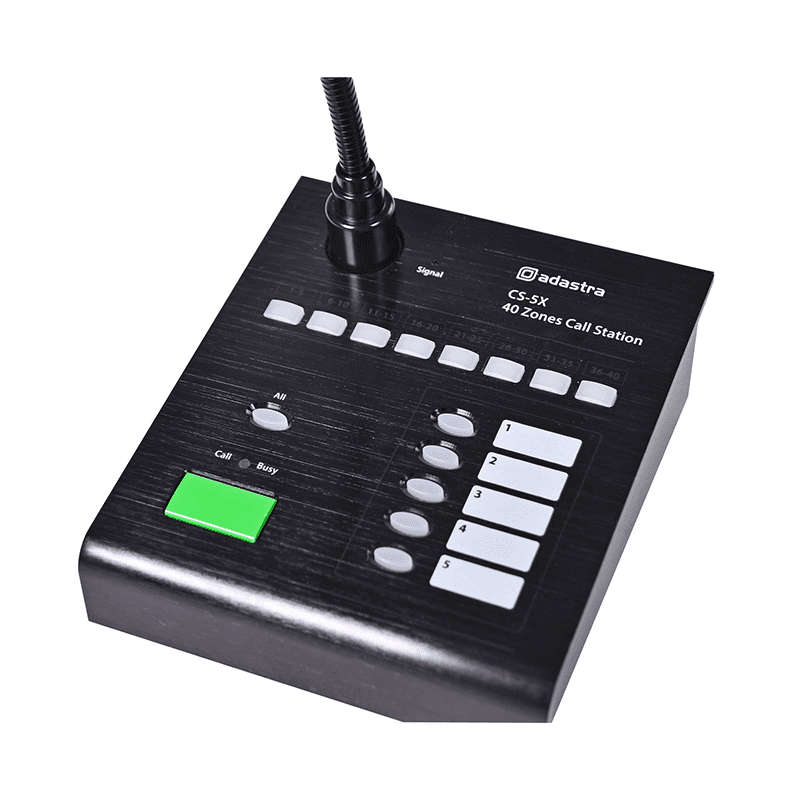

Zone assign: 5 zones per RX45, any combination across 8 Group IDs

Dimensions: 450 x 140 x 125mm

Weight: 653g
