Adastra - RM360SB 5 CHANNEL 100V MIXER AMP WITH BLUETOOTH®

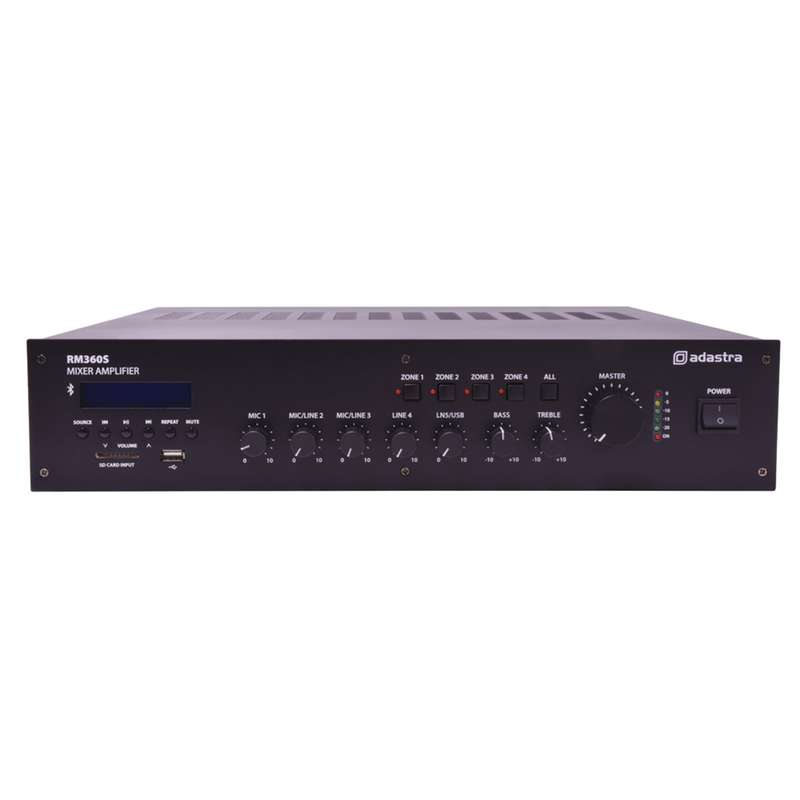

A rack-mountable 5-channel mixer amplifier, tailored to commercial sound installations, that can either be used as a 100V line amplifier or a standard low-impedance amp. Versatile input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt FM radio tuner, front-mounted SD and USB ports, and Bluetooth connectivity, all controlled via an integrated media player for hassle-free playback. A switchable 'voiceover' feature automatically lowers the background music volume when a signal is detected via mic input 1 and rear panel 24V contacts can mute all except mic input 1 when triggered.

Mains power: 110/240Vac, 50/60Hz (IEC)

DC power: 24Vdc (screw terminals)

Inputs Mic : XLR, 2 x mic/line jack, 2 x RCA line

Input sensitivity : mic 1 (balanced) -53dBV

Input impedance : mic 1 5k Ohms

Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)

Input impedance : inputs 2-5 1k Ohms

Line output: RCA

Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume

Equalizer : bass 100Hz ±10dB

Equalizer : treble 10kHz ±10dB

Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)

Phantom power: +20V (mic 1 input)

Audio source: USB/SD player, FM tuner and Bluetooth receiver

Emergency control: 24V contacts - mute all except Mic.1 when triggered

Bluetooth version: 2.0

THD :
