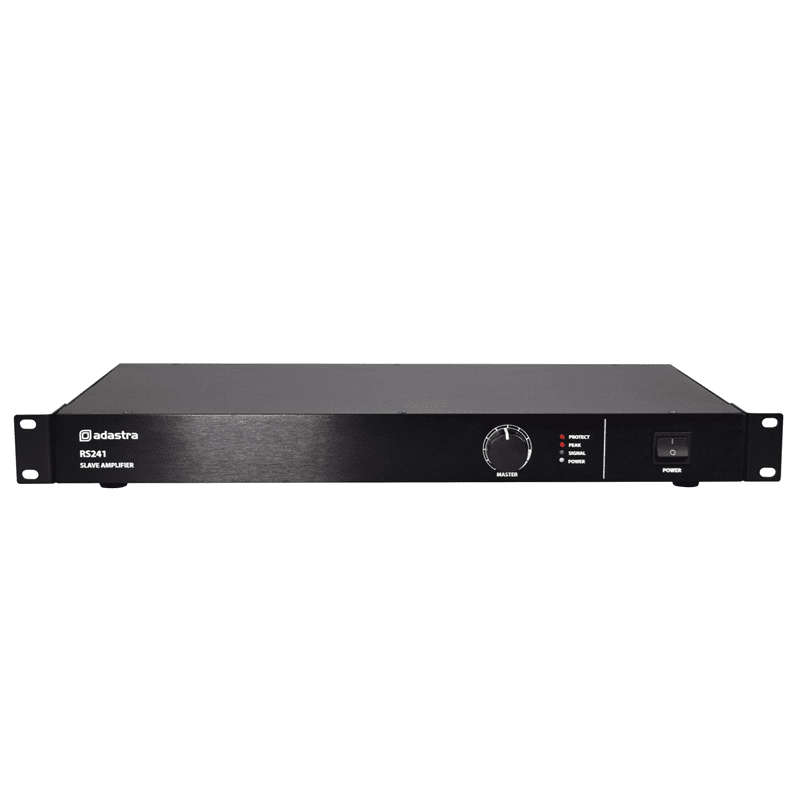

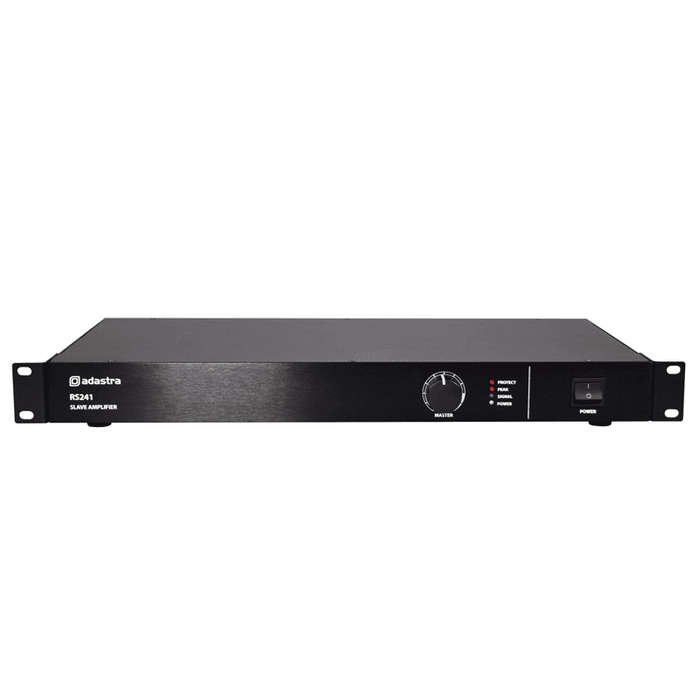

ADASTRA RS241 100V SLAVE AMPLIFIER 240W

High power class-D 100V line slave amplifiers in a rack-mountable housing. Slave inputs accept standard line level audio from a mixer or RM series mixer amplifier. Slave outputs can be cascaded onto further RS slaves to build larger systems. All line level inputs are connectable via RCA sockets or hard-wired via removable screw terminals. A further removable screw terminal is provided for 100V input, which enables the RS series slave amplifier to extend an existing 100V installation by connecting directly to the 100V speaker feed, or indeed from a long distance 100V feed using standard double-insulated cable. A 24V terminal is provided for connection to a security or alert panel to mute the output if required during alarm triggering. Speaker outputs are either 100V or low impedance (switchable on RS121 and RS241) which is stable down to 2 Ohms, enabling multiple low impedance speakers to be connected if preferred. Designed to power medium to large installations from a mixer output or to expand existing systems.

Fuse rating: T1A

Output power: rms: 240W

Dimensions: 433 x 267 x 44mm

Weight: 5.8kg

Power supply: 175-264Vac 50Hz (IEC)

Input signal: Slave line in (RCA/screw terminal), 100V in (screw terminal)

Output : signal: Slave line out (RCA/screw terminal)

Outputs : speaker: 100V or 2 Ohms min. (screw terminals)

Controls: Master volume

Mute: 24V alarm contacts (screw terminal)

THD: <1.0%
