Adastra - UA30 ULTRA COMPACT MIXER-AMPLIFIER 100V 30W
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information

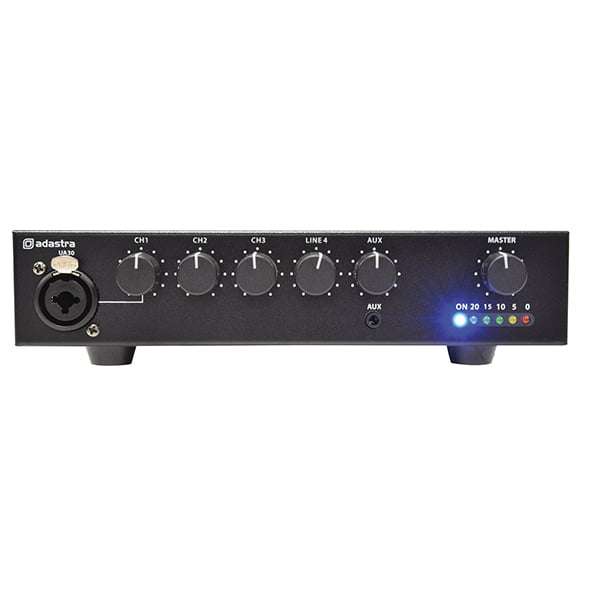

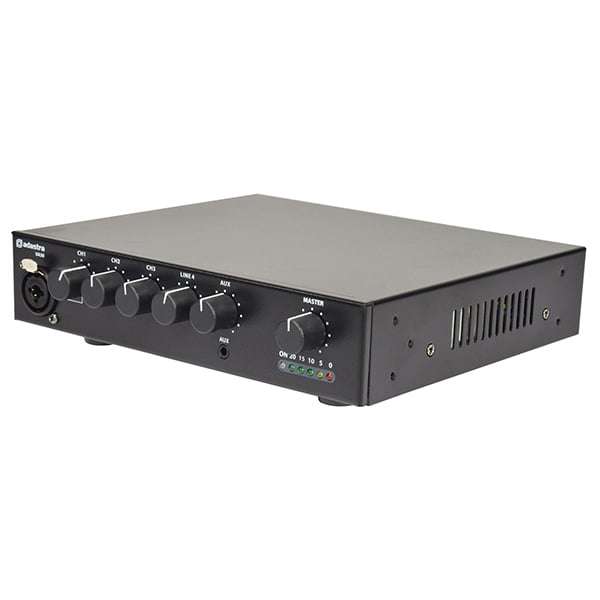

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.
Power supply: 170-264Vac, 50Hz (IEC)
Amplifier construction: Class D + transformer output
Inputs: Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Phantom power: +20V CH1 (XLR or rear terminals)
Line output: 2 x RCA (mono)

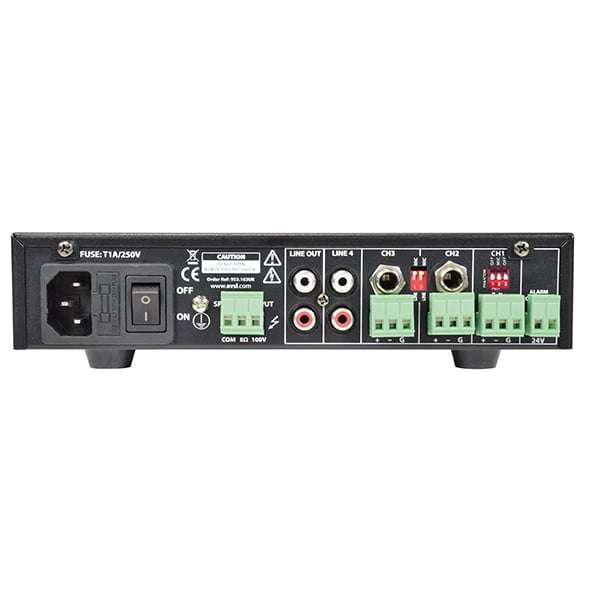

Speaker output: Euroblock terminals: 100V / 8 Ohms / Com
Mute: 24V relay contacts
THD:
