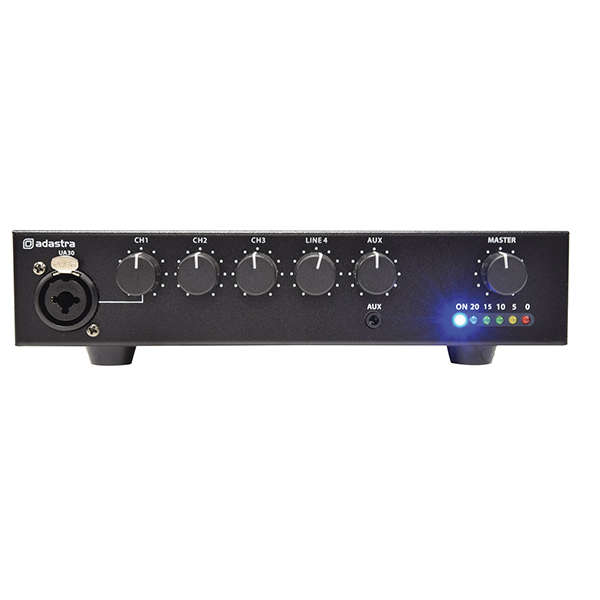

Adastra - Ua30 Ultra Compact Mixer-Amplifier 100V 30W

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

FEATURES:

• Supplied with hardware for rack-mounting 2 units
• 5 input channels
• 24V fire alarm mute contacts
• 100V line or 8 Ohms operation
• Switchable +20V phantom power CH1

SPECIFICATIONS:

• Power supply: 170-264Vac, 50Hz (IEC)
• Amplifier construction: Class D + transformer output
• Inputs: Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
• Phantom power: +20V CH1 (XLR or rear terminals)
• Line output: 2 x RCA (mono)
• Speaker output: Euroblock terminals: 100V / 8 Ohms / Com
• Mute: 24V relay contacts
• THD: <0.4% @ 1kHz
• Input impedance: 1k Ohms (mic/line)
• Input sensitivity: -10dB (line), -45dB (mic)
• SNR80dB: k (line), 75dB (mic)
• Frequency response: 100Hz - 18kHz
• Output power rms: 30W
• Dimensions: 269 x 210 x 44mm
• Weight: 2.35kg
