ADASTRA UA90 100V MIXER AMPLIFIER 90W

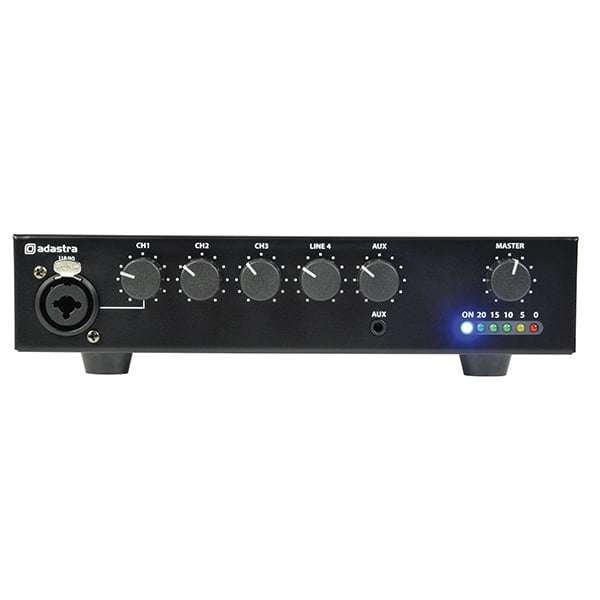

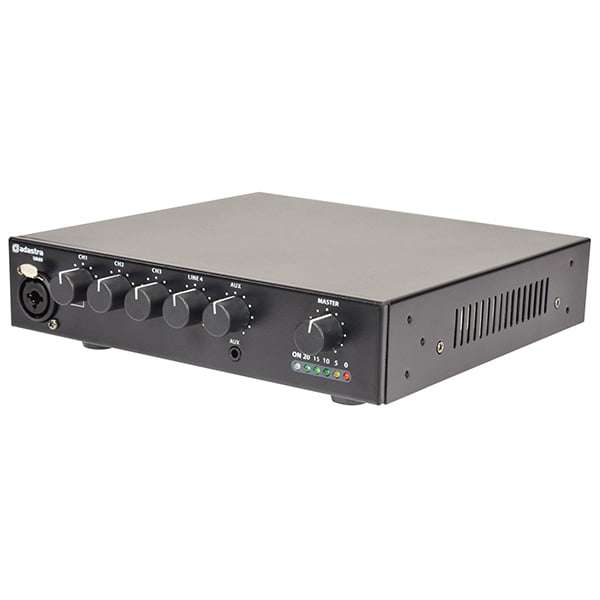

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

Power supply: 170-264Vac, 50Hz (IEC)

Amplifier construction: Class D + transformer output

Inputs: Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)

Phantom power: +20V CH1 (XLR or rear terminals)

Line output: 2 x RCA (mono)

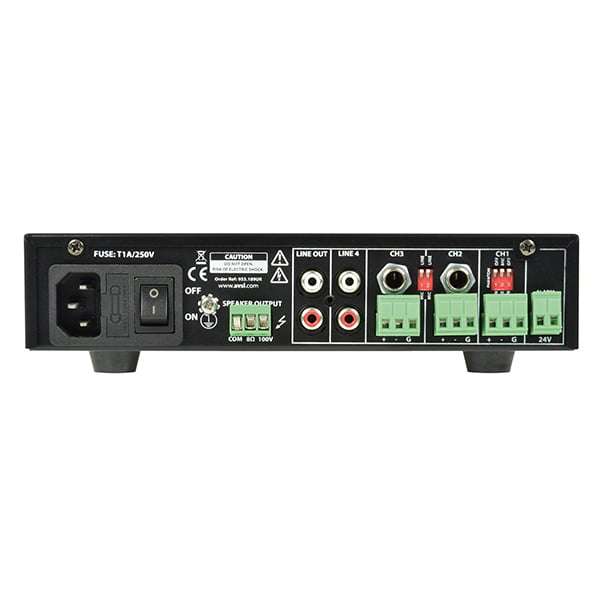

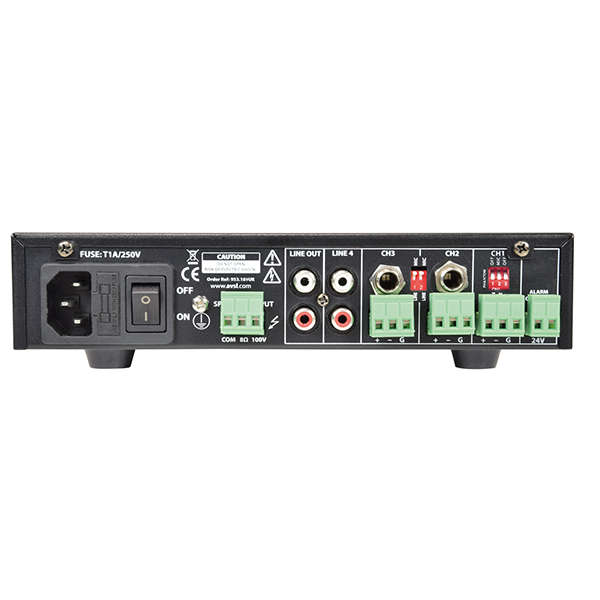

Speaker output: Euroblock terminals: 100V / 8 Ohms / Com

Mute: 24V relay contacts

THD:
