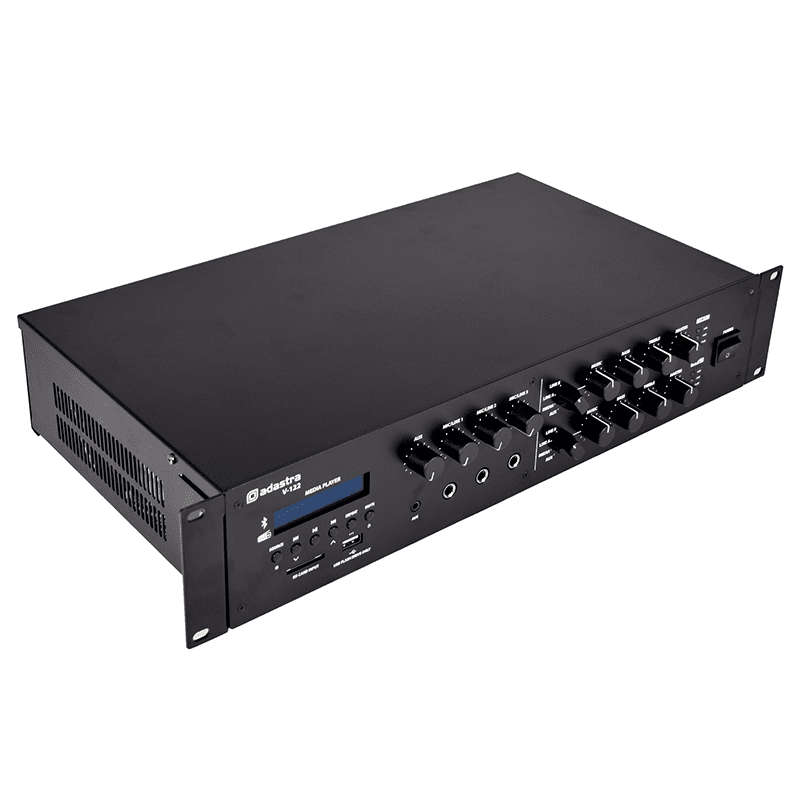

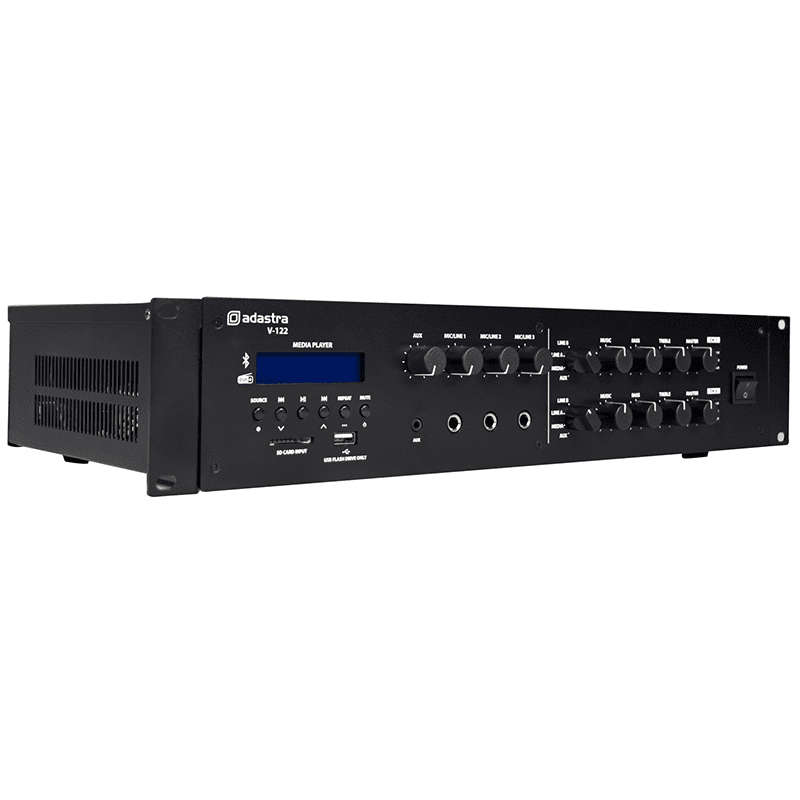

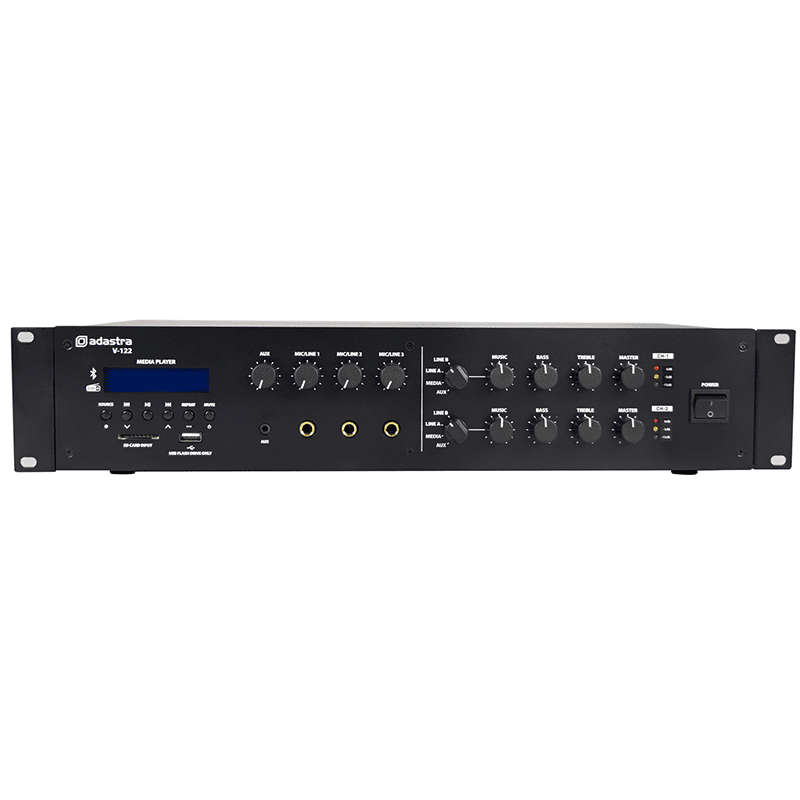

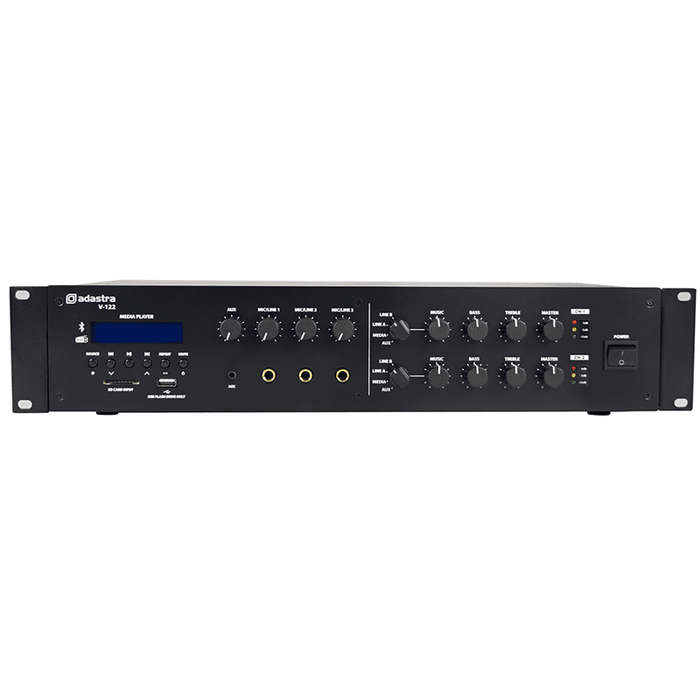

ADASTRA V-122 100V MIXER AMPLIFIER 2x 120W USB/BT/FM/DAB+

Fully-featured mixer-amplifier with class-D amplifier section, delivering 100V or low impedance output to 2 independant public address zones. Featuring a built-in audio player with Bluetooth® and DAB+/FM receiver, along with a USB/SD mp3 player for flexible and convenient playback of music or spoken information. Inputs include 3 balanced mic/line channels, which are live to both zones at all times, with switchable phantom power and selectable priority for channel 1. Additionally, a rotary selector for each zone can switch between 2 unbalanced line inputs, an auxiliary line input or the internal audio player section. Speaker connections are provided on screw terminal blocks with options for 100V line or 4-8 Ohm low impedance loads. Each zone also has an unbalanced line output if further amplifiers are to be connected to expand the system. Multiple input connections and convenient playback options make this amplifier a complete problem-solver for installers and venue owners, providing flexible and dependable control for distributed audio in commercial and leisure environments.

Power output2 x 120Wrms

Weight6.76kg

Power supply170-264Vac, 50Hz (IEC)

Audio sourceDAB+/FM/USB/SD/BT audio player

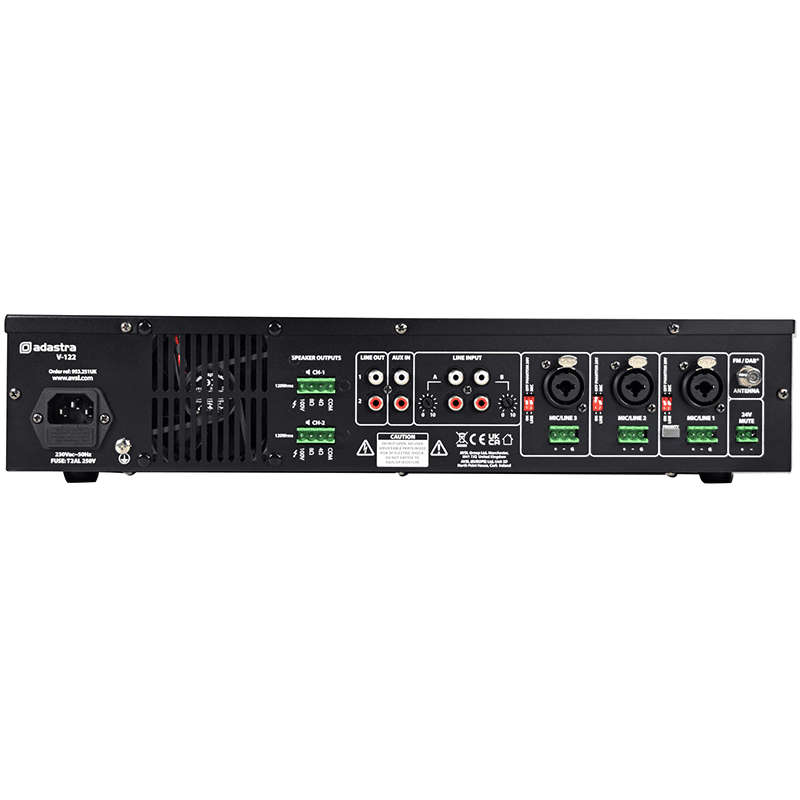

Inputs3 x mic/line (Jack/XLR/screw), 2 x line (RCA), Aux (RCA/3.5mm)

Zone outputs: line2 x RCA

Zone outputs: speaker2 x terminal outputs 100V/8 Ohms/4 Ohms/COM

Phantom power+20V switchable to XLR inputs

Input impedance1k Ohms (mic/line)

Input sensitivity-11dB (line), -46dB (mic)

THD<0.76% @ 1kHz

SNR84dB (line), 82dB (mic)

Bluetooth version5.0

Frequency response100Hz - 20kHz

Dimensions435 x 273 x 88mm (feet removed)
