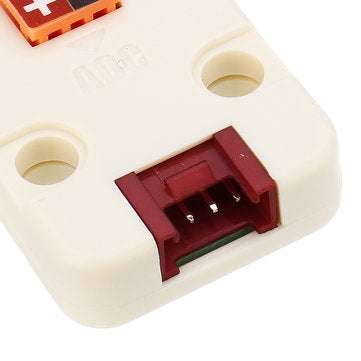

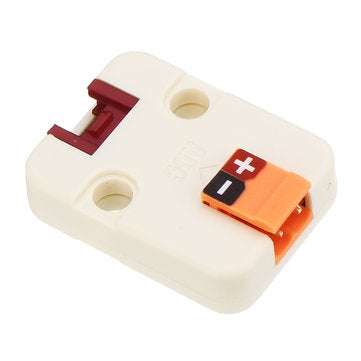

Description:

ADCintegrated with ADS1100 which is a fully differential, 16-bit, self-calibrating,del ta-sig ma A/D converter. It communicates through an I2C interface,which means you can collect AD data thru PortA on M5 core from this unit to enhence your A/D performance.

The I2C address is 0x48.

Product Specification:

  • COMPLETE DATA ACQUISITION SYSTEM IN A TINY SOT23-6 PACKAGE
  • 16-BITS NO MISSING CODES
  • INL: 0.0125% of FSR MAX
  • CONTINUOUS SELF-CALIBRATION
  • SINGLE-CYCLE CONVERSION
  • PROGRAMMABLE GAIN AMPLIFIER GAIN = 1, 2, 4, OR 8
  • LOW NOISE: 4Vp-p
  • PROGRAMMABLE DATA RATE: 8SPS to 128SPS
  • INTERNAL SYSTEM CLOCK
  • I2CTM INTERFACE
  • POWER SUPPLY: 2.7V to 5.5V
  • LOW CURRENT CONSUMPTION: 90A
  • AVAILABLE IN EIGHT DIFFERENT ADDRESSES
  • Two Le go-compatible holes
  • Product Size: 32.5mm x 24.1mm x 10.2mm
  • Product weight: 5.9g

APPLICATION:

  • ECG signal acquisition
  • Blood pressure measurement
