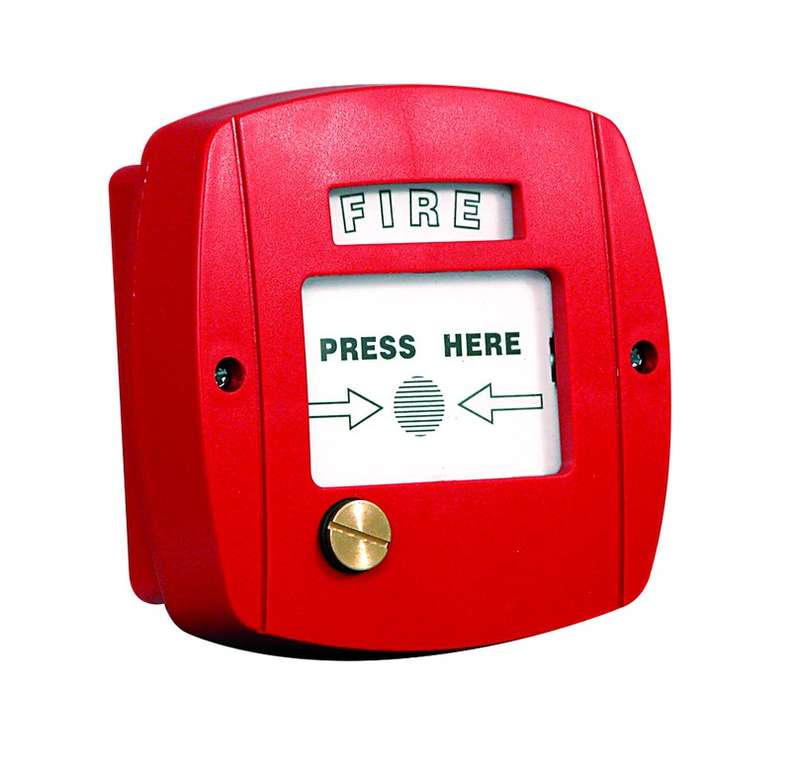

ADDRESSABLE FIRE DETECTION CALL POINT

BSR-5036/A

BSR-5036/A is a addressable manual call point which activates the fire detection panel.
It co-operates with BSR-1116 and BSR-2100 series panels.
It is essential for it to exist in co-operation with the detectors. At least one button has to be
placed in every fire detection system, near to the main control panel.
By pushing the clear plastic cover, the button activates the alarm system. The clear plastic
cover does not brake but can be reset to its original position with the special plastic key
which is included in the package. With this way you can test a specific button as well
maintenance the fire detection panel.
In every fire detection system it is essential that you place one button besides the control
panel and the rest mainly in corridors and exits of the building.
It is mounted in a clearly visible spot, near at exit or ladder and at a height of 1,5 meters.
A red coloured LED that blinks periodically in standby detection mode, is a power
indication LED and indicator for the good operation of the device. When a button issues
an alarm the LED lights. When we silence the sirens the LED remains lit to show us the
detector that issued the alarm.
The LED goes off when we RESET the panel.
Each button has an address with which it is recognized from the panel.
It is forbidden for two devices with same addresses to be connect to the same loop.
The back page contains all the available address settings which are done using the
dipswitch.
The panel references the buttons with the name CALL POINTS
Certification
The addressable manual call point BSR-5036/A is certified from EVPU.
