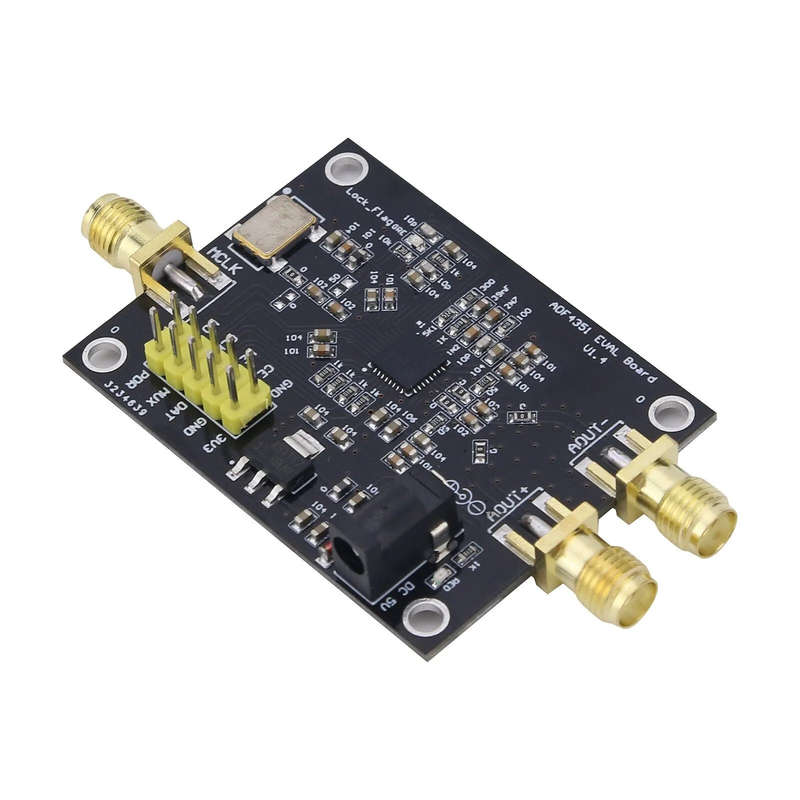

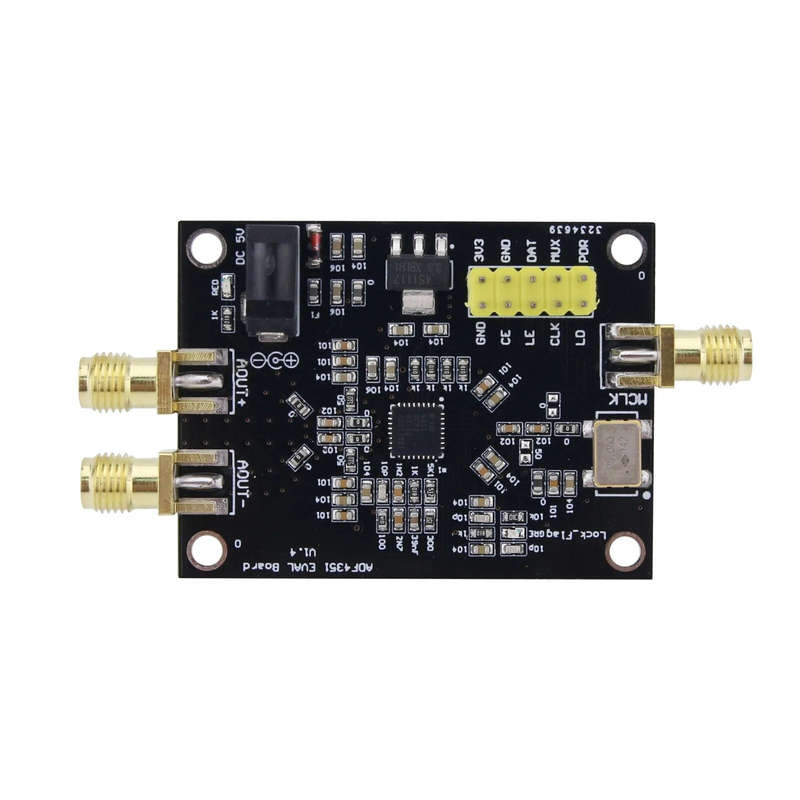

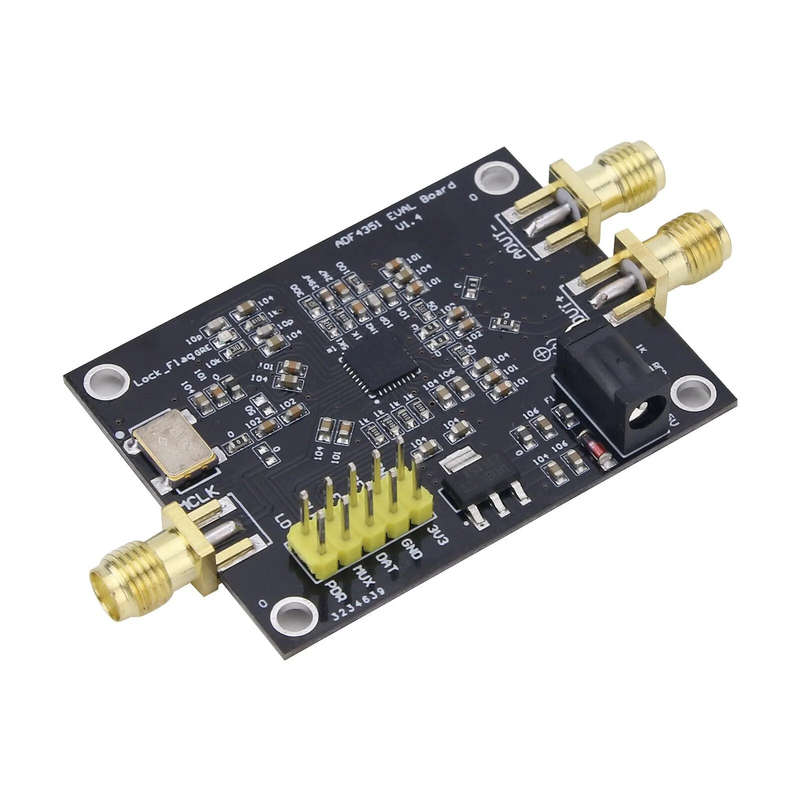

Description:The core chip uses ADF4351, which is optimized according to the official principles and has extremely high power flatness within the entire module working frequency band.Parameters:
>>>Manual: Click here to open<<<Output frequency range: ADF4351:35M-4400M(4.4G)Output signal: 2200M-4400M fundamental wave (sine wave) 35M-2200M fundamental wave frequency division (wave square)Output signal interface: SMA femaleDefault +-50ppm 25M imported active crystal oscillator. Provides circuit diagram and STM32 test program in PDF format.Control method: three-wire SPI. Leads out control pin and lock status pin. All functions can be realized, including point frequency, frequency sweep and frequency hopping. T
