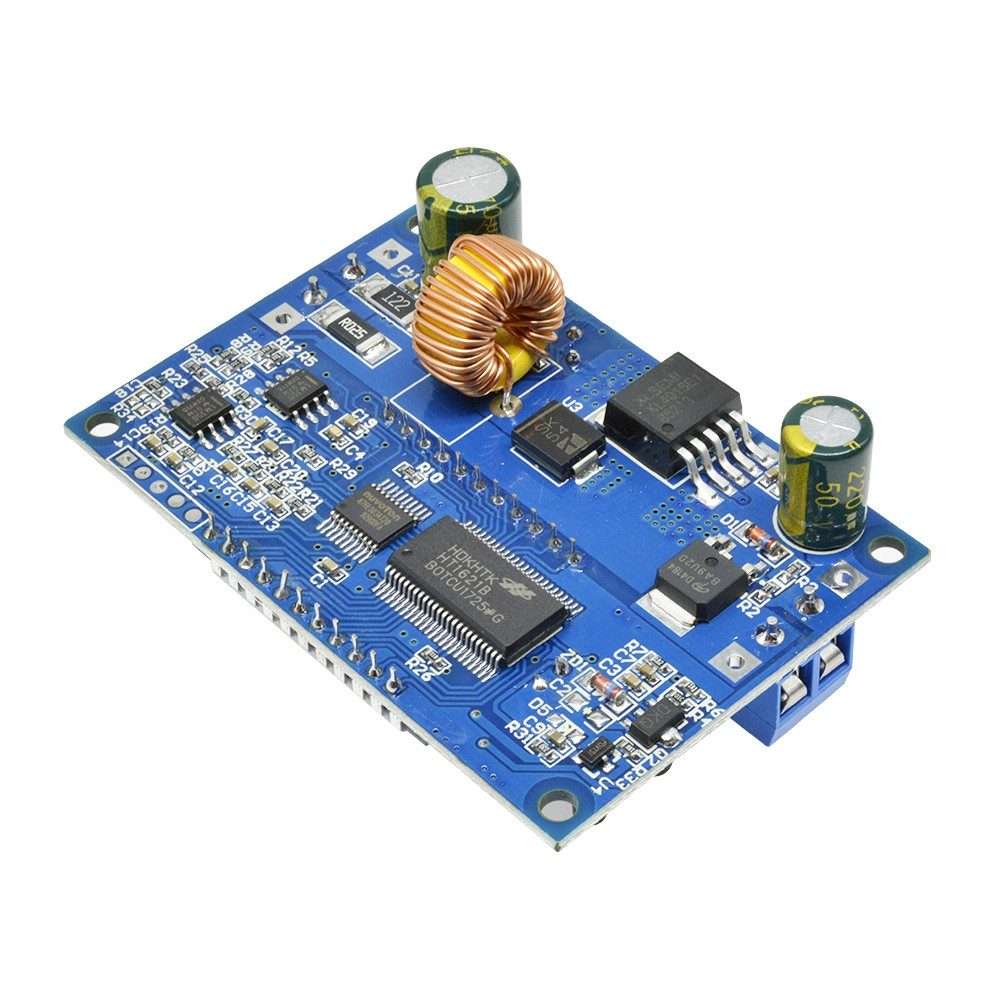

Selected model / variant: Adjustable Constant Voltage Constant Current Liquid Crystal LCD Multi-Display(PCB)
1. Input voltage: 6.5-36V (the input voltage is lower than 6.5V, the current accuracy is inaccurate, and the LCD display is abnormal if it is lower than 5.5V)
2. Output voltage: 1.2-32V, the default output is 5V step-down type, the output voltage can only be lower than the input voltage, and the voltage difference is more than 2V
3. Output current: It can work stably at 3.5A for a long time, and it can reach about 4.5A with fan enhanced heat dissipation (adjustable limit current can reach about 4.2-4.5A)
4. Output power: natural heat dissipation 50W (within 3.5A), plus fan to enhance heat dissipation 75W
5. Voltage display: resolution 0.05V, range 1.2-32V
6. Current display: resolution 0.005A, range 0-4.5A
7. Conversion efficiency: about 94%, depending on the voltage difference and current efficiency
8. Working current: about 30mA
9. Input reverse polarity protection: yes
10. Anti-backflow at the output: no (if charging the battery, first power on the module and then connect the battery, and ensure that the battery voltage is lower than the output voltage; if possible, connect an anti-backflow diode in series with the output positive pole)
11. Short circuit protection: yes

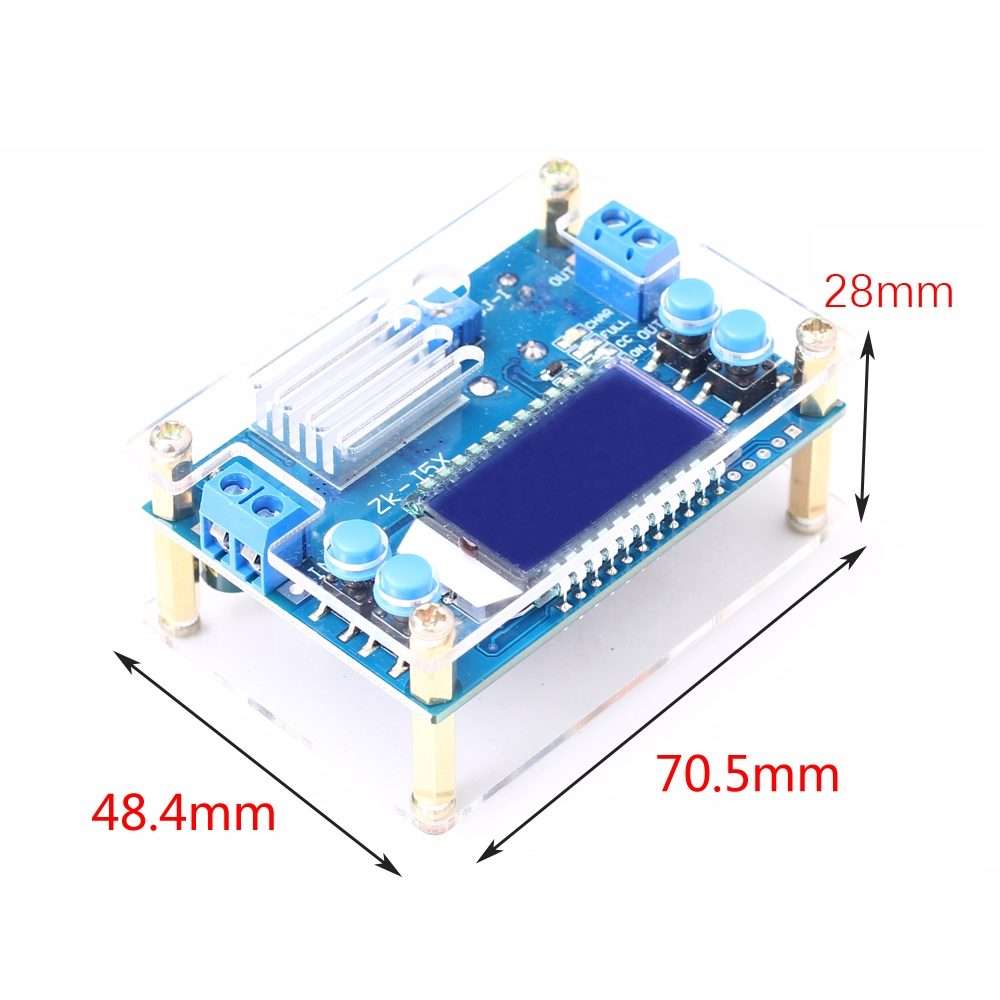

12. Size: about 70.5x48.4x28mm
13. Weight: about 65g
Features:

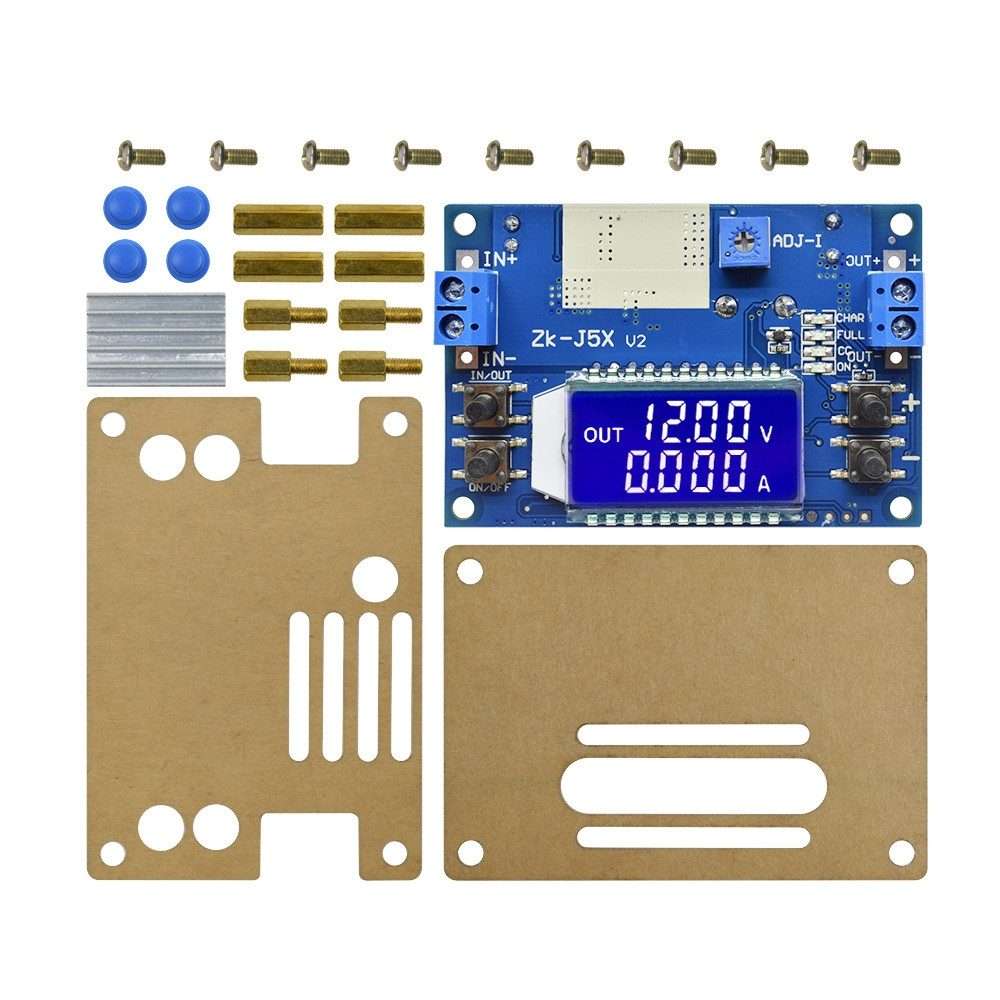

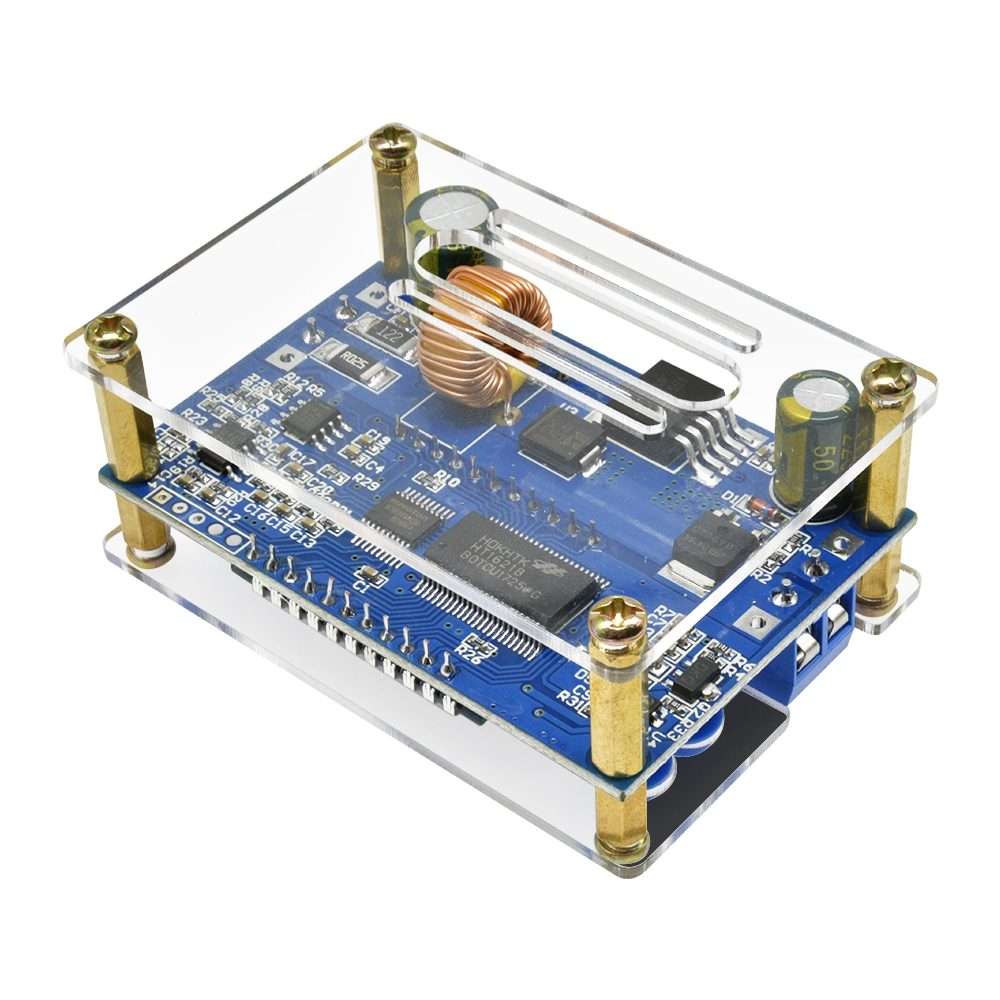

1. Crystal shell, beautiful design, good touch texture of buttons, and output voltage set by button
2. The button can control the output to turn off and on, and can set the power-on default to ON or OFF

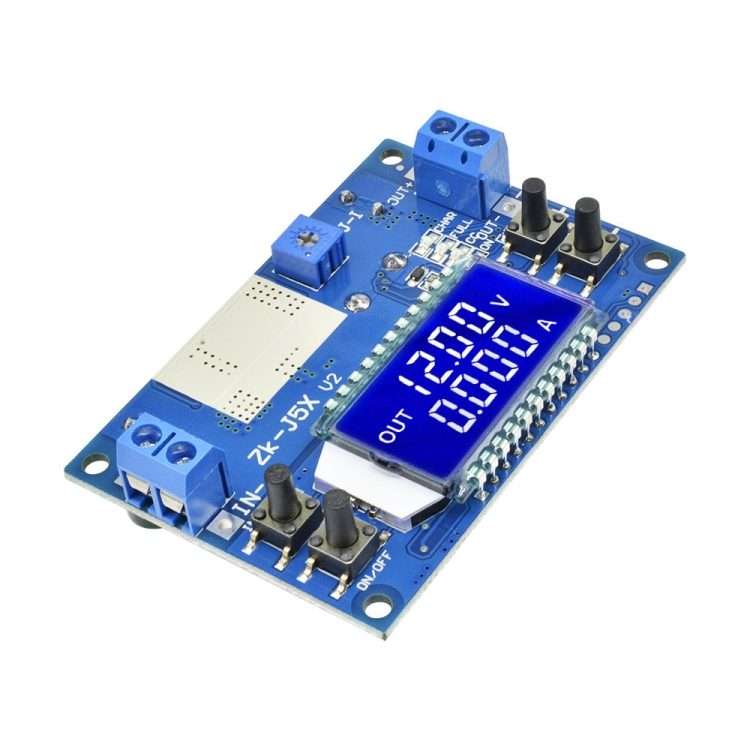

3. LCD can display input and output voltage, output current and output power
4. The input terminal is protected against reverse connection, and the reverse connection will not burn
5. High efficiency, high current, low heat generation, constant current value can be adjusted around 0-4.5A, suitable for office power supply, high-power LED constant current drive, lithium battery charging, etc.

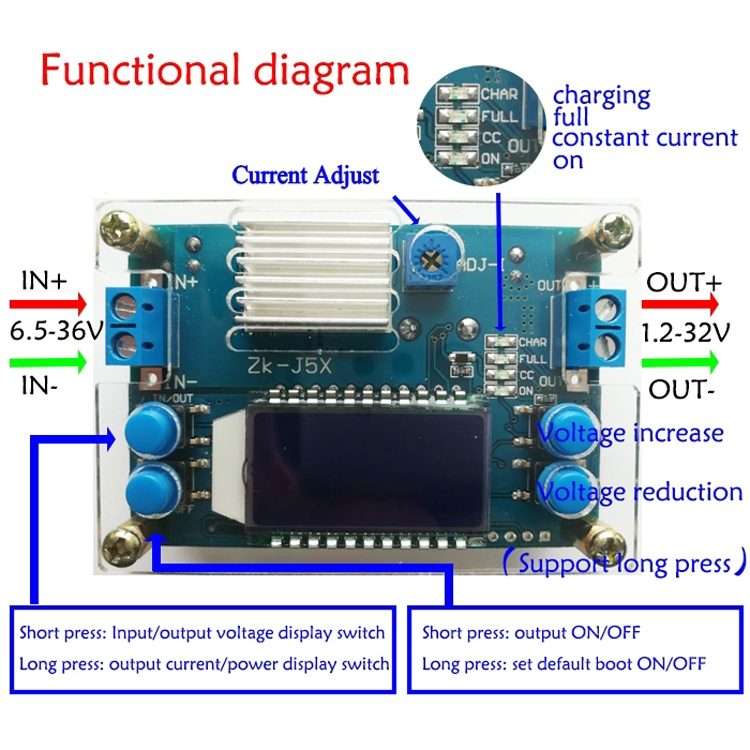

Function Description:

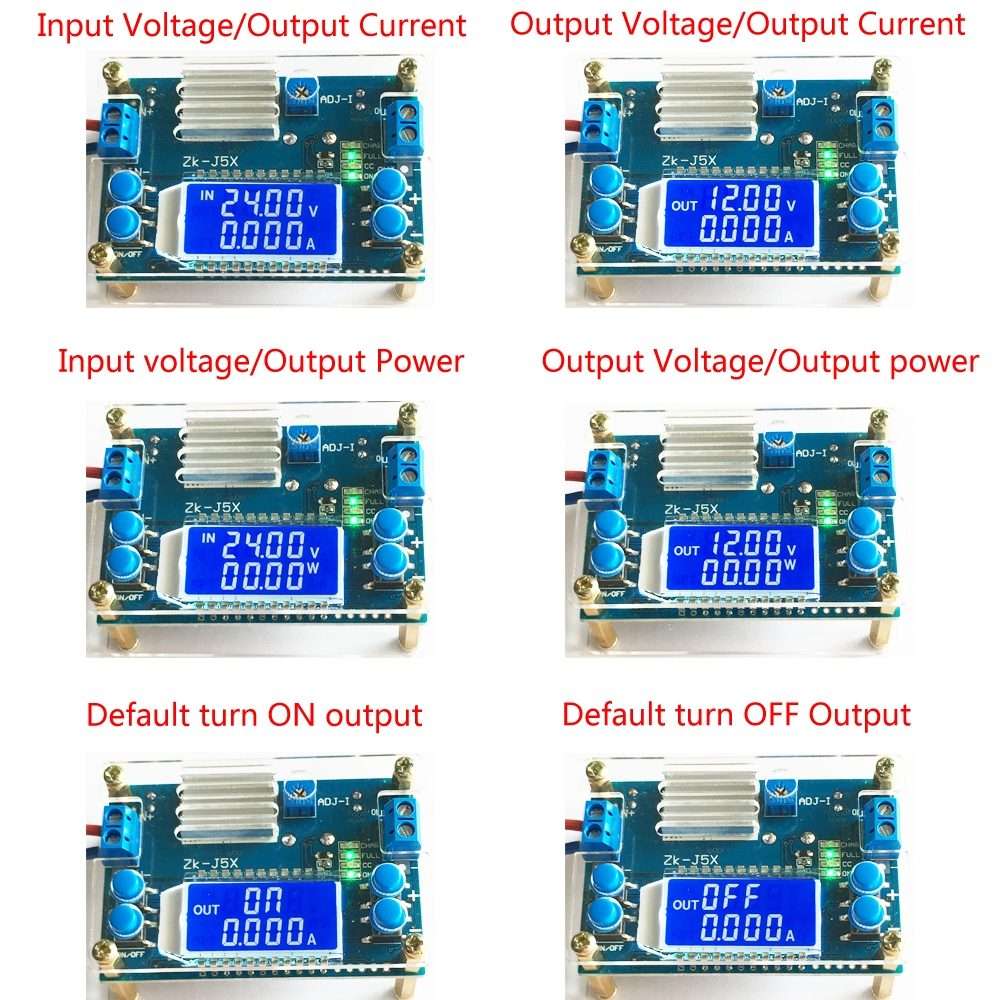

1. There are IN/OUT and ON/OFF buttons on the left side of the module: the IN/OUT button switches the display of input voltage and output voltage, long press to switch the display of output current and output power; the ON/OFF button controls the output ON or OFF, long press Press to set the default output state is ON or OFF at the next power-on
2. There are +/- two buttons on the right side of the module: + button press the output voltage to increase 0.05V, long press to continuously increase, and then long press to continuously increase 0.1V, 1V in slow steps; - button press the output voltage Decrease 0.05V, long press to continuously decrease, and then long press to continuously decrease 0.1V, 1V in slow steps
3. ADJ-I is the current setting potentiometer. Turn clockwise to increase the set current. When the load current reaches the set current, it enters the constant current state, and the CC constant current indicator (red) lights up. The OUT indicator is the output status indicator, it is on when there is voltage at the output terminal, otherwise it is off; the CHAR indicator is the charging indicator, which is on when charging, and the FULL indicator is the full indicator. If the set constant current value is 2A, charging When the current reaches below 0.2A, turn the light, the FULL indicator is on, and the CHAR indicator is off
Instructions:
1. Use as an ordinary step-down module with overcurrent protection capability
- Press the button to set the output voltage to the desired voltage value
- Rotate the ADJ-I current adjustment potentiometer counterclockwise to the end, then measure the output short-circuit current with the 10A current range of the multimeter (connect the two test leads directly to the output terminal), and adjust the ADJ-I constant current potentiometer clockwise to make the output The current reaches the over
