Adjustable DC Regulated Power Supply Kit

Power supply kit  features:

• High-quality DC regulated power supply whose output voltage is continuously adjustable from 0 to 30V.
• Including a circuit to limit output current which enables output current to be continuously adjustable from 2mA to 3A.
• Provides current limiting.
• Overload and short circuit protection.
• Easy to install and maintain.

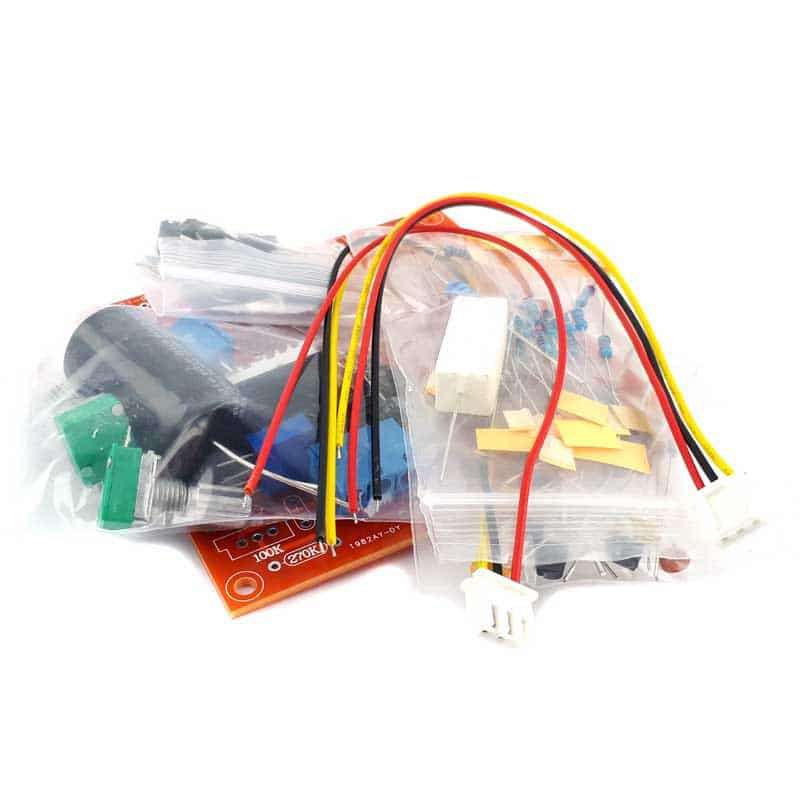

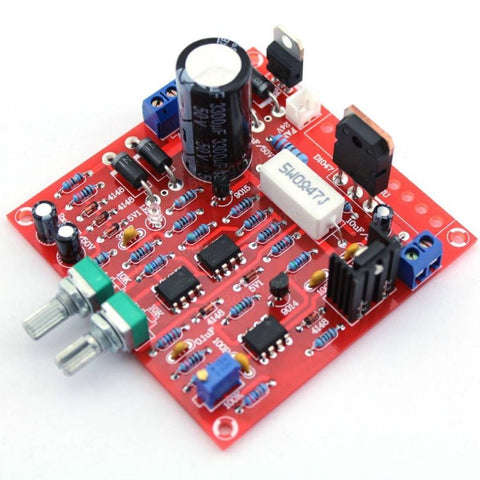

Note: This kit is not assembled but comes with the diagrams and everything to assemble it yourself. Below is a picture of how it will look once you assemble it.

Note: Please install the resistors and diodes according to PCB diagram. Make sure resistance values, diode models and installation direction are correct. Please install other components from small to large, low to high.

Manual: 201505080459530-30Vinstall

Power supply kit specifications:

Material: PCB
Colour: Red
Input Voltage: 24V AC
Input Current: Max 3A
Output Voltage: 0-30V (continuously adjustable)
Output Current: 2mA-3A (continuously adjustable)
Output Voltage Ripple: Max 0.01%
Assembled Item Size: 9 x 8.5 x 3.5cm
Package Size: 15 x 11 x 2cm
Package Weight: 86g
