Adjustable Over Voltage Current and Under Voltage Protective Device Protector Din

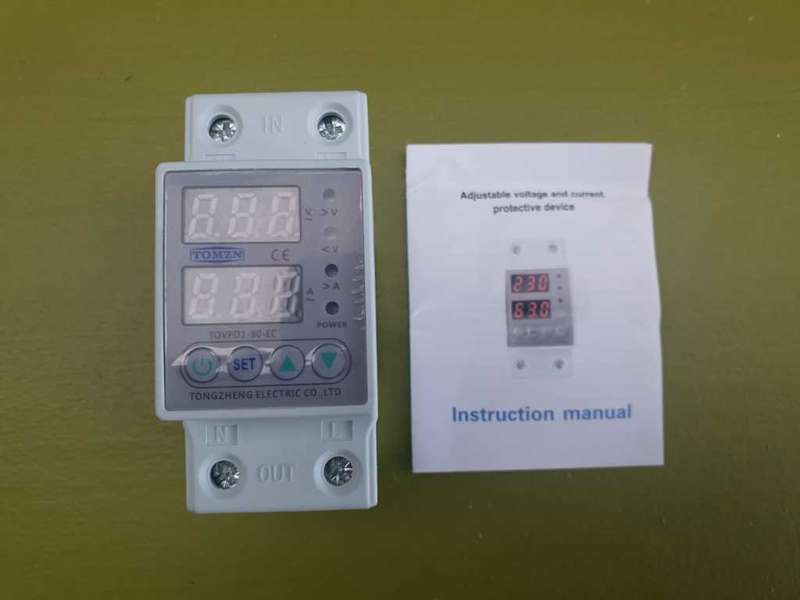

Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 80A 230V

Protects devices down the line from Brown outs and Over voltage. Amperage can also be set so as to protect against over current draw.

Protects fridges, Audio Visual equipment etc.

Functions:

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

5.Voltage display(voltage measurement)

6.Current display (current measurement)

7. Voltage calibration: Voltage +-10% adjustable. A13

8. Restore factory settings: press the down button for more than 12s

9.Fault inquiry: Press the UP button from more than 12S

Product Parameters:

1.Model number:TOVPD1-80-EC

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:1~40A  Adjustable(default:40A)

                                    1~63A  Adjustable(default:63A)

4.Over-voltage protection value range:230V~300~OFF(default:270V)

 Over-voltage recovery voltage range:225V--295V(default:250V)

   Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage recovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V)

 Under-voltage recovery voltage range:145V--215V (default:190V)

   Under-voltage protection action time:0.1s~30s(default:0.5s)

   Under-voltage recovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A)1-63A (default:40A)

   Over-current action range:0.1~30 second (default:0.5s)

Over-currentrecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

9.Power consumption : <2W

10.Electric machinery life : 100,000 times

11.Installation:35mm DIN rail
