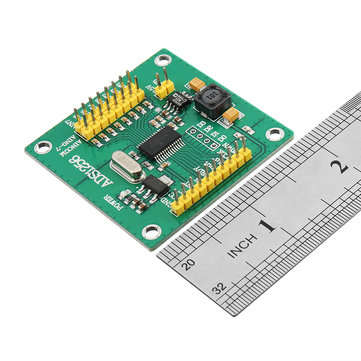

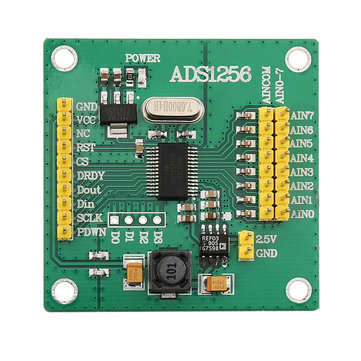

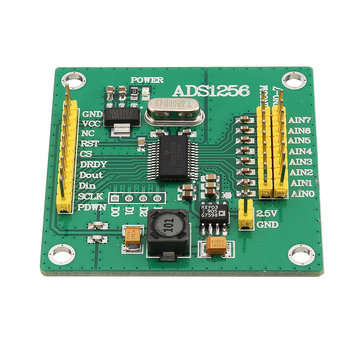

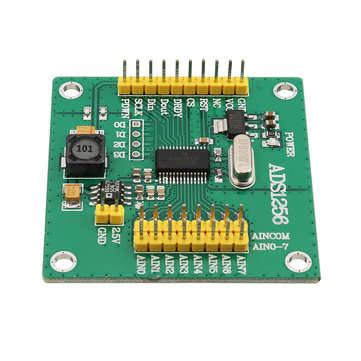

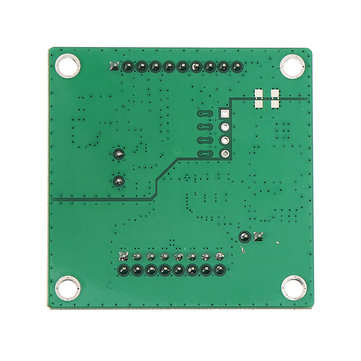

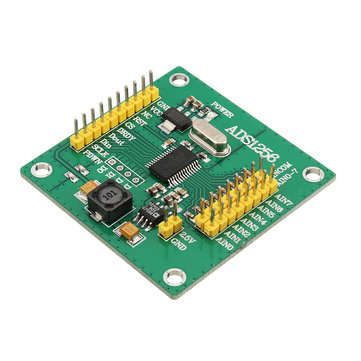

ADS1256 High-precision ADC Module Conversion 24-bit 8-channel

Description:
?
This is an expansion board for the Raspberry Pi A + / B + / 2B / 3B with an 8-channel 24-bit precision ADC and a 2-channel 16-bit precision DAC.
Raspberry Pi GPIO interface without AD / DA function, if you want to use high-precision AD / DA, then it will be a good choice!
?
Features:
?
Onboard ADS1256 chip, 8-channel 24-bit precision ADC (4-channel differential input), 30ksps sampling rate
On-board DAC8532 chip, 2-channel 16-bit high-precision DAC
On-board pin package input interface, access to analog signals, compatible with micro-snow sensor interface standard, easy access to a variety of analog sensor module
On-board terminal package input and output interfaces, access to analog signals and digital signals for easy use in a variety of occasions
Comes with AD / DA detection circuit, easy to observe the experimental phenomenon.
?
Package included:
?
1 x ADS1256 High-precision ADC Module
