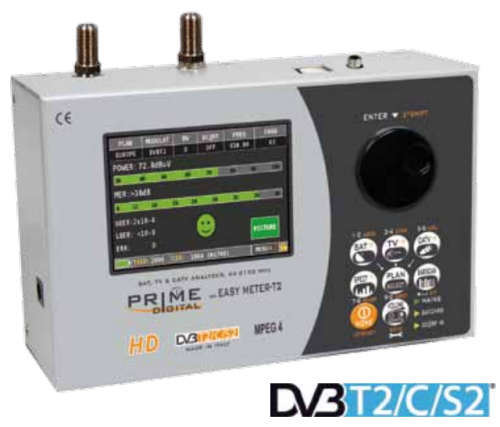

ADVANCED DSTV AND MORE SATELLITE SIGNAL FINDER/METER - Prime Digital Easy Meter T2

Advanced programmable SAT, TV & CatV Analyzer / Meter.

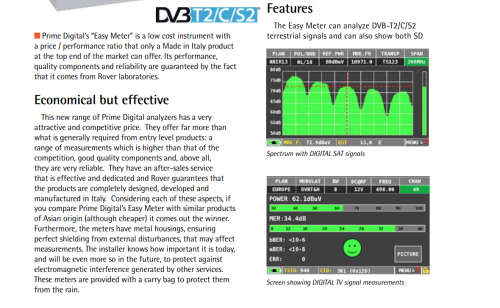

The Easy Meter can analyze DVB-T2/C/S2 terrestrial signals and can also show both SD and HD pictures.

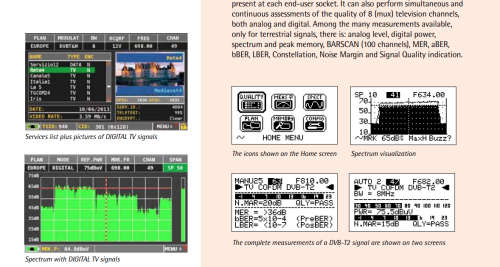

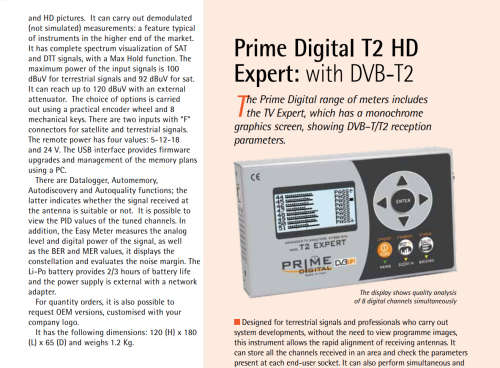

It can carry out demodulated (not simulated) measurements: a feature typical of instruments in the higher end of the market. It has complete spectrum visualization of SAT and DTT signals, with a Max Hold function. The maximum power of the input signals is 100 dBuV for terrestrial signals and 92 dBuV for sat. It can reach up to 120 dBuV with an external attenuator. The choice of options is carried out using a practical encoder wheel and 8 mechanical keys. There are two inputs with F connectors for satellite and terrestrial signals. The remote power has four values: 5-12-18 and 24 V. The USB interface provides firmware upgrades and management of the memory plans using a PC. There are Datalogger, Automemory, Autodiscovery and Autoquality functions; the latter indicates whether the signal received at the antenna is suitable or not. It is possible to view the PID values of the tuned channels. In addition, the Easy Meter measures the analog level and digital power of the signal, as well as the BER and MER values, it displays the constellation and evaluates the noise margin. The Li-Po battery provides 2/3 hours of battery life and the power supply is external with a network adapter.

It has the following dimensions: 120 (H) x 180 (L) x 65 (D) and weighs 1.2 Kg
