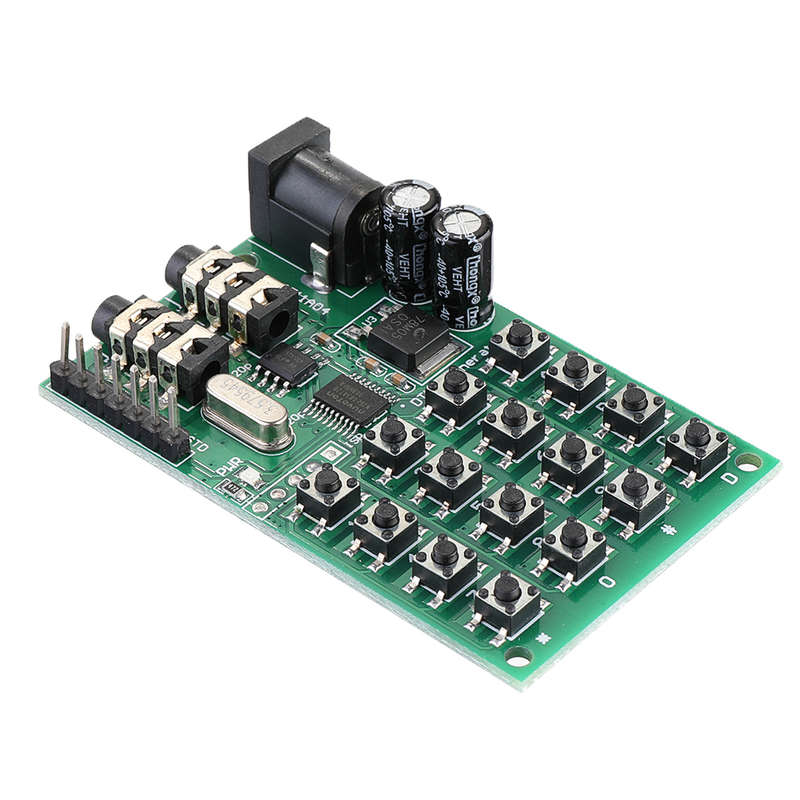

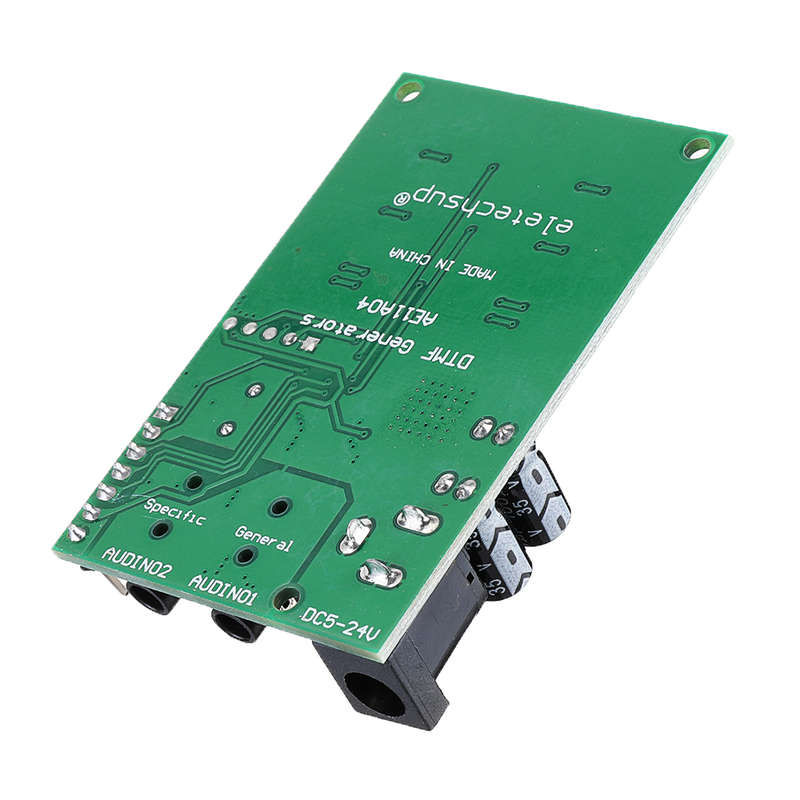

AE11A04 DTMF Audio Signal Generator Module Voice Dual Encoder Transmitter Board for MCU Keyboard 5 -

20 available / new

R475.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641116450

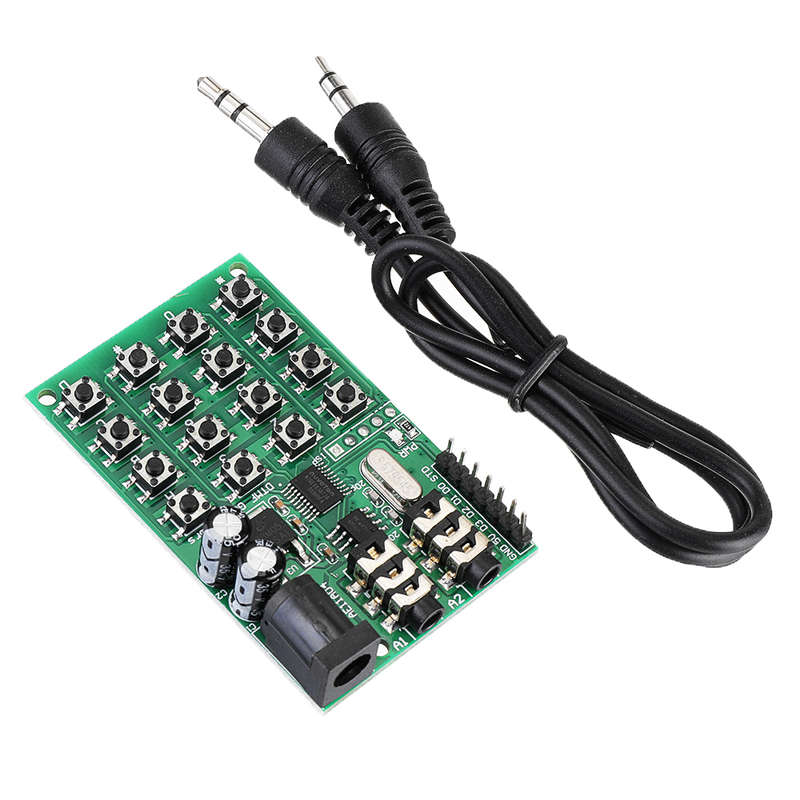

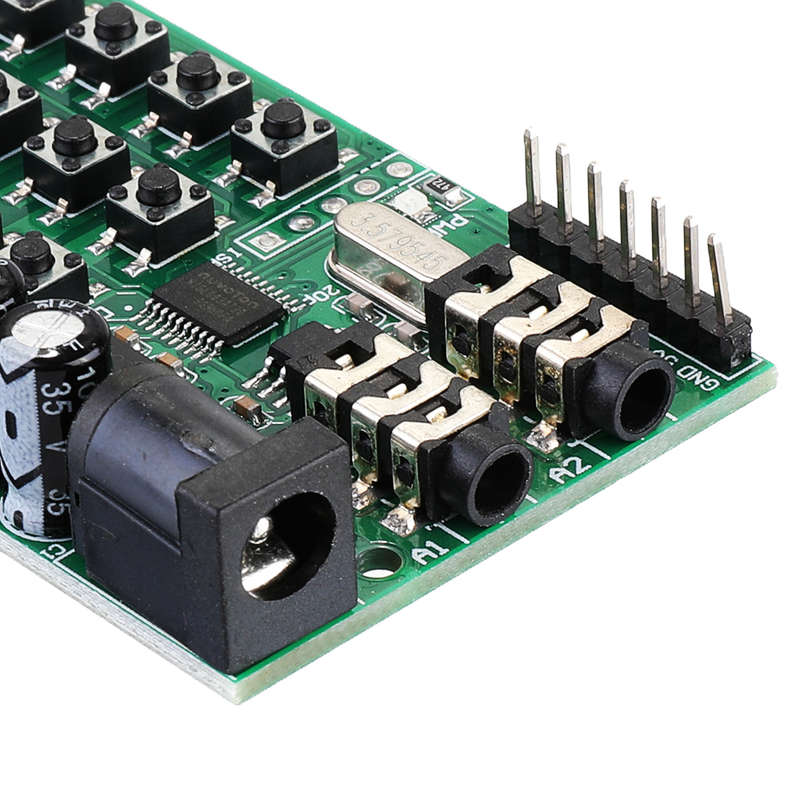

Features: - The module is designed for dialing keyboard and MCU interface. - The module can instruct MCU(or keyboard)to generate 16 dual tones from Audio 1/2. - The module equipped with two 3.5mm audio plug for same time using. - Wide voltage range,you can connect it with voltage from 5 - 24VDC. - There are 7 MCU input interface on the module. Specification: Working Voltage:5~24VDC Working Current:6~8mA Power Port:2.1*5.5mm Female head male head DC power socket Audio Port:2*3.5mm Audio Jack MCU Input Port: 7x 2.54mm Pin,5V GND D3 D2 D1 D0 STD Size:63 * 40 x 13mm Package Included: 1 x DTMF Generator Module 1 x 50cm Male to Male 3.5mm Audio Cord
