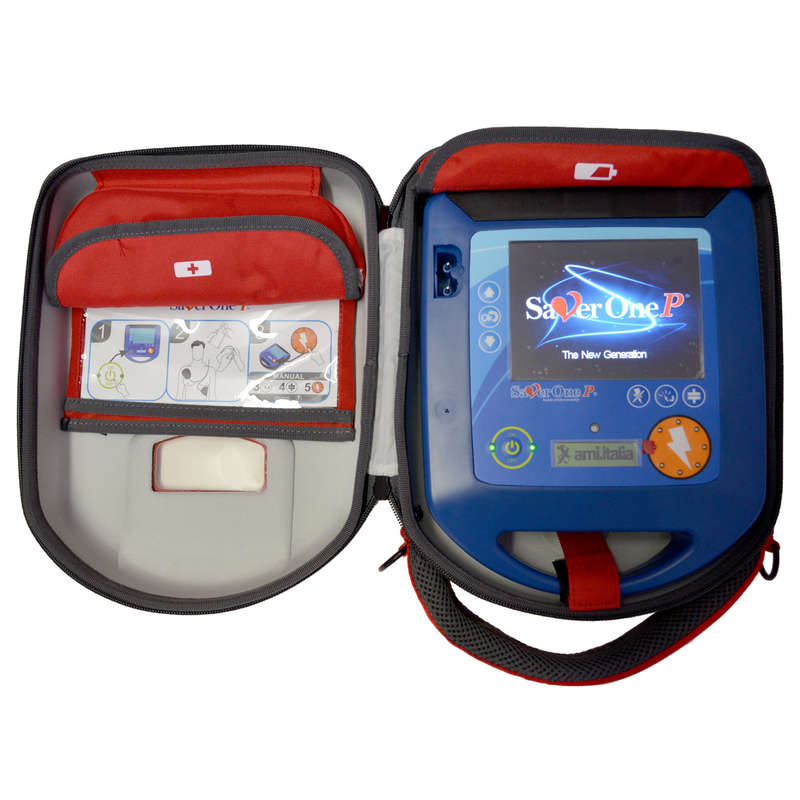

AED Saver One P Automated External Defibrillator

AED Saver One P Automated External Defibrillator

AED Saver One P Automated External Defibrillator

Defibrillator:
Operating Modes:

• AED Semi-Automatic Mode
• Manual Override Defibrillation Mode (Asynchronised and Synchronised)
• ECG Monitoring Mode

ECG Monitoring:
Operation: Through defibrillation pads or standard ECG electrodes attached to a separate reusable 2-Lead patient ECG lead
ECG Size: Automatic gain controlled by the display
Heart Rate: 30-300 bpm
Sweep Speed: 25 mm/sec
Screen: 5.7 TFT High Colour Display with detailed and comprehensive information, runs text and interactive graphics in tandem

Battery:
Type: Li-Ion Accumulator (rechargeable)
Recharging time: 2.5 hours with the charging station
Autonomy: 200 shocks at 200J or 14 hours of ECG Monitoring for a new fully charged battery

Pads Options:
Type: Disposable, pre-gelled and self-adhesive
Adult: Preconnected for patients >8 years or >25Kg
81 cm² conductive surface
Paediatric: For patient from 1 to 8 years old or <25Kg
31 cm² conductive surface
Cable length: 120 cm
Pad Shelf-Life: 30 months

Event Recording:
Internal memory: 128 MB
Memory capacity: 6 hours of audio, ECG and event recording
Optional memory: Removable SD card. Length of storage depends on card capacity: a 2GB card records up to 100 hours of data
Data recording: "AED1LOG" text file with detailed self-test activity
"AEDFILES" with complete recorded events
Event review: "Saver View Express" data management software
