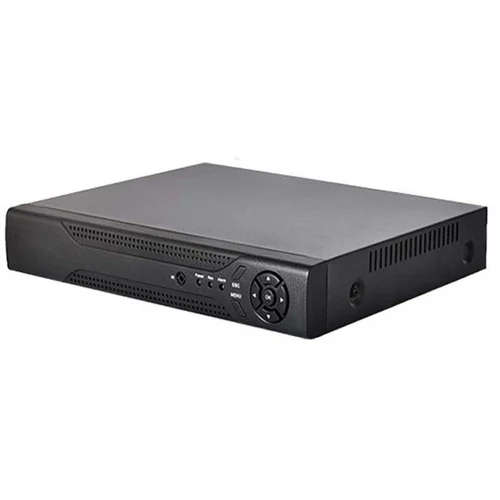

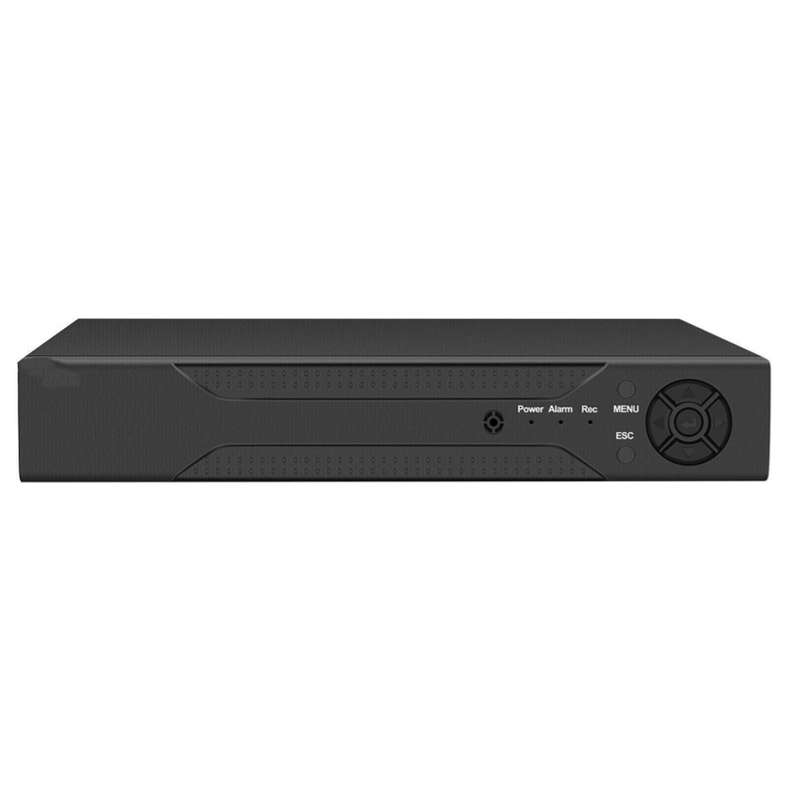

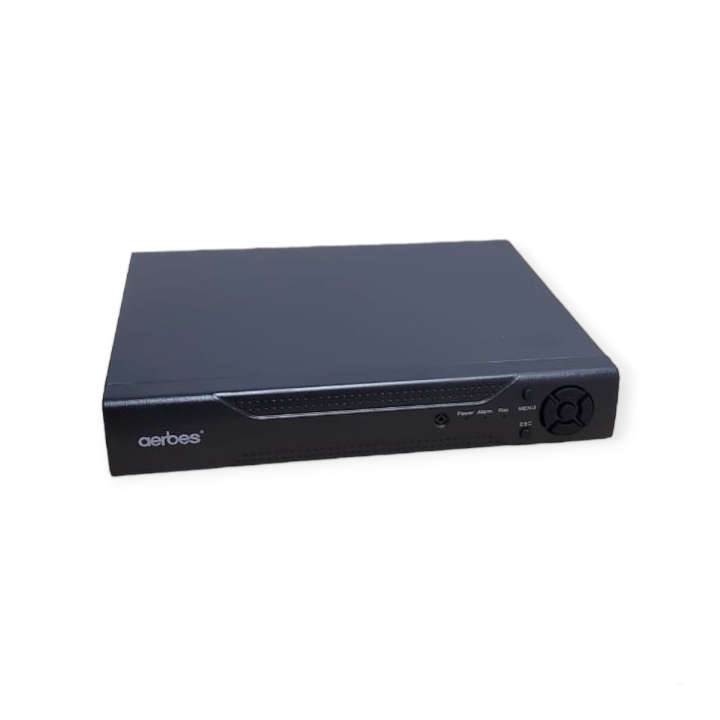

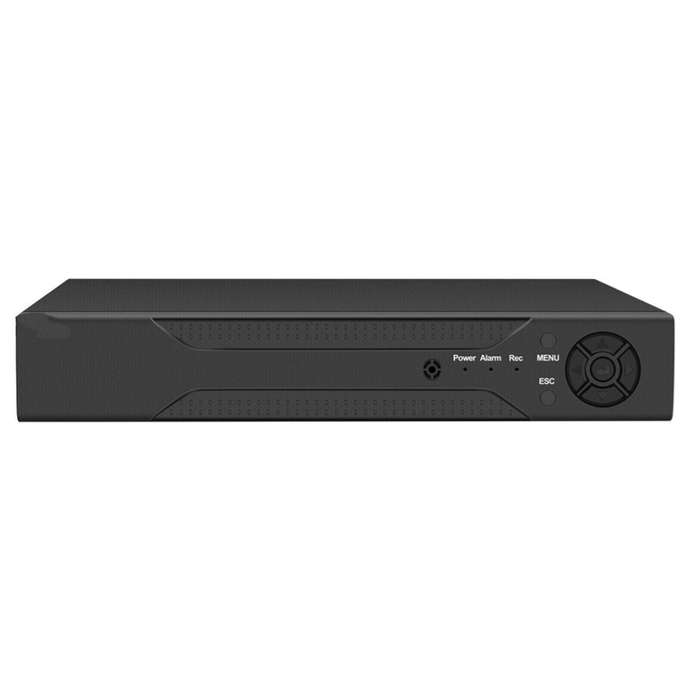

Aerbes AB-JK01 4 Channel DVR AHD Recorder Android And IOS Compatible 500W 1080P

-Consist of 4 channel AHD DVR video recorder for CCTV security system
-Support 4channel full 1080N/720P preview, record and playback in high definition (can connect up to HD 2000TVL CCTV analog camera)
-DVR/HVR/NVR 3-in-1 function, support both AHD camera and analog camera input.
-Onvif standard, also can be connected to Onvif IP camera for video record.
-Multiple ways to access on the PC, phone/pad and browser via softwares on CD
-Support motion detection record and email alarm notification.
-Plug and play use, no need any complex installation.
-Processor: Hi3520D chip
-Operating System: Embedded Linux System
-Menu Display: 1/4 Screen
-Signal System: PAL/NTSC
-Frame Rate: 1-25fps (PAL), 1-30fps (NTSC)
-Record Resolution: Full 1080N/720P/960H/D1
-Compression Format: H.264
-HDD Capacity: 1TB, 3.5in SATA3.0 port
-Analog Input: 4*1080N/720P/960H
-Network Input: 8*1080P/720P, 12*960P
-Hybrid Input: 2*720P (analog) + 2*720P (IPC)
-Max Sync Playback: 4channel 1080P
-Record Mode: Manual/Scheduled/Motion Detection
-Pre Record: 0-30s; Post Record: 0-300s
-Region Cover: Support 4 areas block
-Digital Zoom: support; Dual stream: support

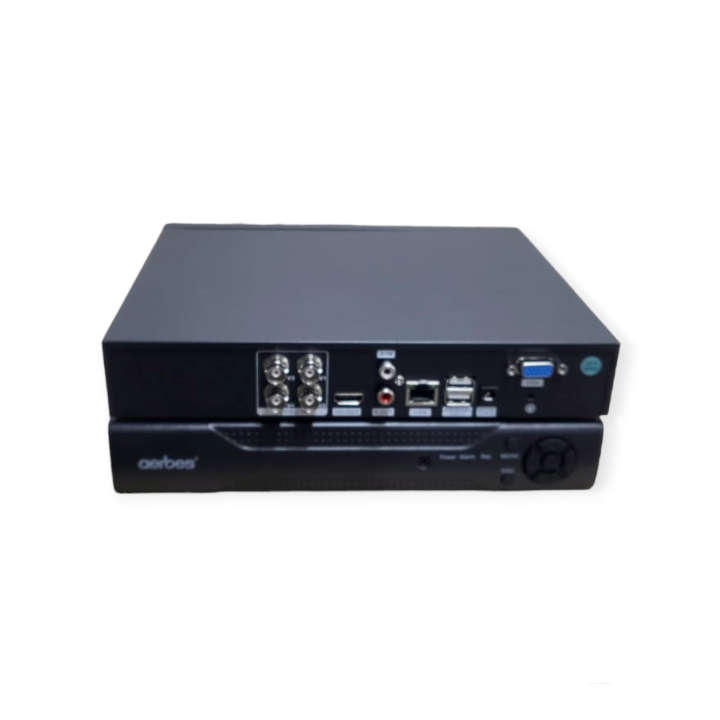

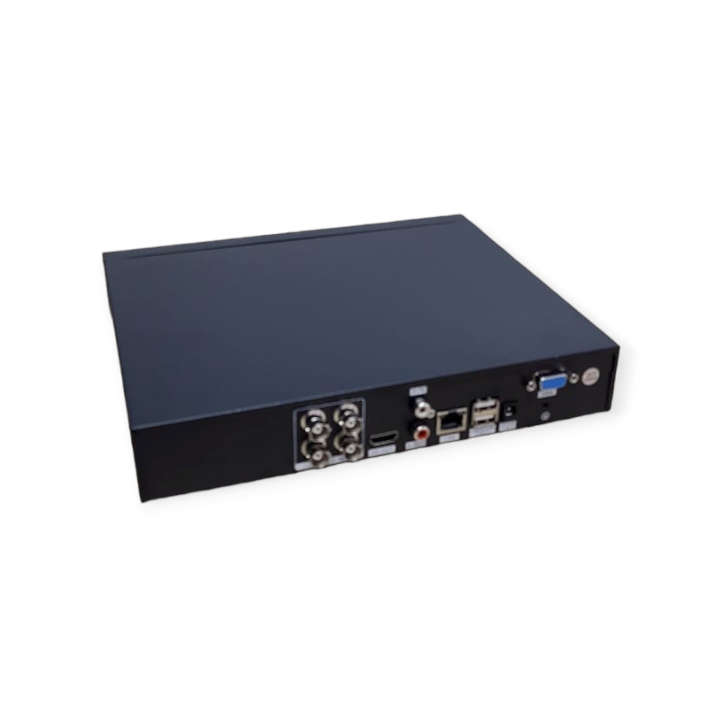

-Video Input: 4ch BNC; Video Output: 1ch HD/VGA
-Audio Input: 4ch RCA; Audio Output: 1ch RCA
-Network Protocol: Onvif, HTTP, DHCP, PPPOE, DDNS, SMTP, FTP, RTSP
-OSD Language: English, German, French, Spanish, Italian, Japanese, Portuguese, Russian, etc
-DVR Resolution: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
-Phone/Pad APP: support Android/iOS OS
-APP Name: XMEye (can download on APP store or Google Play)
-PC Software: support windows xp, win7, win8, win10, etc
-Browser: support IE, Safari, Chrome, Firefox, etc
-Online CD: www.cd-ipc.com (contain softwares and detailed E-manual)

Package Weight: 684g

Package Dimensions: 34cm x 7.4cm x 27cm

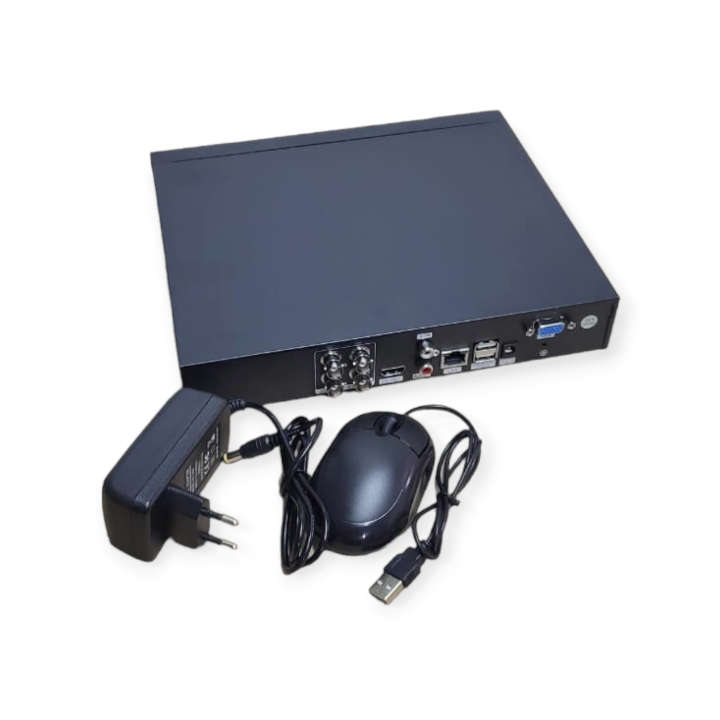

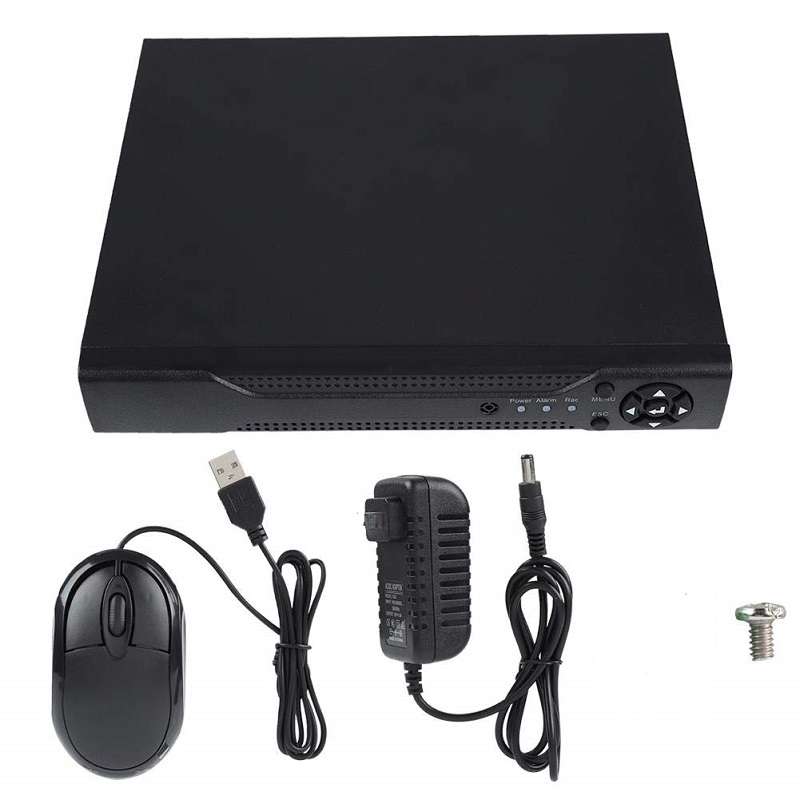

Package Includes:

1 x DVR Decoder
1 x Mouse
1 x Manual
1 x Power Supply
1 x Pack Of Screws
