Description:

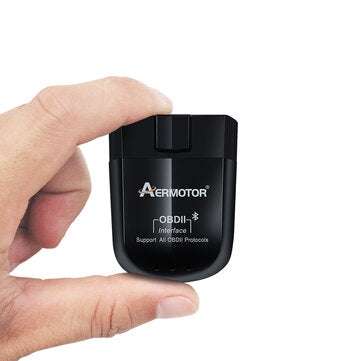

1. Aermotor ELM327 bluetooth 4.0 is a multi-functional and all-round high-tech electronic product for vehicles. Through the interface with the vehicle ECU computer and data synchronization, it can realize the monitoring and understanding of the vehicle`s whole body electronic control system;
2. The internal functions of the vehicle can be set through the on-board ECU computer system, so that the driver can use his car more humanely.
3. Not only an information display system, but also a set of very powerful fault detection equipment, to understand whether the vehicle is faulty, the system can clearly display the fault information in the form of text, and can eliminate hidden dangers for the vehicle through the fault information At the same time, it can also ensure that the vehicle within the warranty period finds faults as soon as possible, and enables timely corresponding treatment to protect the interests of vehicle owners.
4. Is the latest scanning tool based on personal computers and mobile phones. It supports all OBD-II protocols and is compatible with many software. Its output protocol uses bluetooth to interconnect with computers and mobile phones.
Supported OBD-II protocol:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Software Description:
1. The OBD-II software used by AERMOTOR 4.0 is free software. After connecting the computer to the onboard computer hardware in the car, using this software, you can get the information you need from the onboard computer.
2. The software interface is friendly, which is easy to get started.
3. Software support platform: Windows XP, Windows 7/8 Android, Symbian, WP7, PC and other systems.
Software Features:
-The software can perform the following operations:
-Read error diagnostic codes
-Clear the error code and turn off the MIL (Check Engine indicator light)
-Display current sensor data, including:
-Engine revolutions per minute (RPM)
-Calculated load value
-Coolant temperature
-Fuel system status
-Speed
-Short-term fuel situation
-Long-term fuel situation
-Intake manifold pressure
-Fuel injection advance time
-Intake air temperature
-Air velocities
-Absolute position of throttle valve
-Oxygen detection voltage associated with short-term fuel state
-Fuel system status
-Fuel pressure
-There are many other data for fuel consumption monitoring...
-Future features of the software:
-Data chart display and logging
-Freeze frame data
-Continuous and discontinuous oxygen detection results
...
Compatible Software:
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN;
Android version: Viecar, Torque, OBD Car Doctor, Mini OBD, DashCommand, EOBD;
Symbian version: OBDScope.

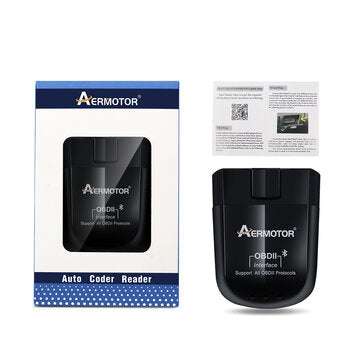

Package Included:
1 X | Car Fault Diagnosis Instrument |
1 X | Manual |
1 X | Box |
