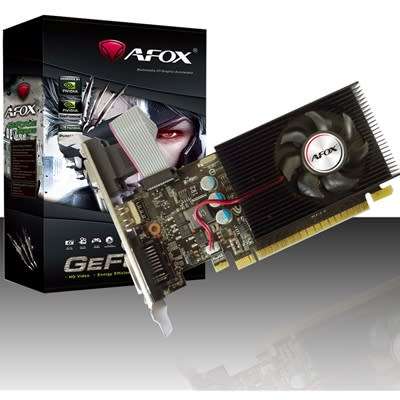

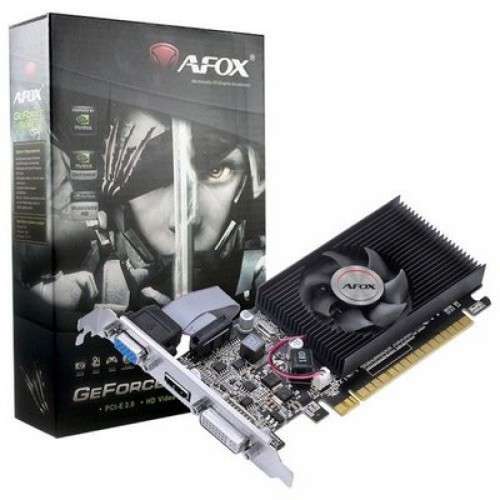

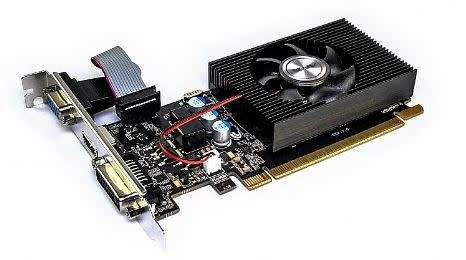

Afox NVIDIA GeForce GT 730 4GB Graphics Card

Manufacturer: AFOX
Model: GeForce GT730 LP (4GB 128Bit)
Part number: AF730-4096D3L1
Based on: NVIDIA GeForce GT 730 DDR3 128-bit [Compare]
Target market segment: Desktop
Die name: GF 108
Architecture: Fermi
Fabrication process: 40nm
Transistors: 585 million
Bus interface: PCI-E 2.0 x 16
Launch date: June 2014
Frequency
Graphics clock: 700 MHz
Processor clock:1400 MHz
Memory specifications
Memory size: 4096 MB
Memory type: DDR3
Memory clock: 666 MHz
Memory clock (effective):1333 MHz
Memory interface width: 128-bit
Memory bandwidth:21.33 GB/s
Cores / Texture
CUDA:2.1
CUDA cores: 96
ROPs: 4
Texture units: 16
RAMDACs: 400 MHz
Electric characteristics
Maximum GPU temp: 98°C
Maximum power draw: 49 W
Video features
Multi-monitor:              Up to 2 displays
Maximum digital resolution: 4096 x 2160
Maximum DVI resolution:     2560 x 1600
Maximum HDMI resolution:    4096 x 2160 @ 24 Hz or 3840 x 2160 @ 30 Hz
Maximum VGA resolution:     2048 x 1536
Anti-Aliasing technologies: FXAA
HDMI:Yes
HDMI version: 1.4a
Performance
Pixel fill rate: 2.8 Gigapixels/s
Texture fill rate: 11.2 Gigatexels/s
Single presision compute power: 268.8 GFLOPS

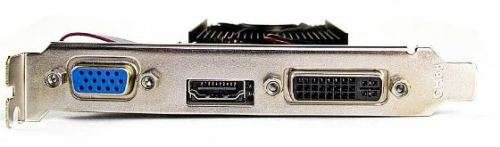

External connectors
Standard display connectors: Dual Link DVI-D
HDMI
VGA
Audio input for HDMI: Yes
Dimensions
Size (length x height): 5.71 inches (145 mm) x 2.72 inches (69 mm)
Width: Single Slot
Other features / Support
Other features: 3D Vision 3D Blu-Ray
HDCP
PhysX
Open CL support: 1.1
OpenGL support: 4.4
DirectX support: 12.0 (Feature Level 11_0)
Shader model: 5.1
