AGFRC MRFS01 2.4G FASST Mini Receiver Compatible SBUS RSSI Output for Mini RC Drone FPV Racing

AGFRC MRFS01 2.4G FASST Mini Receiver Compatible SBUS RSSI Output for Mini RC Drone FPV Racing

Specification:
Brand name: AGFRC
Item name: MRFS01 receiver
Operating Voltage: 4.8V~8.4V

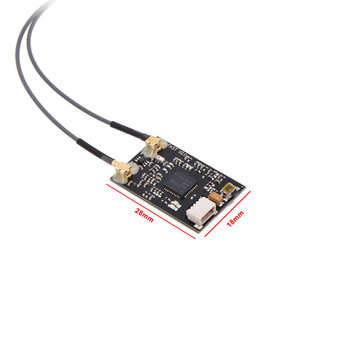

Dimension: 28x18x5mm (exclude antenna)
Weight: 3.8g
Antenna: Dual-antenna

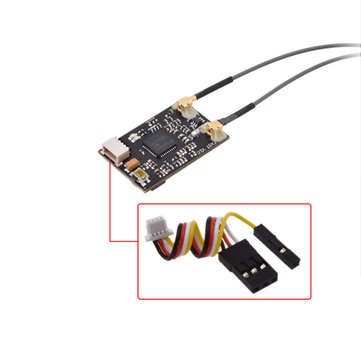

Output Channels:S-BUS(16CH) + RSSI(PWM)
Compatibility:
Compatible Futabas FASST remote control system
Suitable for Futabas 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, T18MZ etc FASST remote control

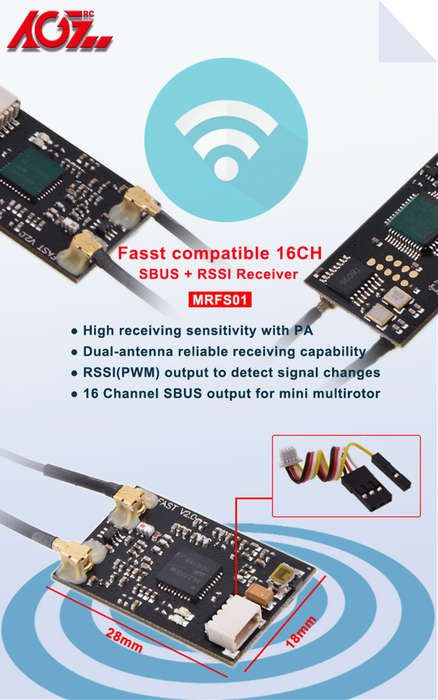

Feature:
1) High quality PA to ensure high receiving sensitivity;
2) Dual-antenna design, available to mount in different angle to increase the reception reliability;
3) Serial signal S-BUS (16CH) output, connect directly to flight control system, especially for mini multirotor and aircraft to save mounting space;
4) RSSI(PWM) output, available to detect the signal changes of the radio control via receiver.

Bind Procedure:
1. Get the transmitter and the receiver ready;
2. Turn on the transmitter;

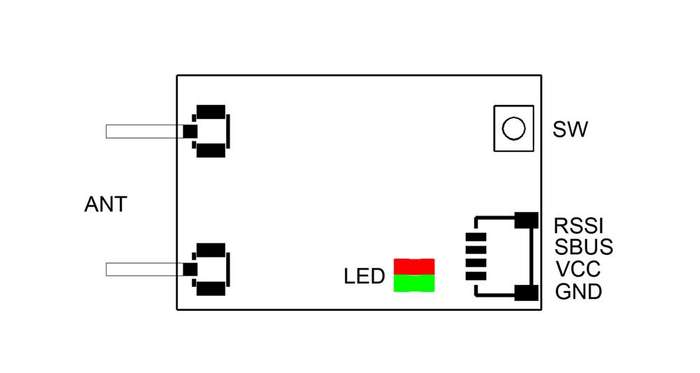

3. Press the SW on the receiver and power on, the LED in the receiver changes to solid green while complete, the receiver start to work;
It could be failed binding as for the environment, please repeat the above steps.

LED Status:

GREEN LED	RED LED	Status
Solid	Solid	Ready to bind
Solid	Off	Receiving signals
Solid	Blink	Signal loss

Package included:
1x MRFS01 receiver
