Description
This is an ultra-portable, WIFI wireless camera that allows users to view and record audio and video wirelessly on their PC or smart phones.
With its 802.11 b/g wireless (WIFI) interface, the camera allows you to stream and record audio video images through your mobile devices such as your smart phones (iPhones or Android devices) and laptops on the go

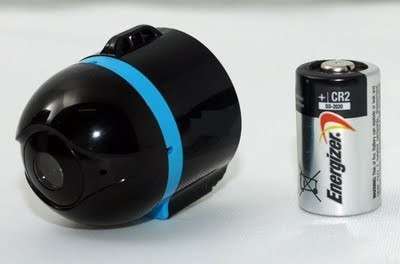

It is powered by a CR2 battery and coupled with its compact design(30mm in diameter and 35 mm in length + weighing just 100g with battery), you can easily carry the camera around for recording.
User can use a standard web browser to connect to the camera to view record or take snap shots.
You can also purchase the following applications from the (iPhone and Android) apps store.
App1 (for iPhone and iPad) - Record videos and snapshots on your iPhone and iPad as seen through the camera
App2 (for iPhone and Android) - Record Audio, video, and snapshots
App3(iPhone and iPad) - Allows user to detect and preview multiple camera connected to local area network (LAN). The app also allows users to record video & take snapshot.
All App1,App2 and App3 are to be purchase separately.

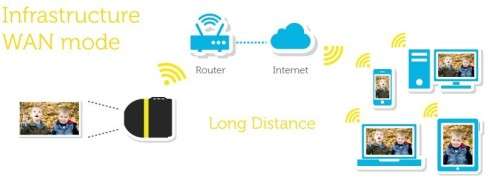

You can also connect this camera to your wireless router using its infrastructure mode, to stream or record videos from a remote location - for example you can view & record your home while your are overseas, stream or record your office while you are at home.
Camera Specifications
VGA 640x480, QVGA 320x240, QQVGA 160x120, up to 30fps
F2.8
View Angle: 60 degree
Focusing: 20cm to Infinity
Video Recorder
Motion JPEG
Compression mode : standard, high
Typical bit rate: (VGA): standard (2500 kbps), high (1600 kbps) (QVGA): standard (1100 kbps), high (800 kbps) (QQVGA): standard (600 kbps), high (400 kbps)
Video Snapshot
JPEG
Compression mode : standard, high
Wireless Interface
IEEE 802.11b/g 2.4GHz ISM Band
Wireless Security
WEP 64/128, WPA, WPA2
Wireless Range
Infrastructure: 20m (Typical)
Adhoc: 7.5m (Typical)
Wireless Performance
Infrastructure: 54Mbps, max. connection rate
Adhoc: 11Mbps, max. connection rate
Antenna
Single, internal
Dimension / Weight
30mm(Diameter) x 35mm(L)
100g
Power Supply / Consumption
Battery operated
Voltage: 3.0V
Power: 750mAH (CR2)
Current consumption: 320mA (typical); 350mA (maximum)
RoHS
RoHS Compliant
User interface
Menu driven via Embedded Web server on module
Package Include
AI Ball Wifi Spy Camera
