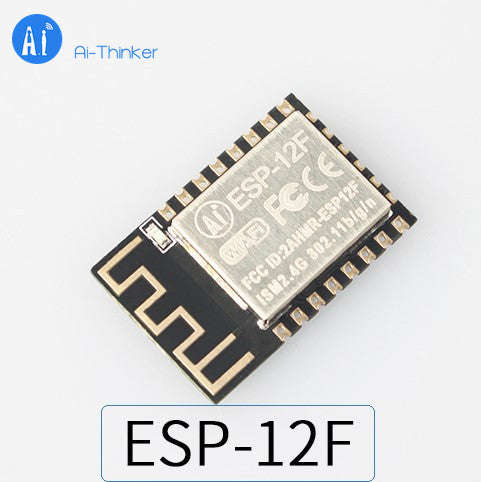

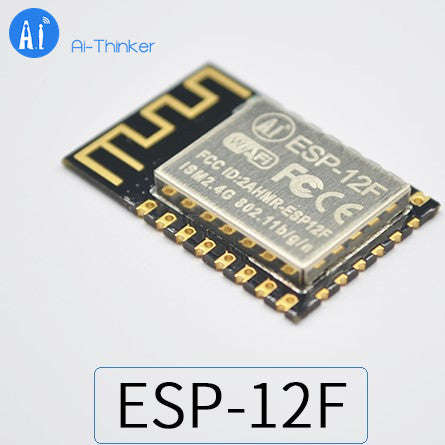

Ai Thinker ESP-12F

**** LOCAL STOCK ****

The ESP8266 series module is a series of ultra-low power UART-WiFi module based on Lexin ESP8266 developed by Shenzhen Anxinke Technology Co., Ltd., which can be easily developed for secondary development, accessing cloud services, and implementing mobile phone 3. /4G global control anywhere, anytime, accelerate product prototyping.

The module core processor ESP8266 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a small package with 16-bit reduced mode, supporting 80 MHz and 160 MHz, supporting RTOS and integrating Wi-Fi MAC/ BB/RF/PA/LNA, onboard antenna. Supports the standard IEEE802.11 b/g/n protocol, complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers.

The ESP8266 is a high-performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WiFi functionality into other systems.

Characteristics

• 802.11 b/g/n
• Built-in Tensilica L106 ultra-low power 32-bit micro MCU with support for 80 MHz and 160 MHz, RTOS support
• Built-in 10 bit high precision ADC
• Built-in TCP/IP protocol stack
• Built-in TR switch, balun, LNA, power amplifier and matching network
• Built-in PLL, voltage regulator and power management components, +20 dBm output power in 802.11b mode
• Aggregation of A-MPDUs, A-MSDUs, and guard intervals of 0.4 s
• WiFi @ 2.4 GHz with WPA/WPA2 security mode
• Support AT remote upgrade and cloud OTA upgrade
• Support STA/AP/STA+AP working mode

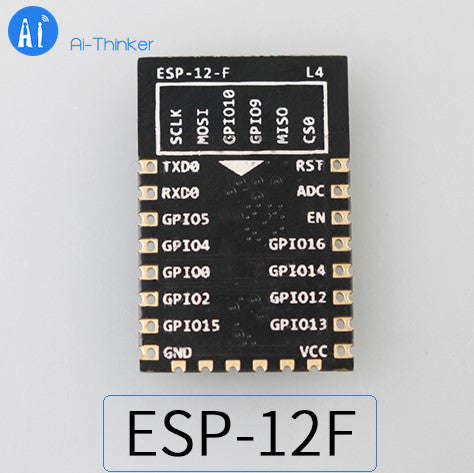

• HSPI UARTI2CI2SIR Remote ControlPWMGPIO
• Deep sleep keeps current at 10 uA and shutdown current is less than 5 uA
• Wake up, connect, and pass packets within 2 ms
• Standby power consumption is less than 1.0 mW (DTIM3)
• Operating temperature range: -20C - 85C

Datasheet and more documents go ESP8266 Series module topics and ESP8266 Documentation Center
