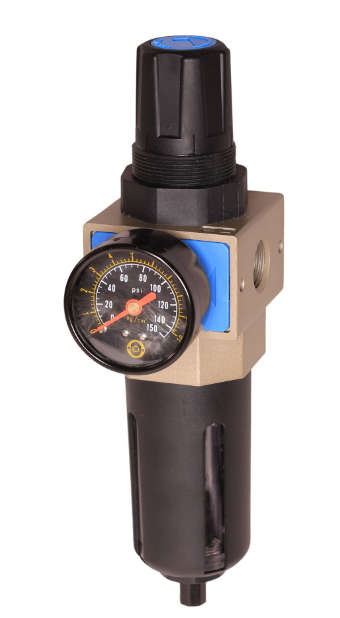

MAC AFRIC Air Regulator and Water Trap 6.35 MM
Precision Air Control and Moisture Removal for Optimal Performance
The MAC AFRIC Air Regulator and Water Trap 6.35 MM is a professional-grade solution designed to provide consistent air pressure and eliminate moisture, dust, and contaminants from your compressed air system. This dual-function unit combines an air regulator and water trap, ensuring clean, dry, and accurately regulated air for your tools and equipment, enhancing their performance and longevity.
Key Features:
- Dual Functionality: Combines an air regulator and water trap in one unit to maintain consistent pressure and remove harmful moisture and debris from the air supply.
- Maximum Pressure: Rated for 10 BAR (150 PSI), suitable for a wide range of pneumatic tools and equipment.
- Operating Pressure Range: Works efficiently within the pressure range of 0.5 10 BAR (7 145 PSI), giving you flexibility across various systems.
- Accuracy: Offers a precision of ±4.5 PSI (0.3 BAR) to ensure stable and reliable pressure, even during fluctuations in the inlet.
- Air Flow Adjustment: Features adjustable airflow to fine-tune the system based on your specific needs, providing better control over the output.
- Air Outlet & Inlet Sizes:
- Air Outlet Size: 1/4" IN Threaded Female
- Air Inlet Size: 1/4" IN Threaded Female
- Temperature Range: Designed to operate within a wide temperature range of -10° to 60°C, making it suitable for diverse working environments.
- Pressure Measurements: Provides pressure readings in both PSI and KG/CM², allowing for easy monitoring and adjustment.
Whats the Purpose of a Regulator?
A regulator controls the precision and speed of air or liquid by reducing the pressure from the inlet to the outlet. It helps maintain a consistent outlet pressure despite fluctuations from the inlet, ensuring reliable and efficient tool operation.
Whats the Purpose of a Water Trap?
During the air compression process, moisture in the form of water vapor is created. A water trap collects this moisture to prevent it from entering your tools and systems. It also serves to eliminate dust, debris, and other contaminants, ensuring that only clean, dry air is delivered to your equipment.
How to Select the Right Regulator:
When choosing a regulator, consider the operating pressure ranges of both the inlet and outlet, flow requirements, and the working temperature range of your system. These specifications help determine the best fit for your needs and ensure optimal performance.
Product Dimensions & Packaging:
- Package Weight: 0.92 kg
- Package Dimensions:
- Length: 33.4 cm
- Width: 8.0 cm
- Height: 7.4 cm
Applications:
- Pneumatic Tools: Ensures tools operate at the correct pressure and are protected from water and contaminants.
- Air Compressors: Regulates air pressure and removes moisture, improving the efficiency and longevity of the compressor.
- Industrial Systems: Suitable for various industrial applications that require precise air pressure control and moisture removal.
The MAC AFRIC Air Regulator and Water Trap 6.35 MM is an essential component for any compressed air system, offering precise pressure regulation, moisture removal, and enhanced air quality for your tools and equipment. Its dual functionality makes it an invaluable addition to your pneumatic setup.
