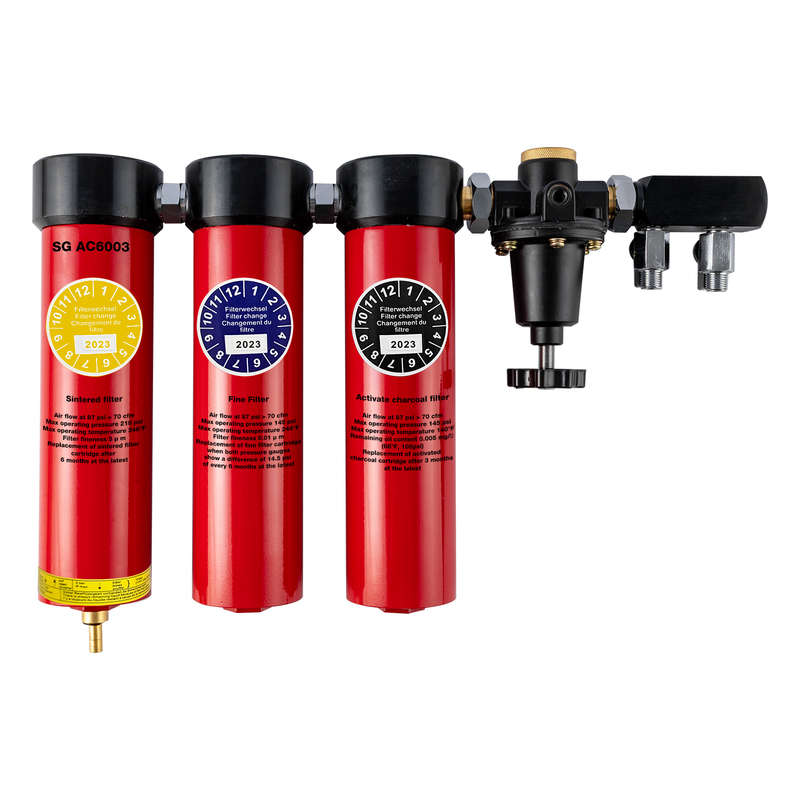

Three Stage Filter Without Gauge
Stages: Sinter, Fine & Carbon
A three-stage filter system, composed of sinter, fine, and carbon filters, is designed to effectively remove impurities from air or liquid. While gauges are often used to monitor filter performance, this system can function without them.
1. Sinter Filter
Purpose: Removes larger particles and debris.
Material: Typically made of sintered metal or ceramic.
Function: The porous structure of the sinter material traps larger particles, preventing them from passing through to the subsequent filters.
2. Fine Filter
Purpose: Removes smaller particles and contaminants.
Material: Often made of a woven or nonwoven material, such as fiberglass or polyester.
Function: The fine mesh of the material captures smaller particles that were not removed by the sinter filter.
3. Carbon Filter
Purpose: Absorbs gases, odors, and volatile organic compounds (VOCs).
Material: Activated carbon, a highly porous material with a large surface area.
Function: The carbon particles adsorb various contaminants, effectively purifying the air or liquid.
Application:
Solvent-based paints
Breathing protection equipment
Automotive
Waterborne, paint spray guns
DIY
Removes oil and water (Sintered filter)
Removes micro dirt (Fine filter)
Removes oil steam and smells (Activated charcoal filter)
How the System Works Without Gauges
Visual Inspection: The filters can be periodically inspected for signs of clogging or wear. A noticeable decrease in airflow or an increase in pressure drop can indicate the need for replacement.
Scheduled Replacements: Based on usage, environmental conditions, and the specific contaminants being filtered, the filters can be replaced on a predetermined schedule.
Performance Indicators: While not as precise as gauges, monitoring the overall performance of the system can provide clues about filter efficiency. This might involve observing changes in the quality of the filtered air or liquid, such as reduced odor or improved clarity
Features
Fine filter and activated charcoal filter cartridges fit perfectly, simply insert, without screw fittings or additional seals.
Automatic condensation discharge valve.
Flow-optimized cyclone separator with enhanced particle separation efficiency of particles > 0.05mm.
1 x Three stage filter 1 x Air pressure regulator (Without Gauge) 2 x Ball valve G 1/4M
SG AC6003
