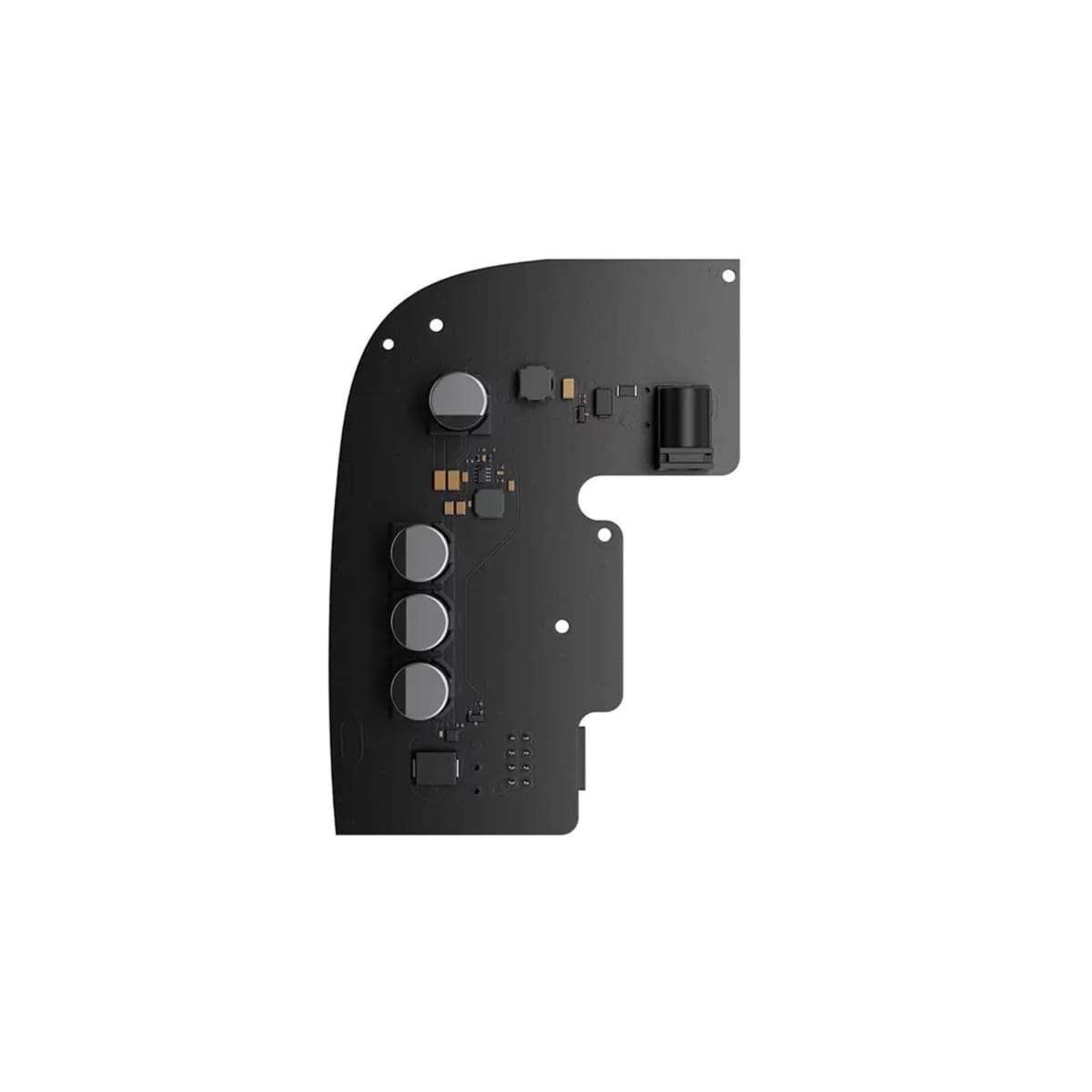

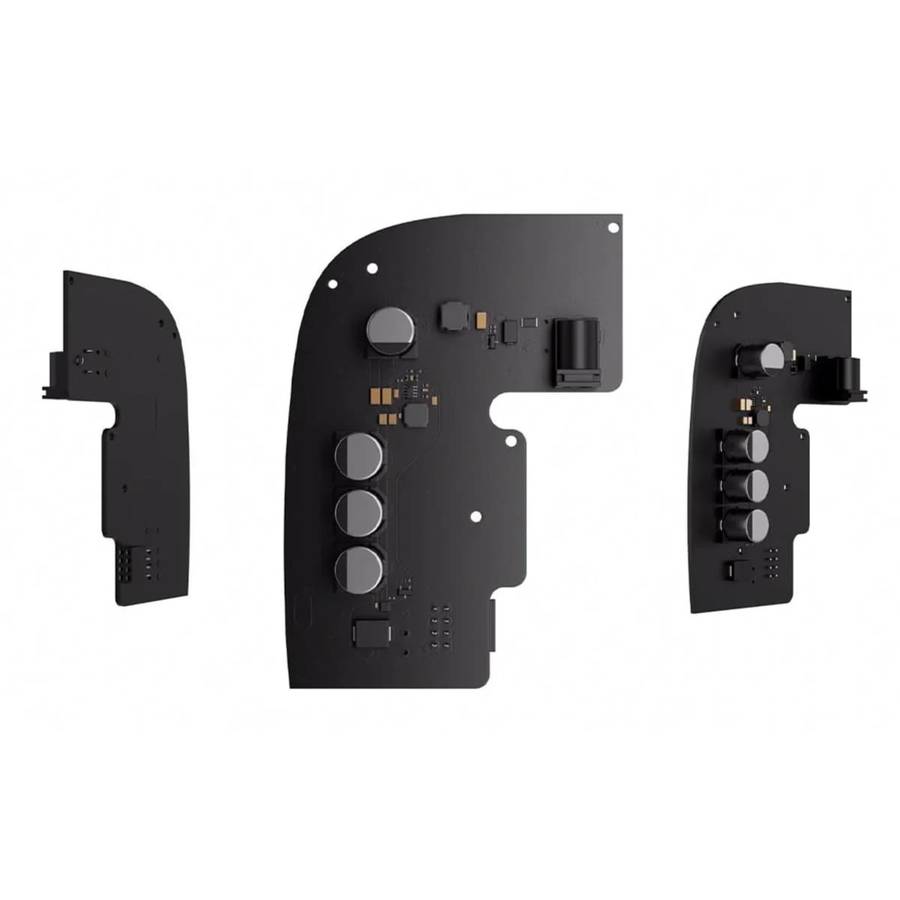

Ajax 12-24V PSU for Hub 4G | Hub 2 | Hub 2 Plus | ReX 2

Ajax 12-24V PSU (type A) for Hub 4G | Hub 2 | Hub 2 Plus | ReX 2 | 8-32vDC Input Voltage

With an alternative 12-24 V power supply unit, an Ajax hub or a range extender can operate on a low-voltage power source instead of a normal power grid. This setup is ideal for protecting properties with unstable or no electricity.

The 12v PSU replaces the on-board 220v PSU.

• Input voltage: 8 32 VDC
• Output voltage: 4.8 VDC ± 5%
• Turn on voltage: 8 VDC ± 2.5%
• Turn off voltage: 7 7.5 VDC (depending on load)
• Max input current: < 1 A
• Max output current: 1.5 A
• DC jack: (Female) 6.5 × 2 mm | (Male) 5.5 × 2.1 mm
• Dimensions: 98 × 70 × 17 mm

Ajax 12-24v PSU (type A) | 8-32vDC Input Voltage

Compatibility:

12-24V PSU (type A) is compatible with:

• Hub (4G)
• Hub 2 (2G)
• Hub 2 (4G)
• Hub 2 Plus
• ReX 2

Protecting facilities lacking electricity

With an alternative 12-24 V power supply unit, an Ajax hub or a range extender can operate on a low-voltage power source instead of a normal power grid. This setup is ideal for protecting properties with unstable or no electricity.

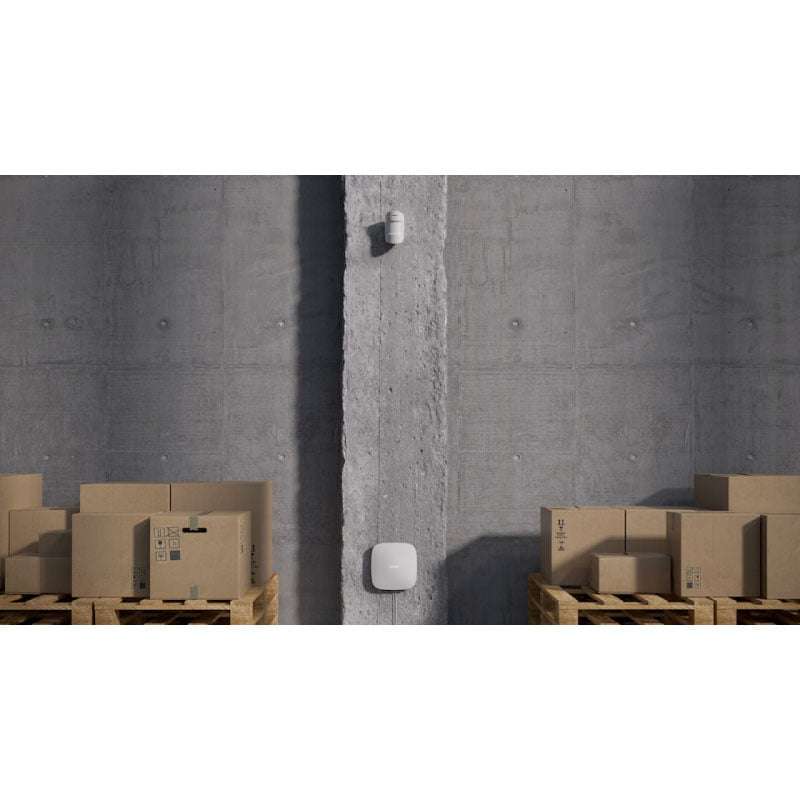

In Warehouses, Building Sites etc:

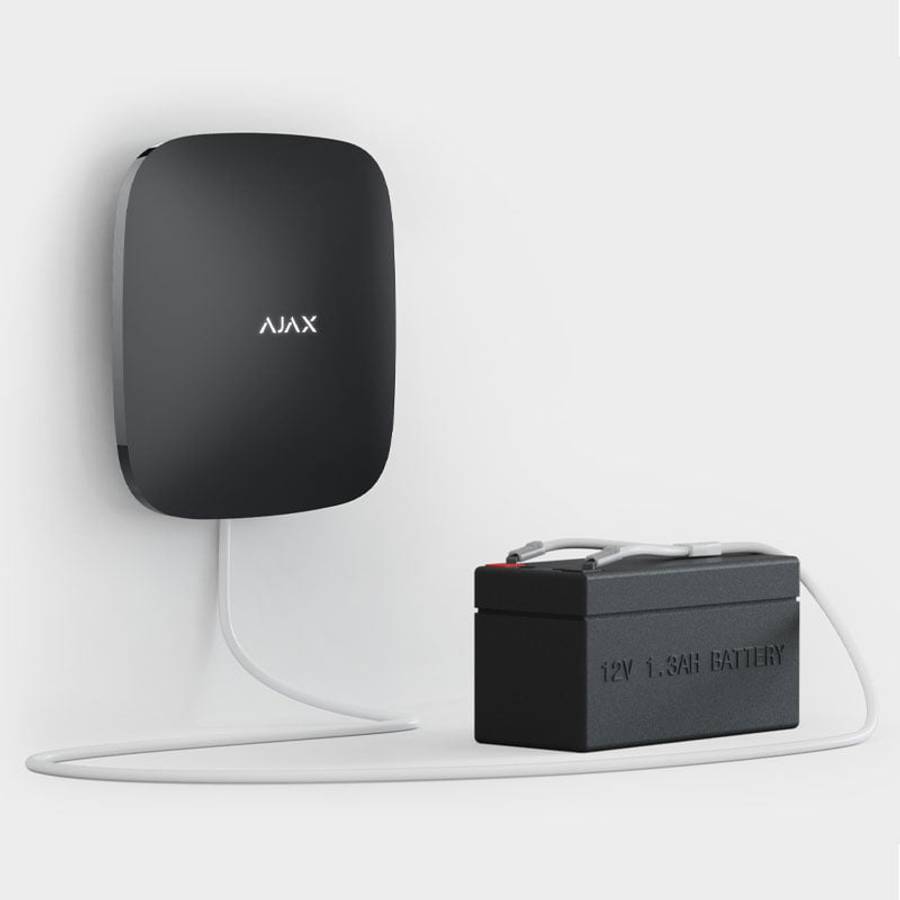

Use Ajax in premises lacking electricity or having an unstable power supply. A 12 V power supply unit allows connecting hubs and radio signal extenders to low-voltage networks or use a portable battery.

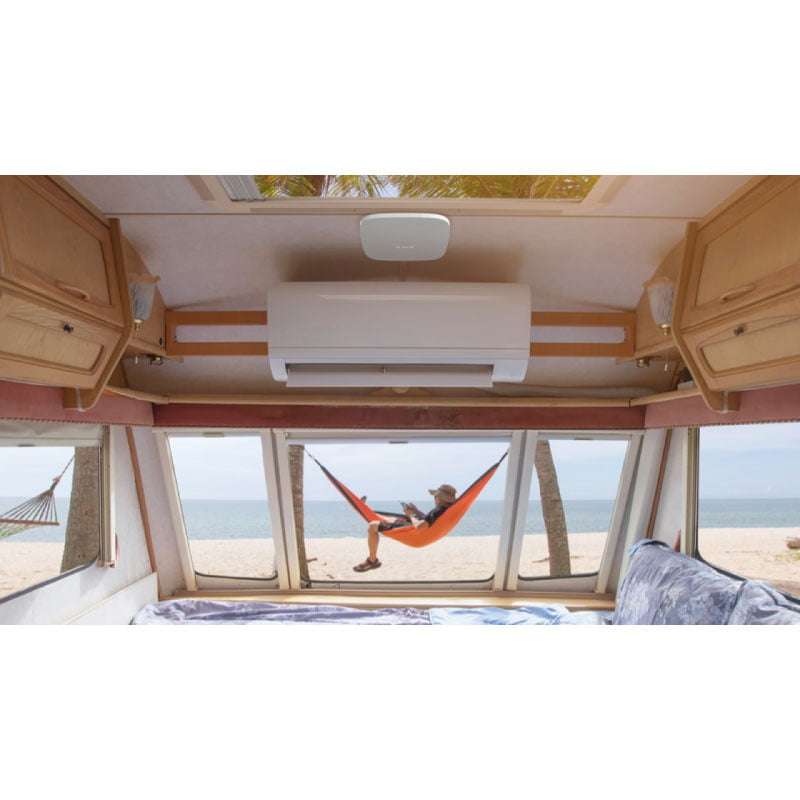

In Campervans and Caravans:

Ajax protects your home, even if it goes on wheels. Connect the hub to a car or portable battery and let the security system travel with you.

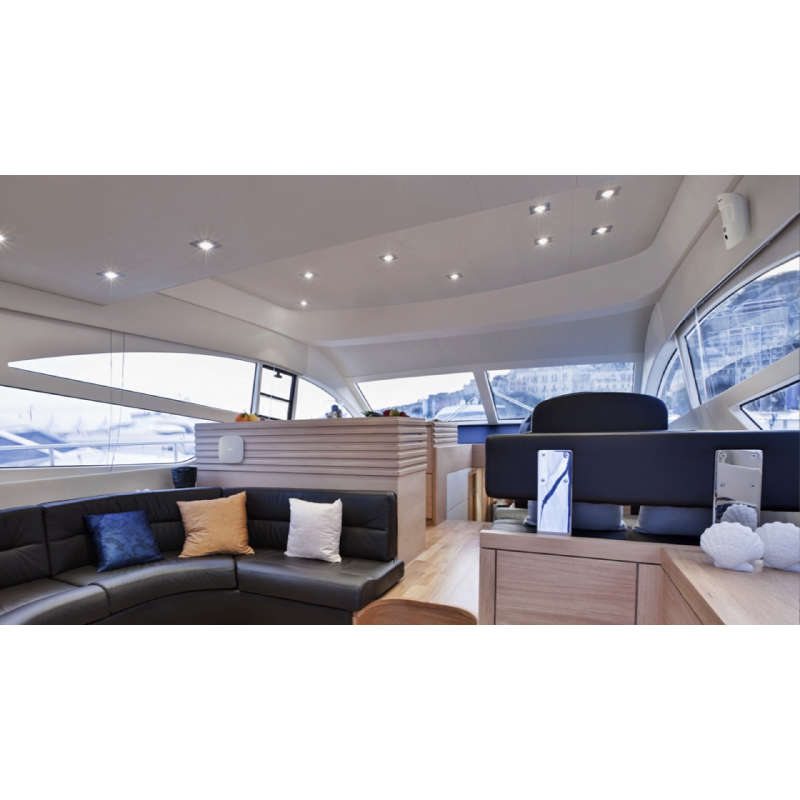

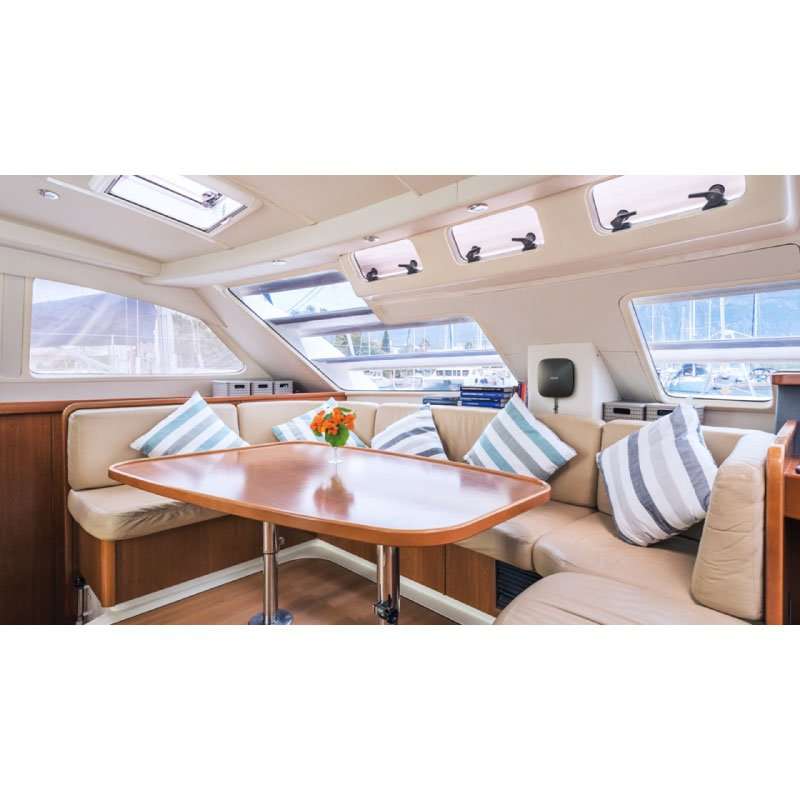

On Yachts:

Insert a SIM card and connect the hub to the on-board network or battery so that Ajax always guards your boat at the pier.

Installation:

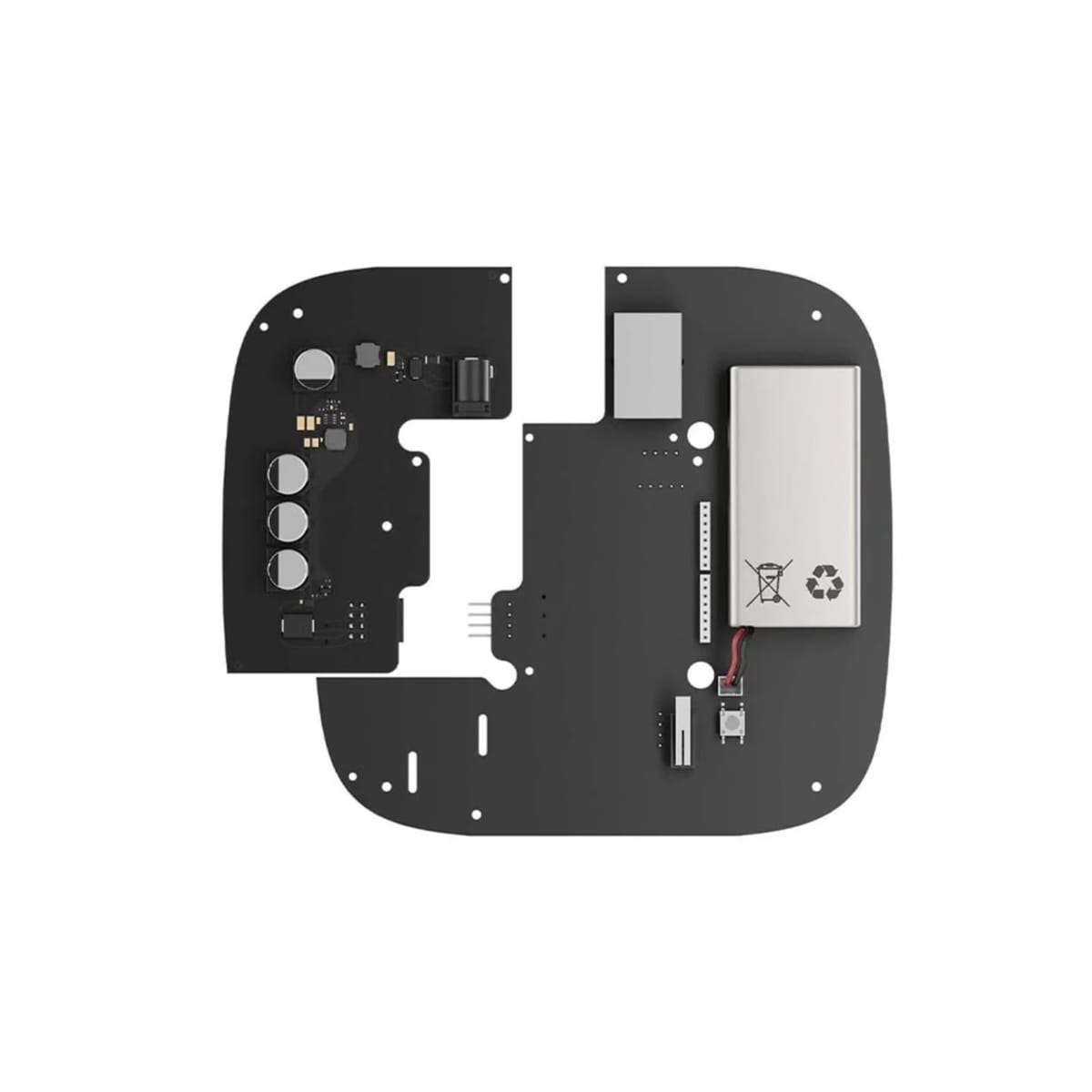

12-24V PSU (type A) is installed inside the device enclosure replacing the standard 110/230 V~ power supply unit. It has a standard jack plug to connect the power cable and includes a terminal adapter in the complete set. An installer only needs a screwdriver and a few minutes to switch the pre-installed power supply unit to 12-24V PSU (type A).

What's in the Box:

• Ajax 12-24V PSU (type A)

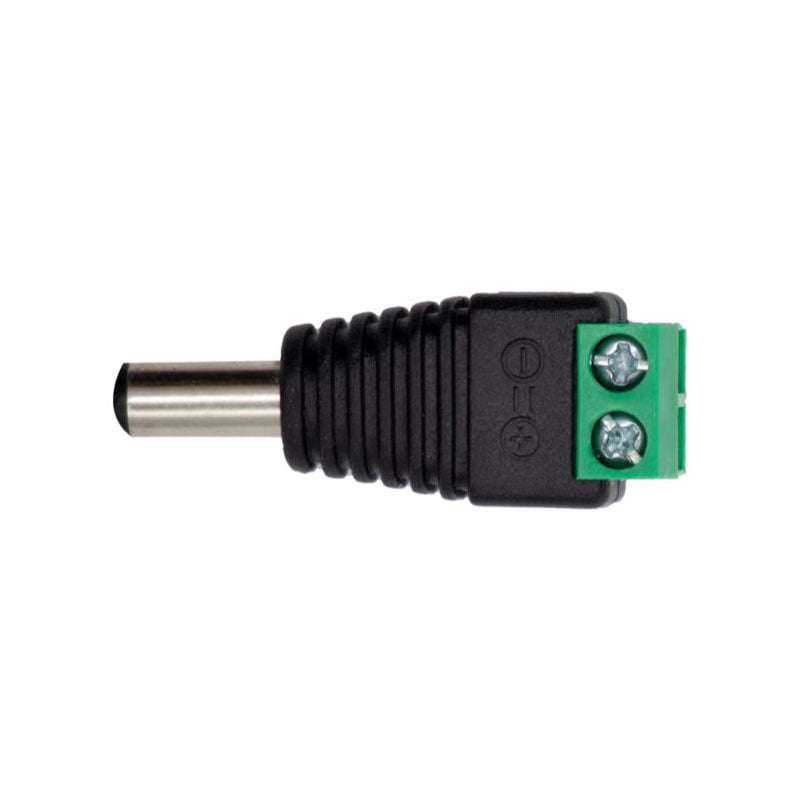

• Terminal adapter
• Quick start guide

How to install 12-24V PSU (type A)

Ajax 12-24v PSU User Manual and Tech Specs

User Manual

Tech Specs

Control Panel power consumption when operating from 12 V
