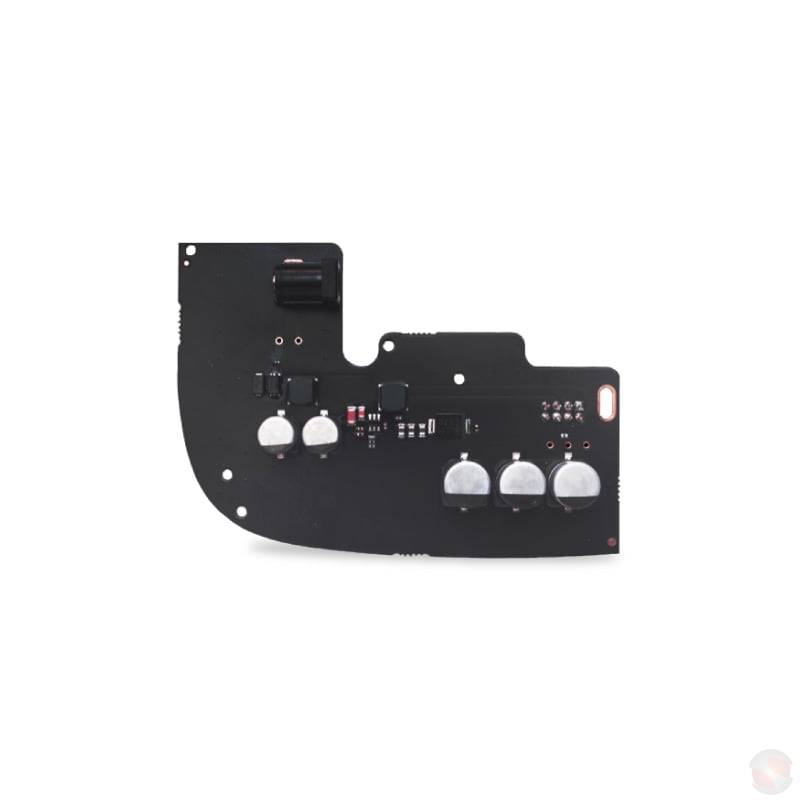

The Ajax 6v PSU (4.2-16v input), compatible with Ajax Hub (4G), Hub 2, Hub 2 Plus and Rex 2, is a power supply unit used to connect the Hub to 4.2-16v low-voltage power sources or portable batteries.
The 6v PSU replaces the on-board 220v PSU.
- Input voltage: 4.210 V
- Max input voltage: 4.210 V
- Max input current: 2.2 at 4.2 V | 0.8 at 10 V
- Switch on voltage: 8 VDC ± 2.5%
- Switch off voltage: 33.4 V (depending on load)
- Output voltage: 4.2 V ± 0.5%
- Output current: up to 1.5
- DC jack: (Female) 6.5 × 2 mm | (Male) 5.5 × 2.1 mm
- Dimensions: 98 × 70 × 17 mm
Ajax 6v PSU (Type A) | 4.2-16v Input Voltage
Compatibility:
6V PSU (type A) is compatible with:
- Hub (4G) Jeweller
- Hub 2 (2G) Jeweller
- Hub 2 (4G) Jeweller
- Hub 2 Plus Jeweller
- ReX 2 Jeweller

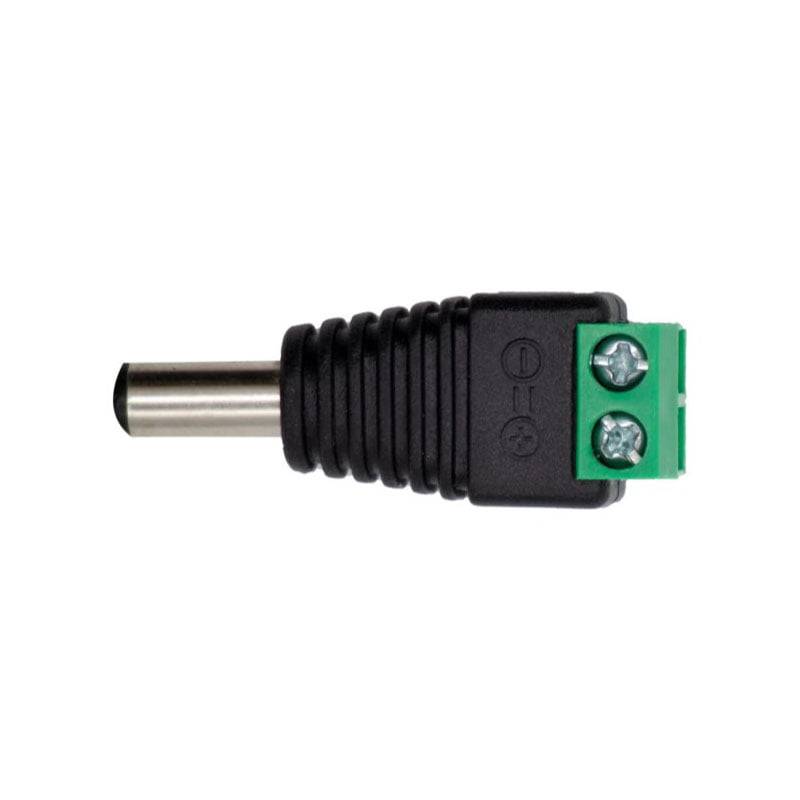

*It has a standard power jack plug to connect the power cable and is supplied with a terminal adapter.
Protecting facilities lacking electricity

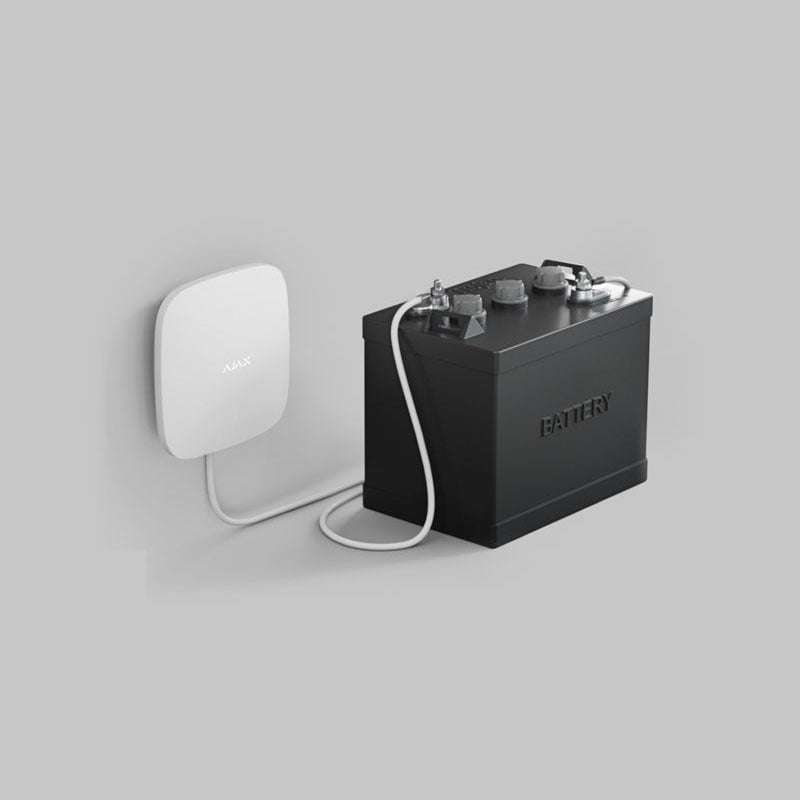

With an alternative 6 V power supply unit, an Ajax hub or a range extender can operate from an external battery for years without being connected to the facility's power grid. This setup is ideal for protecting buildings in critical condition, construction sites, or abandoned properties from burglars, vandals, and unauthorised occupation.

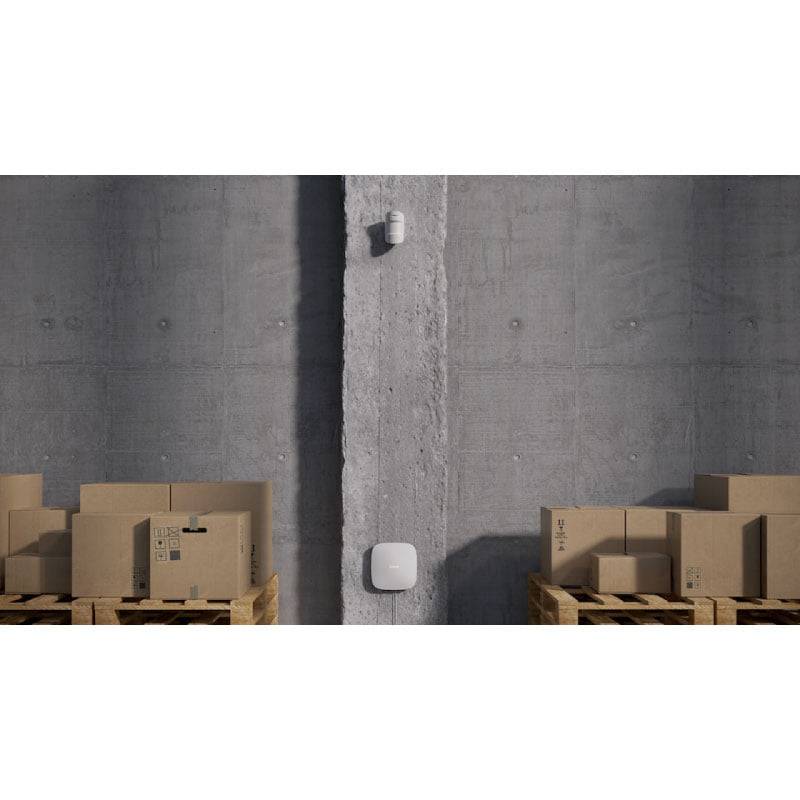

In Warehouses, Building Sites etc:
Use Ajax in premises lacking electricity or having an unstable power supply. A 12 V power supply unit allows connecting hubs and radio signal extenders to low-voltage networks or use a portable battery.

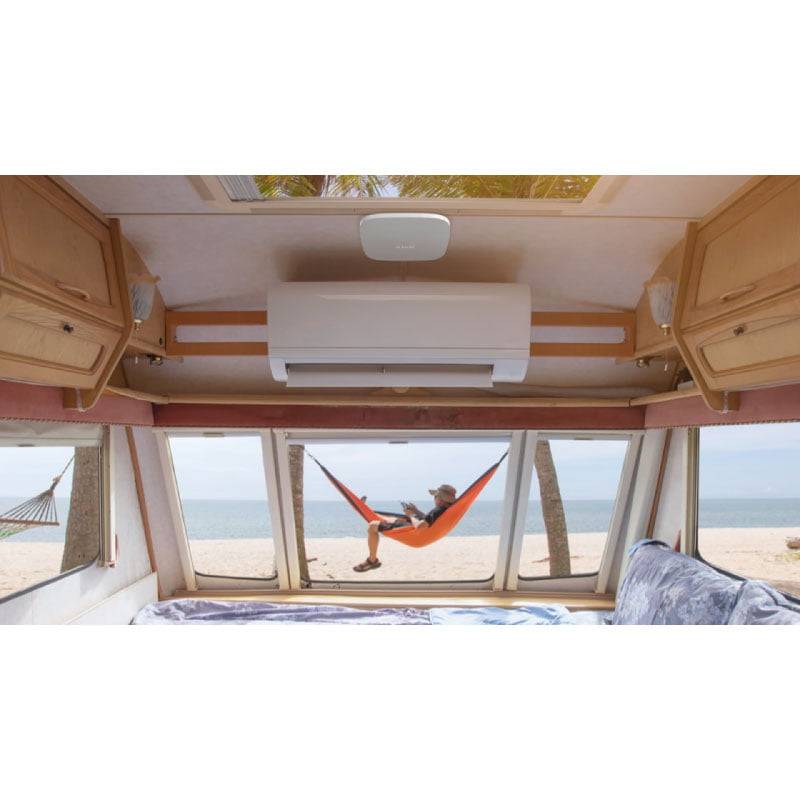

In Campervans and Caravans:
Ajax protects your home, even if it goes on wheels. Connect the hub to a car or portable battery and let the security system travel with you.
On Yachts:
Insert a SIM card and connect the hub to the on-board network or battery so that Ajax always guards your boat at the pier.
Installation

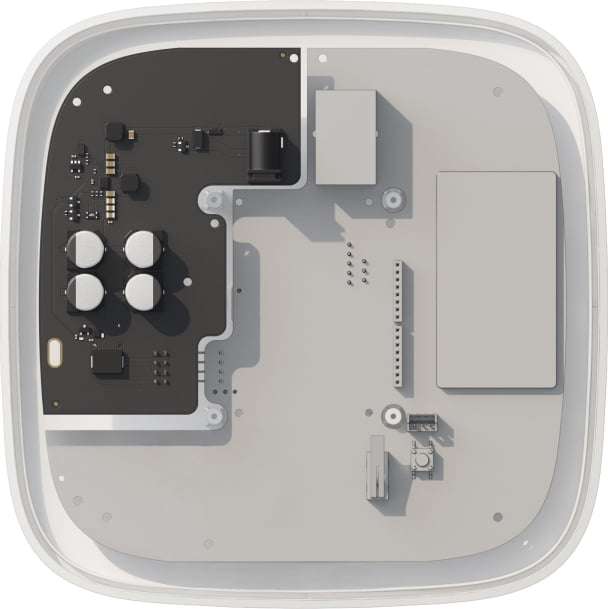

6V PSU is installed into the device body replacing the pre-installed 110/230 V power supply unit.
What's in the box:
- Ajax 6v PSU
- Terminal adapter
- Quick start guide
Energy Consumption Calculator:
Click HERE for link: Hub energy consumption calculator when operating from a 6V PSU
Ajax 6v PSU User Manual and Tech Specs
User Manual
Tech Specs
Hub power consumption when operating from 6V PSU
