Ajax DoorProtect Wi-Fi Jeweller Black
Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base.
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features

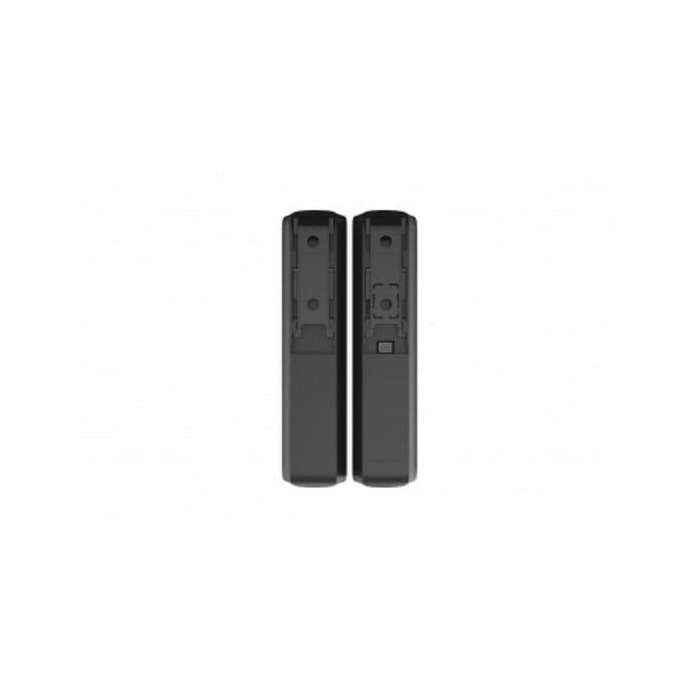

The device consists of two modules detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration in the Ajax apps.
Specifications:
Maximum effective radiated power (ERP): up to 20 mW
Radio signal modulation: GFSK
Radio signal range: up to 1,200 m
Detection
Sensitive element: 1 reed switch
Magnets: small and big one come in the set
*The small magnet operates at a distance of up to 1 cm from the detector, and the big magnet up to 2 cm. Attach the magnet on the right side of the detector.
Protection against reed switch chattering: The detector ignores vibrations lasting up to 0.15 s.
Input to connect an additional detector: Wired detector with the normally closed (NC) contact type.
Chime: When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered.
Sabotage protection
Tamper alarm: Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.
Power supply
Battery: 1 × CR123A
Type: type C
Calculated battery life: up to 7 years
Detector dimensions: 90 × 20 × 20 mm
Dimensions of the big magnet: 90 × 20 × 20 mm
Dimensions of the small magnet: 55 × 11 × 6 mm
Detector weight: 29 g
Protection class: IP50
