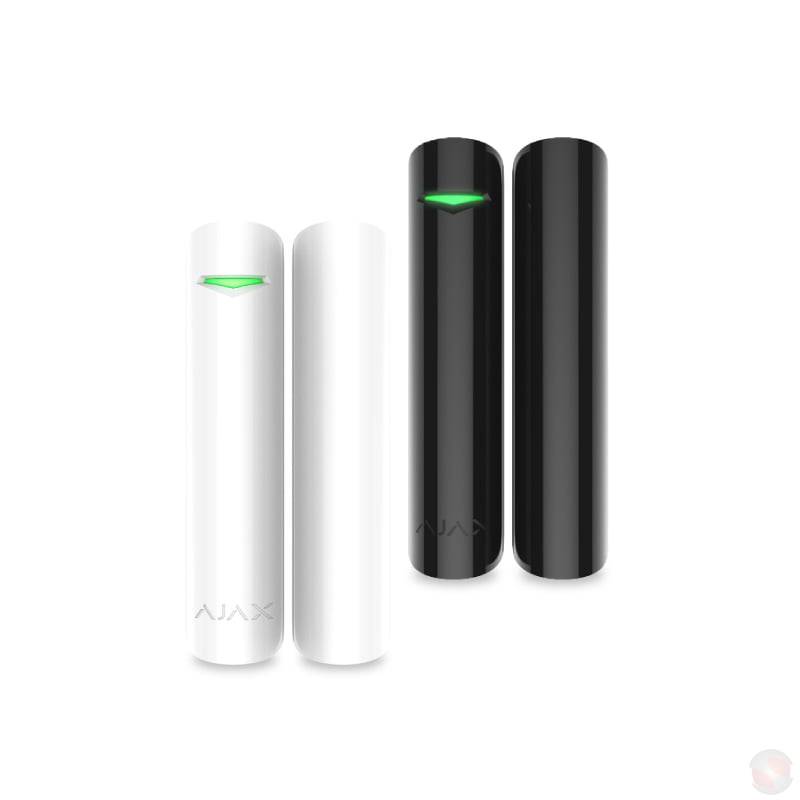

Ajax DoorProtect compact size and powerful magnet make Ajax DoorProtect the ideal wireless detector to protect all types of doors and windows.
Ajax DoorProtect - includes wired input for 3rd party detectors
The Ajax DoorProtect is a wireless opening detector that notifies you of any unauthorised window or door openings. It can be mounted on all types of doors including a metal base.
The device consists of two modules, a detector, and a magnet. The set includes a big and small magnet for installation on narrow door and window frames.
The sensor comes with a battery and is therefore ready for installation. Scan the QR code on the back of the device with your smartphone and it connects to the hub.
Features
- Ajax wireless door or window opening detector
- Separate wired input for 3rd party detectors
- Uses authentication to protect against fraud
- Tamper-resistant body
- Response from detectors can be checked every 12-300 seconds (adjustable)
- Jamming detection, frequency-hopping
- Uses an encrypted connection
- Uses British-made reed switches that can be toggled more than 1,000,000 times without failure
- Two-way communication with Ajax Hub allows for periodic testing and customization
- Saves energy by regulating power consumption based on the distance from Ajax Hub
- Has a battery life of up to 7 years when pinging once per minute
- No need to disassemble the body when installing using SmartBracket mounts
- Uses powerful magnets that can be installed up to 2 cm from the main unit
- The quality of the connection and detection area can be tested remotely
- Connects to Ajax Hub with a single click
- Tamper alarm
Detection
Sensitive element
1x Reed switch.
Magnets
1x Small and 1x big magnets are included in the set.
The small magnet operates at a distance of up to 1 cm from the detector and 2cm with the big magnet. Attach the magnet on the right side of the detector.
Protection against reed switch chattering
The detector ignores vibrations lasting up to 0.15 s.
Input to connect an additional detector
Wired detector with the normally closed (NC) contact type.
Chime
When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered.
NOTE: The system requires an Ajax siren for the Chime feature to work. Chime feature is only available on sirens with the following firmware versions:
- HomeSiren Jeweller 5.55.1.0 and higher
- StreetSiren Jeweller 3.73.1.0 and higher
- StreetSiren DoubleDeck Jeweller 3.73.1.0 and higher
Ajax Ajax DoorProtect User Manual, Tech Specs and DataSheet
User Manual
Tech Specs
Technical DataSheet
How to set up and enable Chime (external link)
