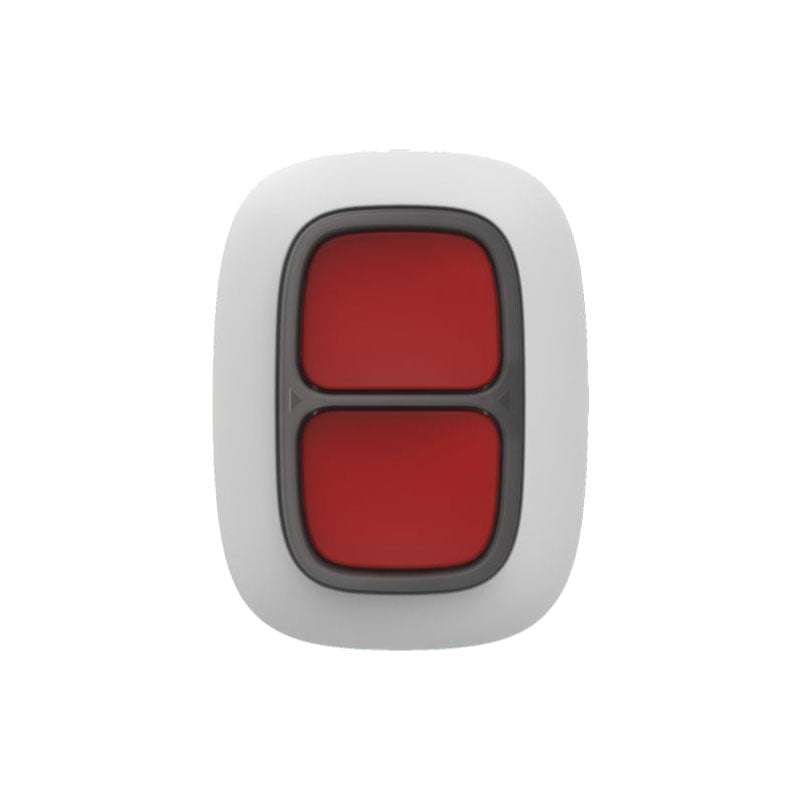

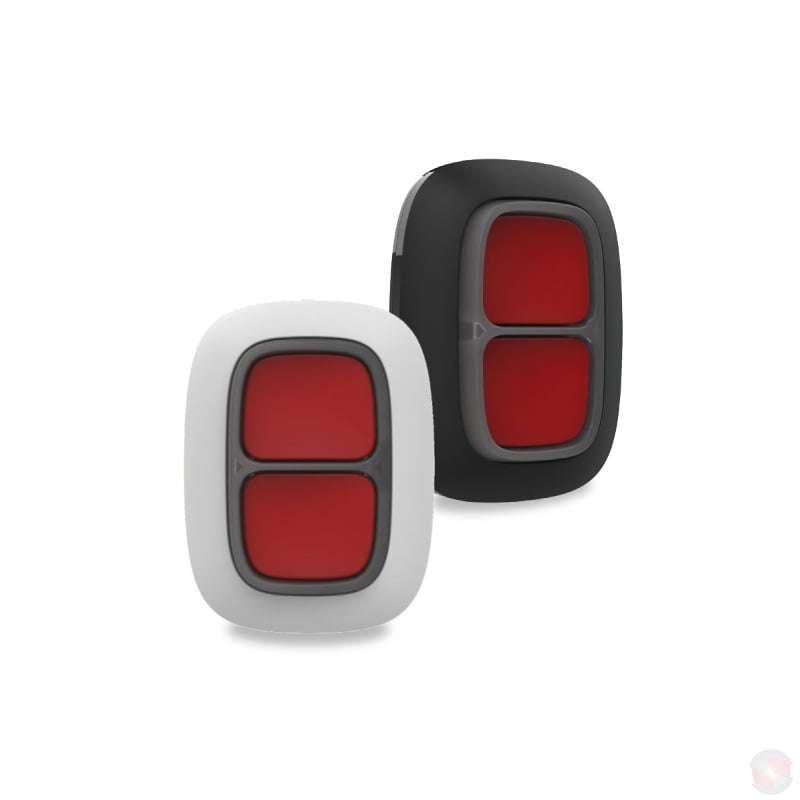

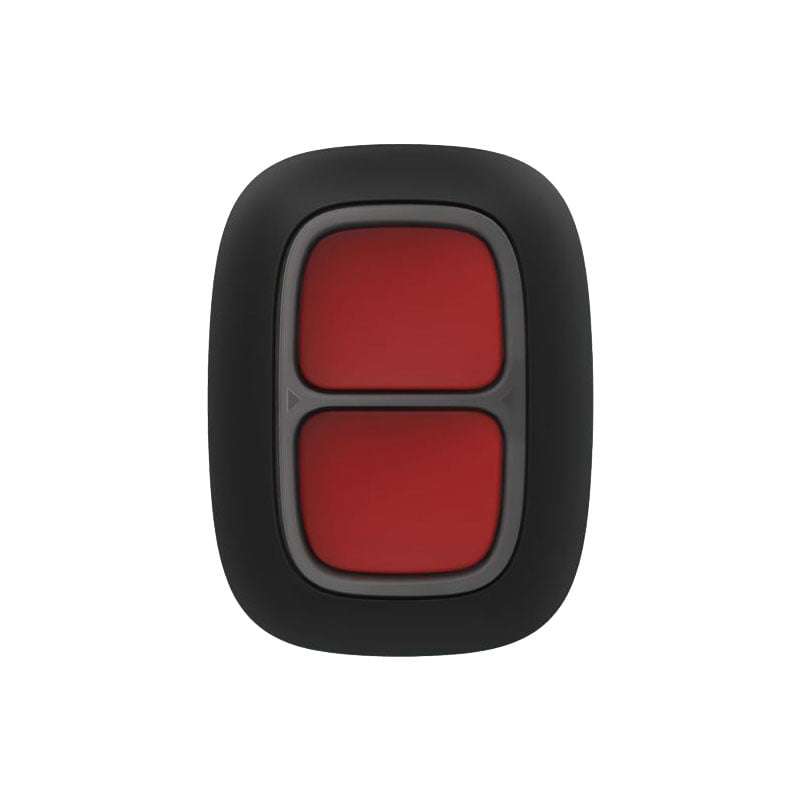

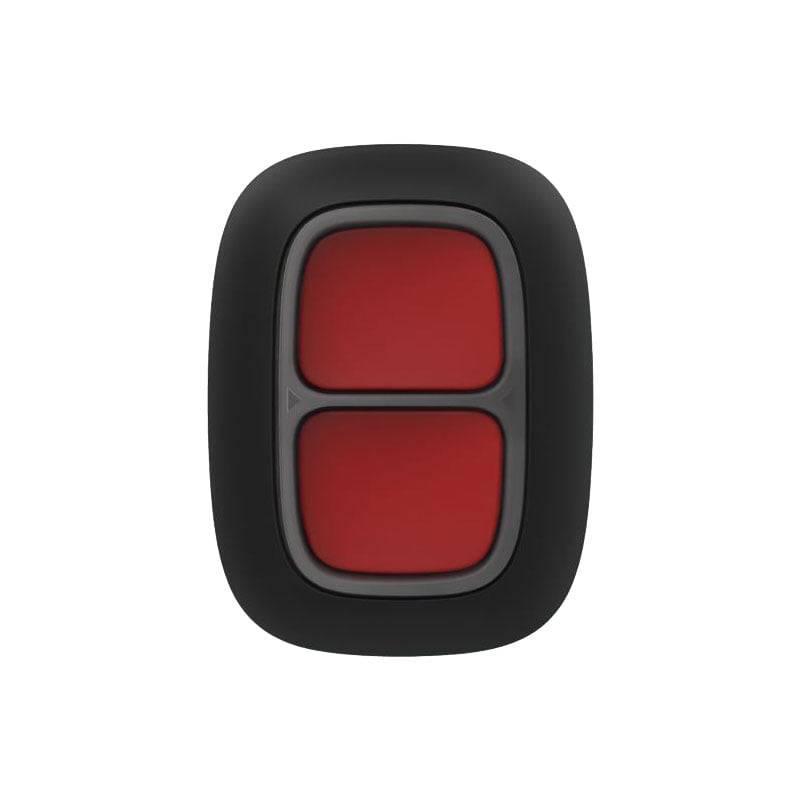

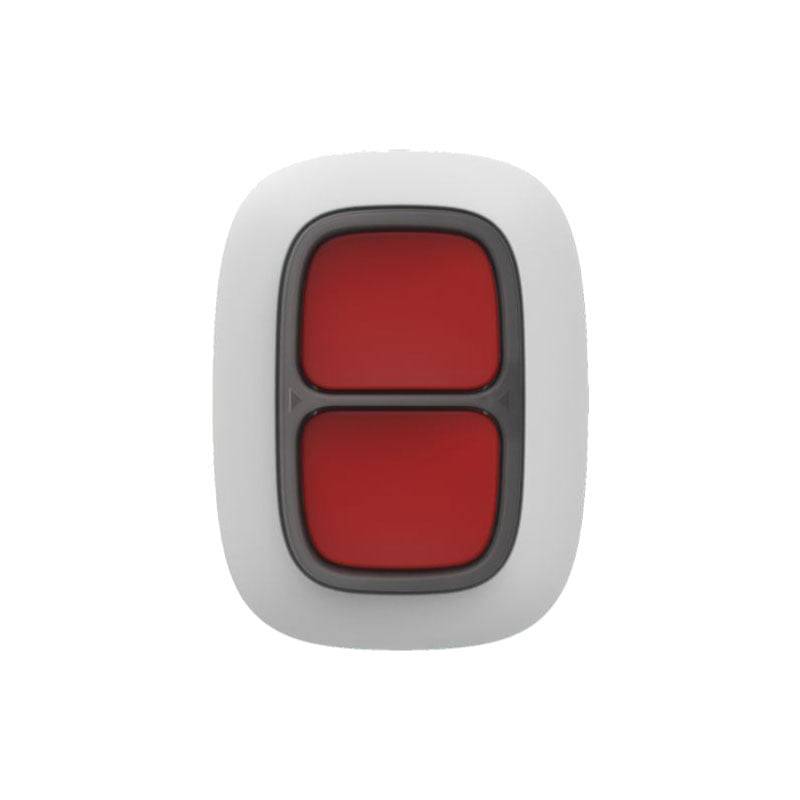

The Ajax DoubleButton is a wireless two button panic and multi-scenario remote.
To trigger a panic alarm, both buttons must be pressed simultaneously to avoid false alarms when carrying DoubleButton in a pocket or bag. They are stiff and parted by a plastic barrier.
Raising an alarm is the priority DoubleButton function, but not the only one. By transmitting an alarm signal, the hold-up device can activate all or specific sirens and run automation scenarios: trigger a smoke machine, close electric locks and lower roller shutters.
Ajax Double Button - Wireless Hold-Up Device
No accidental presses
To activate the alarm, you must simultaneously press both buttons. They are stiff and parted by a plastic barrier. These measures eliminate false alarms when carrying DoubleButton in a pocket or bag.
No unnecessary dispatches
DoubleButton supports confirmed alarms. This feature implies instructing users: what sequence of presses is required to generate a confirmed alarm condition. It gives a 100% guarantee that a hold-up alarm was raised intentionally and only by an authorised user.
Guaranteed alarm delivery
The hold-up device transmits a signal to the hub via Jewellera two-way radio protocol communicating at a range of up to 1300 meters. A flashing LED verifies the successful delivery of the DoubleButton alarm. Jeweller encrypts the transmitted data and prevents device forgery. In the case of interference, the Ajax system switches to a free radio frequency, and when the air is jammed, it notifies users and a security company about the situation.
PRO-technology solution for any object
DoubleButton meets the requirements of professional European security standards and can be used in both private and commercial properties. Wireless connectivity with the hub and long communication range gives freedom in placing and allows you to carry DoubleButton around.
More than just alarms
Raising an alarm is the priority DoubleButton function. But not the only one. By transmitting an alarm signal, the hold-up device can activate all or specific sirens at the object. And also, run automation scenarios: trigger a smoke machine, close electric locks, lower roller shutters.
Truly effortless maintenance
The device body is resistant to temperature extremes, dust, and splashes. Buttons are designed for thousands of clicks. With a pre-installed battery lasting up to 5 years, DoubleButton does not require maintenance for a very long time.
Connecting without puzzles

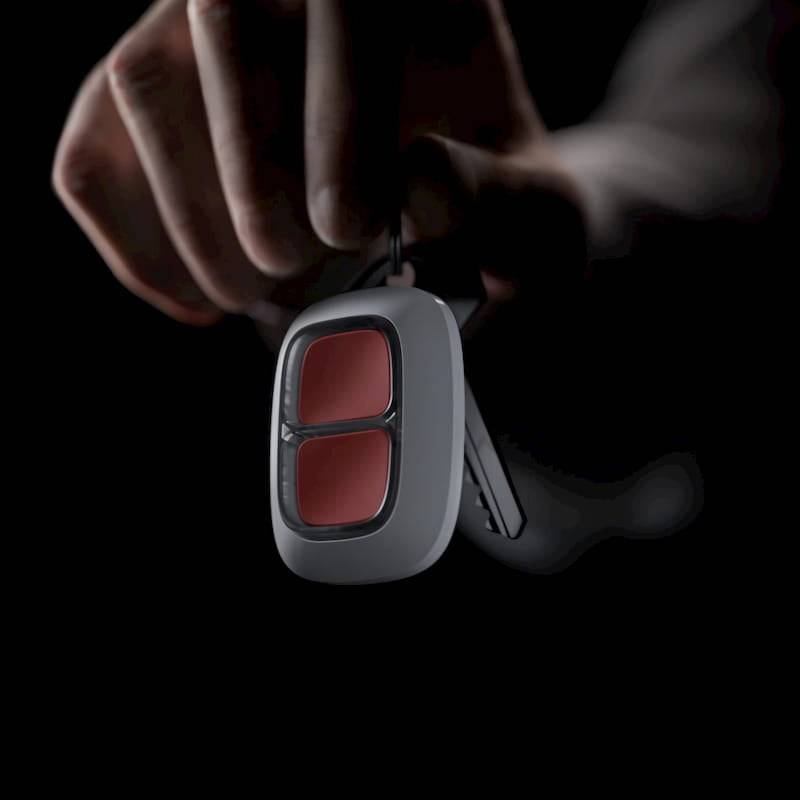

Add DoubleButton to a system and configure it all in Ajax PRO a mobile app for engineers. No need to disassemble the housing; just fix the device to a surface using Holder. Or hang it on lace or keychain. A few minutes and hold-up device is ready for use.
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms and events.
Features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration in the Ajax apps.
Specifications:
- Maximum effective radiated power (ERP): up to 20mW
- Radio signal modulation: GFSK
- Radio signal range: up to 1,300 m
- Number of buttons: 2
- Accidental press protection: both buttons pressing
- Alarm confirmation: with one DoubleButton or several
- Battery: 1× CR2032
- Dimensions: 47 × 35 × 16 mm
- Weight: 17g
- Protection class: IP55
Ajax Double Button User Manual, Tech Specs and DataSheet
User Manual
Tech Specs
