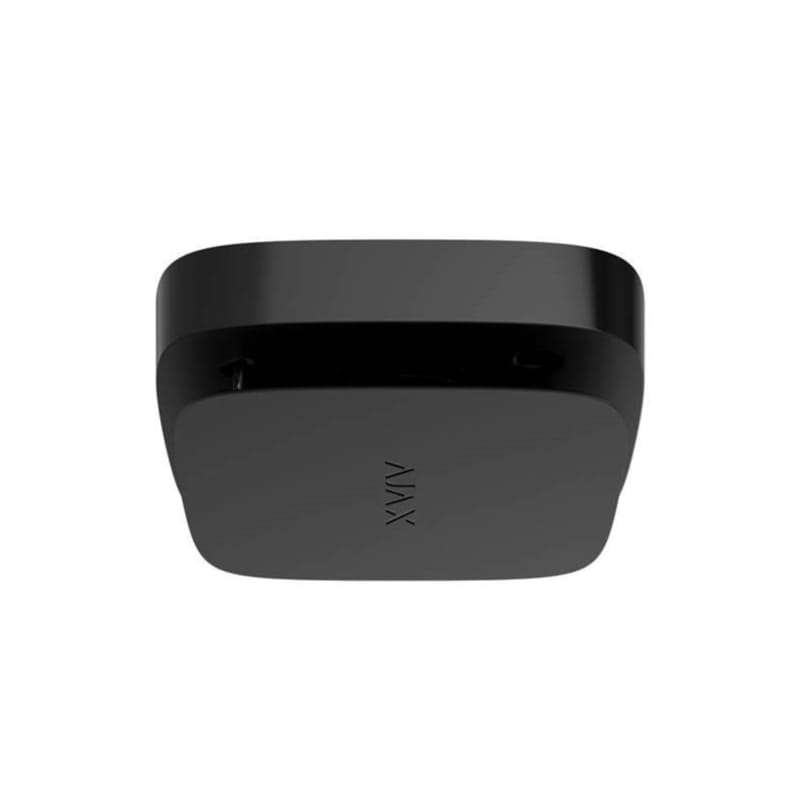

Ajax FireProtect 2 RB - Heat | Smoke

A wireless fire detector with smoke and temperature sensors. Replaceable battery version, includes 2x CR123A Batteries with up to 7 years of battery life.

Use wherever there is risk of Fire.

• Patented Smoke Chamber Technology
• Impenetrable for Dust and Insects
• Ignores Cooking Fumes and Water Steam
• Only Real Threats Considered
• Detection Even Without Smoke
• Heat Alarm
• Easy Installation and Setup
• Meets Modern Fire Safety Standards

Ajax FireProtect 2 RB - Heat | Smoke

FireProtect 2 is a next-gen detector designed for residential fire safety. The unique smoke chamber does not require regular cleaning, the dual-spectrum sensor distinguishes smoke from steam, the thermistor quickly reacts to the synthetic materials burning and sophisticated software minimises false alarms. Thought-out design, mounting and in-app settings make installation straightforward and quick. Everything meets the most modern fire safety standards.

Ajax FireProtect 2 RB Key Features

Patented Smoke Chamber Technology:

•    Inspired by global standards and best practices.
•    Dust-proof and insect-resistant for reliable detection.
•    Utilises a dual-spectrum optical sensor and proprietary HazeFlow 2 software.

Impenetrable for Dust and Insects:

•   Designed to prevent contamination for accurate detection.
•   Unique circulation mechanism ensures an unobstructed sensor field.
•   Requires no regular cleaning, providing hassle-free maintenance.

Ignores Cooking Fumes and Water Steam:

•   Equipped with a dual-spectrum optical sensor with blue and infrared LEDs.
•   Employs real-time micro-particle concentration measurement.
•   Recognises and responds only to smoke, disregarding vapours and water steam.

Only Real Threats Considered:

•   HazeFlow 2 algorithm analyses dual-spectrum sensor data in real-time.
•   Compares data to a specified pattern for accurate threat identification.
•   Raises an alarm when pattern dynamics indicate a genuine fire case.

Detection Even Without Smoke:

•   Features two class A1R thermistors for smokeless fire threats.
•   Detects rapid temperature rise during the burning of synthetic materials.
•   Thermistors located externally for swift response and elimination of delays.

Heat Alarm:

•   Triggers an alarm for a 10°C temperature increase within a minute.
•   Alerts when the temperature exceeds +64°C.
•   Ensures detection of fires, even those starting imperceptibly.

Easy Installation and Setup:

•   Well-thought-out design for straightforward installation.
•   User-friendly mounting options.
•   Intuitive in-app settings for customisation.

Meets Modern Fire Safety Standards:

•   Developed to comply with the latest fire safety standards.
•   Offers the ultimate in residential fire safety technology.
•   Upgrade to Ajax FireProtect 2 for unparalleled peace of mind.

Additional features

• In-built siren - volume 85 dB at a distance of 3 meters

Interconnected Fire Detectors Alarms

• LED indication - green is a power indication. A LED indicator on the device enclosure lights up once every 56 seconds. The indication meets the requirements of EN 50291.
• Yellow is an indication of malfunctions. A LED indicator on the device enclosure lights up when malfunctions are detected. For example, in the case of discharged batteries, contamination of the smoke chamber, or end of the service life.
• Red is an indication of fire alarms. A LED indicator on the device enclosure lights up when the detector registers a fire alarm.

Compatibility

Compatible with all Hubs and Rex's excluding the original Hub (1).

Ajax FireProtect 2 User Manual, Tech Specs & DataSheet

User Manual

Tech Specs

Technical DataSheet
