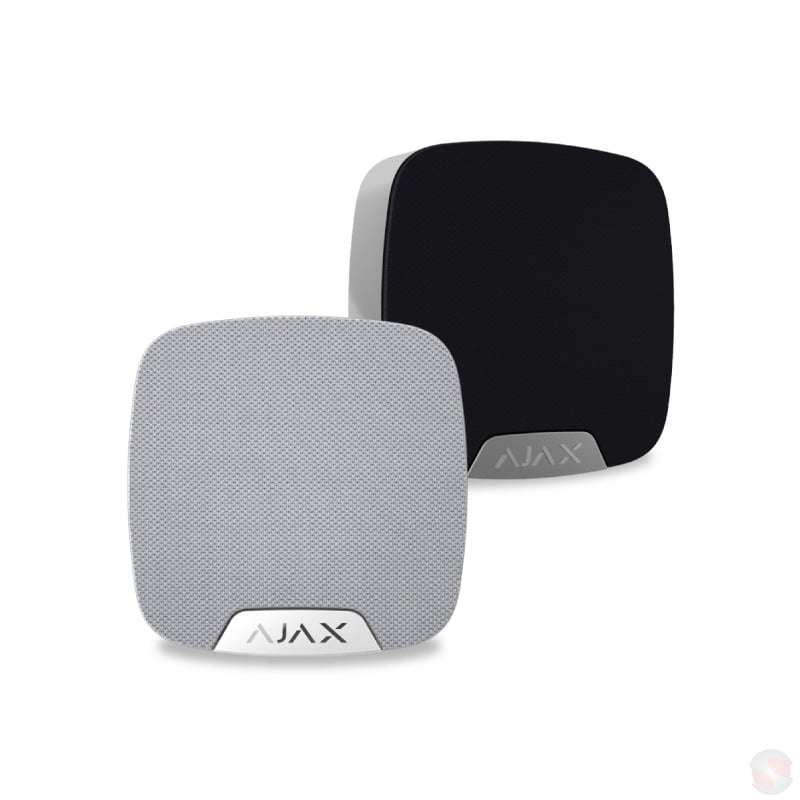

Ajax HomeSiren (Wireless Indoor Siren)

Ajax HomeSiren is an indoor siren (beeping noise) with a customisable audio time and sound level between 81 and 105 dB. It includes an external connector for 3v LED's.

• Sound volume level: Adjustable, 81 105 dB at a distance of 1 m
• Alarm length: Adjustable, 3 180 sec
• Battery: 2 x CR123A batteries, 3 V
• Battery life: up to 5 years
• Up to 2000m in an open space (in a perfect environment)
• Protection class: IP50
• Certification: Grade 2, CE
• Dimensions: 75 × 76 × 27 mm

Ajax HomeSiren - Wireless indoor siren (beeping noise)

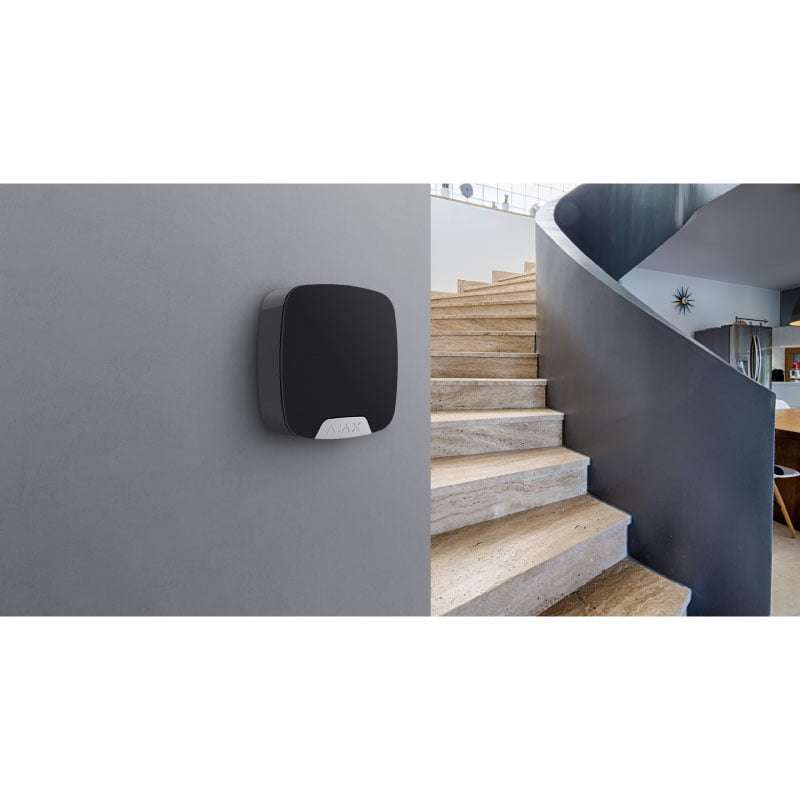

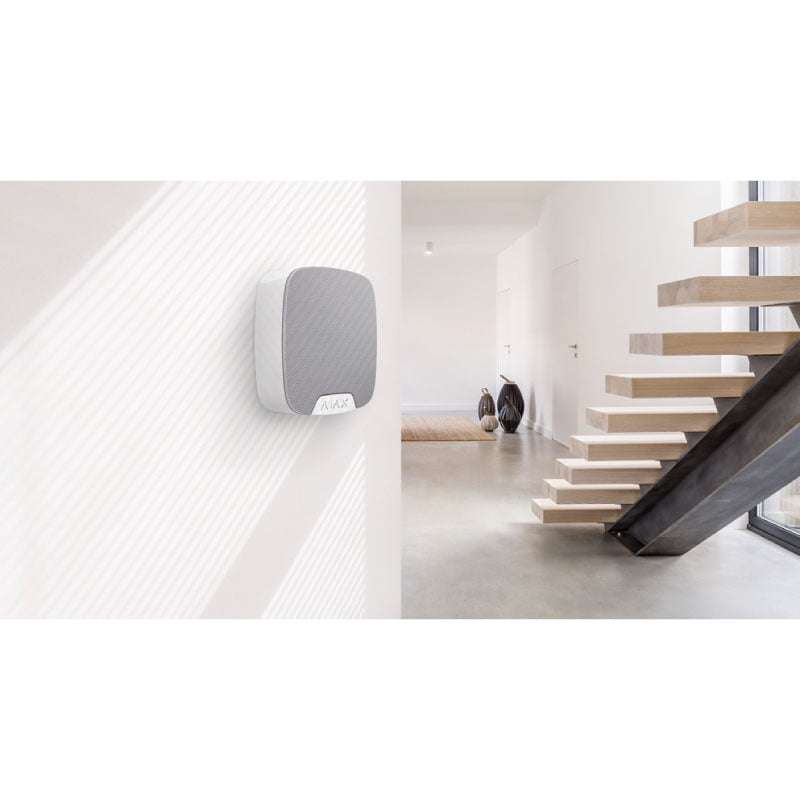

Wireless indoor siren that loudly notifies of an alarm during detector activation. It is installed indoors to warn of danger or deter intruders.

Principle of operation

The device notifies of detector activation with an audible alarm. Sound level and alarm length are set in the mobile application.

Features

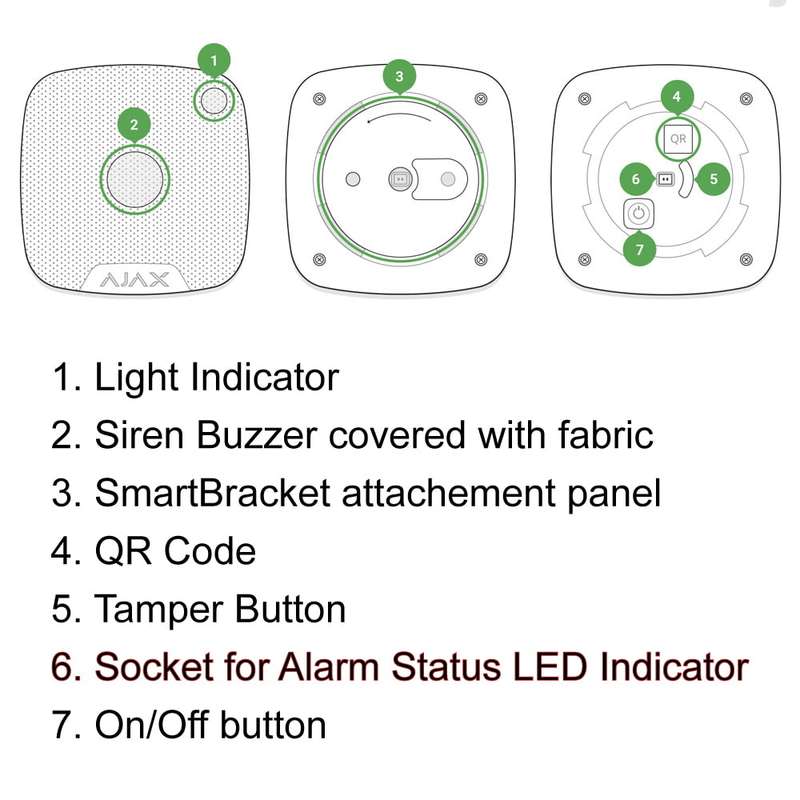

Connector for external LED is available. It can be mounted outside your apartment or office to monitor the security system status.

Installation and set up

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the siren. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Specifications:

• Maximum effective radiated power (ERP): up to 25 mW
• Radio signal modulation: GFSK
• Radio communication range: up to 2,000 m
• Frequency hopping: To prevent radio interference and jamming.
• Key features
• Alarm type: acoustic and LED indication, Buzzer and LED.
• Warning device type: type W, Internal and self-powered.
• Alarm volume: from 80 to 100 dB at a distance of 1 m, Adjusted by a PRO or a user with admin rights in the Ajax app., 93 dB at a distance of 1 m
• Alarm duration: from 3 s to 3 min, Alarm duration up to 15 minutes is available only for sirens with firmware version NA 5.60.4.14 or higher. Adjusted by a PRO or a user with admin rights in the Ajax app.
• Siren sound frequency: 3.4 ± 0.5 kHz
• Events indication

Alarms.
Delays when entering/leaving.
Security mode.
Security mode changing.
After-alarm indication.

• Tamper alarm: Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
• Power supply: 2× CR123A Batteries
• Calculated battery life: up to 5 years
• Dimensions: 75 × 76 × 27 mm
• Weight: 97 g
• Protection class: IP50
