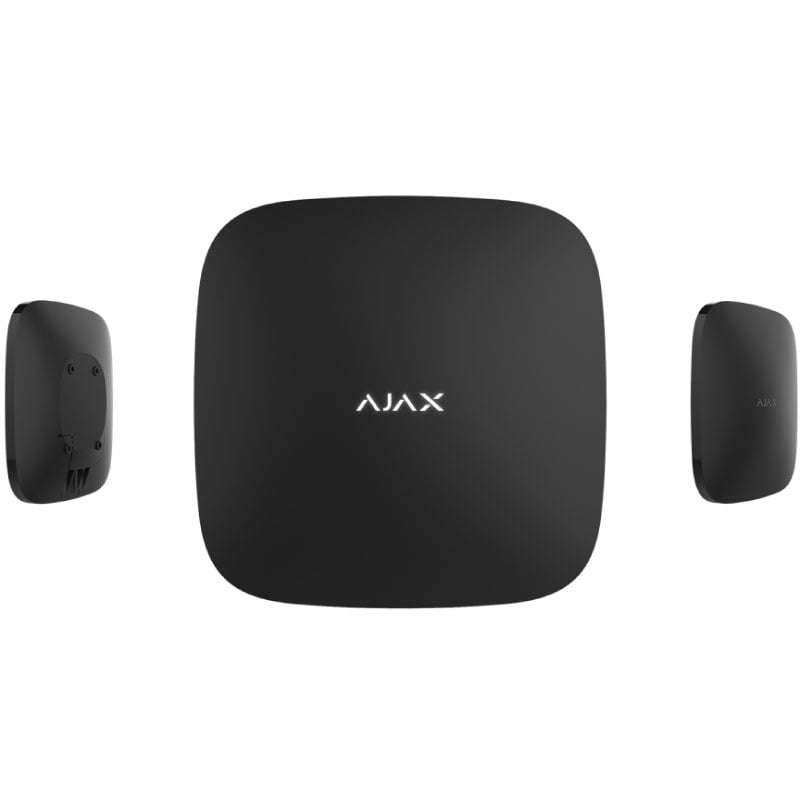

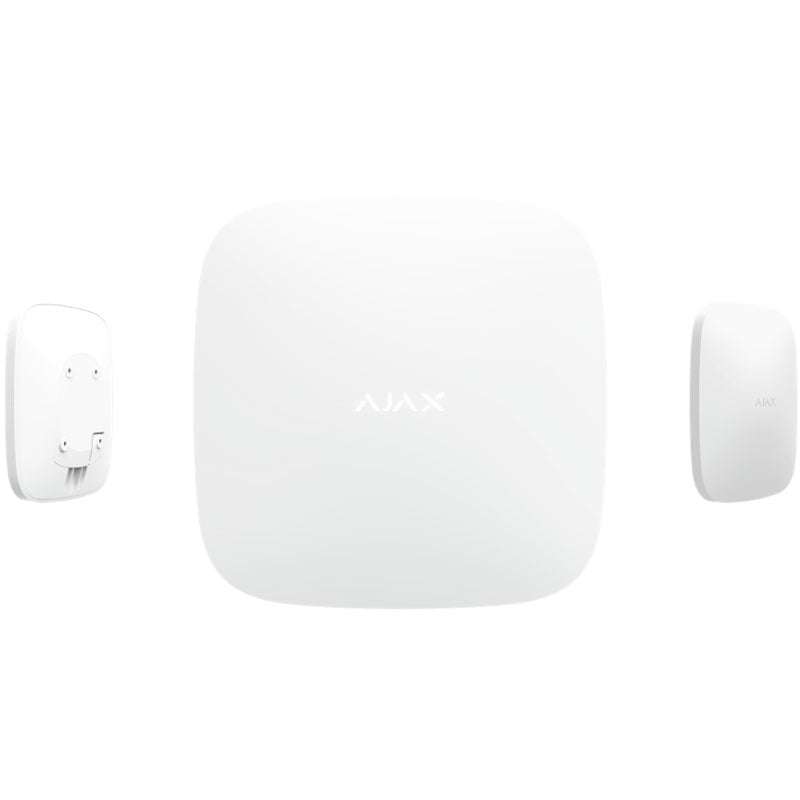

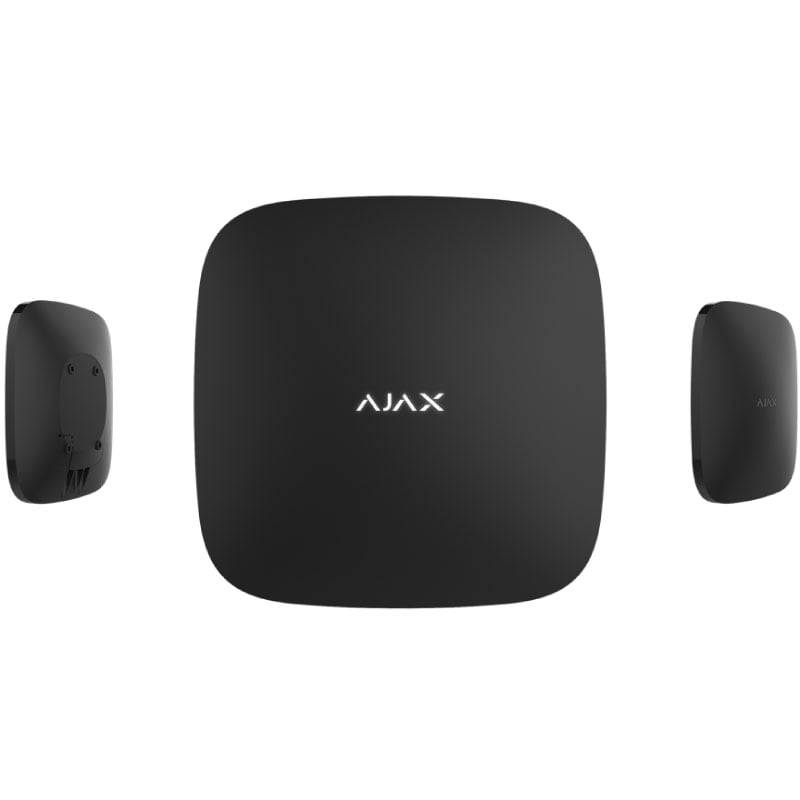

USED Ajax Hub 2 (2G)
- 100 Zones for Ajax wireless and / or wired third party devices
- 9 Groups (partitions) that can be independently controlled
- 50 Users admin settings to control user permissions to restrict access / hide groups, features and functions
- Built-in Battery Backup up to 15 hours
- Supports 32x Scenarios
- Supports 5x ReX 1 and 2 Range extenders
- Live stream up to 25x DVR's / IP Cameras
- MotionCam compatible
- Free Ajax Mobile App for Android and iOS devices
NOTE: This Hub 2 (2G) is used and out of Ajax 2 year warranty. Previous owner upgraded to Hub 2 (4G).
Ajax Hub 2 (2G) has been replaced with Ajax Hub 2 (4G).
Ajax Hub 2 (2G) - 100 Zone Control Panel including MotionCam support
Ajax is ready to work out the box. Simply connect the hub to power and internet, scan the Hub and Device QR codes using the Ajax mobile app for Android and iOS and it's ready to use.
Hub 2 (2G) Specifications:
100 Zones for Ajax wireless and/or third party wired devices (MultiTransmitter required for wired devices)
50 Users admin settings to control user permissions
50 rooms / areas
9 groups (partitions)
Live stream Ajax and 3rd Party CCTV Cameras / NVR's
Built-in:
Battery backup for up to 16 hours
Transformer (power cable included)
SIM Slots: 2x 2G SIM Slots
Ethernet IP Internet Module (cable included)
Supports:
MotionCam
5x ReX 1 & 2 Range Extenders
32x Scenarios
iOS and Android mobile applications
Features:
Geolocation
Authentication to prevent forgery
Jamming detection and communication channels encryption
Tamper alarm
Easy installation and setup
Ajax Mobile App Download:
Hub control panels are set up using the Ajax mobile app for Android and iOS devices. Wireless devices are paired to the Hub by scanning their QR Codes, no programming or technical skills required!!
Seamless Setup:
It takes minutes to install Hub. Connect it to the Internet and plug the power cord. Then scan the QR code using Ajax app. In most cases, your devices won't require any additional tuning. Hub begins to operate once online.
Alarm photo verification in 9 seconds
Hub 2 Plus works with MotionCam and MotionCam Outdoor motion detectors. When detectors are triggered, they take a series of photos. It helps to evaluate the situation at the facility. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety, and security companies from false calls of patrols.
- Motion detected
- Alarm triggered
- Evidence captured
Automates Security
Create scenarios to minimise the impact of human factor on security. Scenarios enables the Hub to arm and disarm the complete system or groups by schedule, activate smoke machines when device is triggered or shut off water when a leak is detected. Control lights, electric locks, roller shutters, and garage doors by arming/disarming, button press or alarm detection.
Future-proof
Hub 2 runs OS Malevich a real-time operating system developed by Ajax Systems. OS Malevich is extremely stable, immune to viruses, and protected from cyber attacks. Modular architecture simplifies the constant upgrading of OS Malevich.
Hub receives new features several times a year with over-the-air updates. The update process is automatic and takes minutes when the security system is disarmed. The hardware configuration will allow the Hub to evolve and remain relevant for years to come.
Armed Response Linkup
Via Cloud - There are hundreds of South African armed response companies that have the Ajax software installed on their monitoring systems. You will find a list of these companies on the Ajax mobile app. If the company of your choice is not on the list, Contact Us with the Company Name, Contact Person and Location so that we can refer them to our Ajax support team.
Via Ajax Hardware - Should your armed response company not be Ajax ready, an Ajax vhfBridge is can be used to connect to their radio transmitter. Alternatively two Ajax Relays can be connected, one for alarm and one for panic.
Power Supply:
All Ajax wireless devices are battery powered however the Hub requires power. It has a built-in 220v PSU however should you want to install the Hub in yachts, caravans, campervans, building sites or properties where no power is available, the 220v PSU can be replaced with a 6-18v PSU for a low voltage power feed and Solar setup.
Justworx IoT SIM Card for Backup to Internet Failure
Ajax Hubs rely on the internet for remote communication and includes SIM card slots for backup to internet failure. Justworx are non-steering SIM cards that automatically connect to the strongest Vodacom or MTN network in your area to ensure the Hub remains connected to Ajax cloud. Only 1x Justworx SIM card is required and includes Data for up to 30 years (dependent on selected package).
No Monthly Fees | No Subscriptions | No Recharge Fees | Data Never Expires
Ajax Hub 2 (4G) User Manual and Tech Specs
Ajax Hub 2 (2G / 4G) User Manual
Ajax Hub 2 (2G / 4G) Tech Specs
