Ajax Hub 2 4G Wi-Fi Jeweller Control Panel White
In control of security, not your private life
Hub 2 manages all the Ajax devices in the system to alert users about open doors, broken windows, threats of fire and flooding. If burglars break into your facility, Hub 2 will notify the monitoring station and send photos from the MotionCam detectors. You won't need to live under the constant supervision of the security cameras to know what's going on.
Alarm photo verification in 9 seconds
Hub 2 works with MotionCam and MotionCam Outdoor motion detectors. When detectors are triggered, they take a series of photos. It helps to evaluate the situation at the facility. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety, and security companies from false calls of patrols.
Always connected via cable and cellular networks
Communication with the outside world is critical for the security system control panel. Its reliability and stability guarantee timely alarm transmission to the security company and users.
Hub 2 can be simultaneously connected to three Internet service providers via Ethernet cable and 2G, 3G, and LTE cellular networks. The automatic switching between channels takes seconds.
Guaranteed delivery of alarms and visual alarm verifications
To ensure reliable communications, we have equipped Hub 2 with four antennas and support of two proprietary radio protocols: Jeweller and Wings. Jeweller is responsible for the transmission of commands, events, and alarms, while Wings provides batch transmission of images. Ajax two-way radio communication uses frames to synchronize device communication sessions, authentication to prevent fraud, and encryption to protect against data theft.
Flexibility at the core
The Hub 2 radio network covers several floors and separate buildings thanks to the communication range of 2,000 meters and the ability to connect five range extenders. To manage access and security zoning of the facility, the hub allows connecting 50 users and creating 9 security groups. Hub 2 is a perfect choice for home and business security.
Controlled with apps
We refrained from control buttons on the control panel body and archaic interfaces apps are more convenient and reliable. They connect to a hub via a secure channel through the Ajax Cloud server located in several AWS data centres. Server availability in 2021 was 99.995%.
Apps allow system users with administrator rights to manage the security of the facility, change settings of the hub and the devices connected to it, create scenarios, and monitor events. From a smartphone or a PC. On the site and remotely.
Automates security
Hub 2 allows creating 32 scenarios and minimizing the impact of human factor on security. The hub can arm and disarm a facility or a group by schedule. Instantly activate a smoke machine if someone enters the premises. Blackout the premises and turn on emergency lighting in case of fire. Or shut off the water in case of a leak. Control lights, electric locks, roller shutters, and garage doors by arming/disarming, button press, or a detector alarm.
Resistant to sabotage
Whatever happens to Hub 2, the security company and the users will be notified. No one can disconnect the hub unnoticed when the facility is disarmed. If an intruder attempts to dismount the device, this will trigger the tamper immediately. The Ajax Cloud server can notify about the loss of connection with the hub in 60 seconds due to frequent polling. Even if the building is de-energized, the hub will protect the object for up to 16 hours with a built-in backup battery.2
Future-proof
Hub 2 runs OS Malevich a real-time operating system developed by Ajax Systems. OS Malevich is extremely stable, immune to viruses, and protected from cyberattacks. Modular architecture simplifies the constant upgrading of OS Malevich.
Hub receives new features several times a year with over-the-air updates. The update process is automatic and takes minutes when the security system is disarmed. The hardware configuration will allow Hub 2 to evolve and remain relevant for years to come.
Hassle-free installation

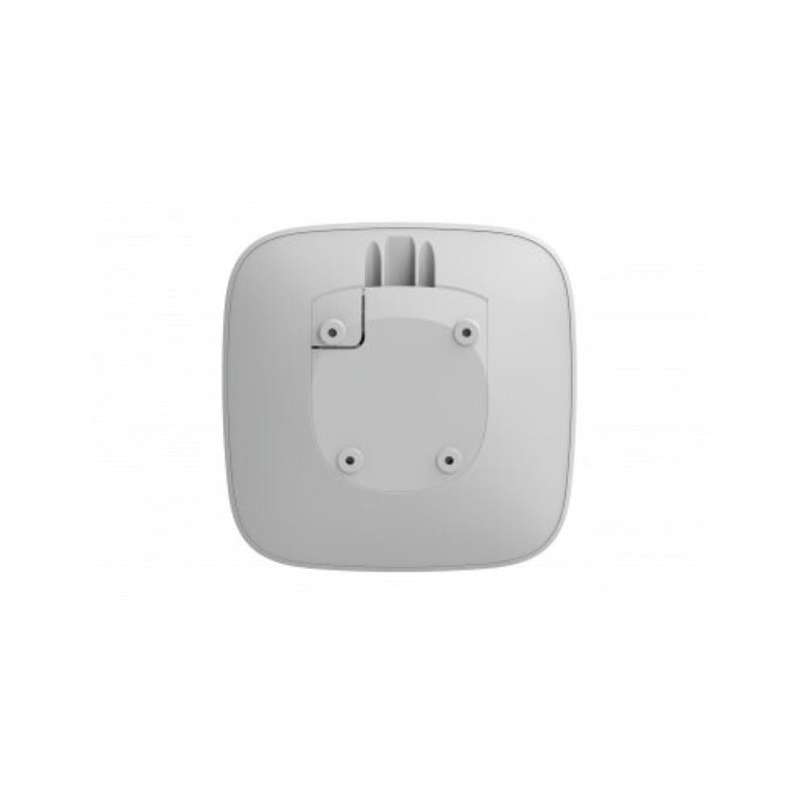

Hub 2 is ready to operate out of the box. All communication modules, power supply, and backup battery are already installed. To start setting up the system, you need to connect the device to the power supply and the Internet, insert the SIM cards, and scan the QR code through the app. With the SmartBracket mounting panel, there is no need to disassemble the device body during installation.
Connecting security devices, video cameras, users, testing the radio signal, creating groups and scenarios, even sending a request for connection to the CMS all system settings are always available in the Ajax apps. Whether you are at the site or not.
Jeweller communication technology
Proprietary wireless communication technology to transmit alarms and events.
Features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration via the Ajax apps.
Specifications:
Capacity
Wireless Ajax devices
- up to 100
- Specifically, up to 10 sirens or keypads with a built-in siren and 5 range extenders.
IP cameras or DVRs
up to 25
- Seamless integration with Dahua,
- Hikvision, Safire, EZVIZ, Uniview IP cameras, and DVRs.
- RTSP support.
Users
up to 50
- Any number of admin users within the hub limit.
- PRO accounts for installers.
- PRO accounts for installation and monitoring companies.
- Access management for users.
Automation scenarios
up to 32
- Alarm responses.
- Scheduled actions.
- Security mode changing reactions.
- Temperature changing reactions.
- Humidity changing reactions.
- Reactions to changes in COâ concentration.
- Reactions to pressing Button.
Security groups: up to 9
Rooms: up to 50
Maximum effective radiated power (ERP): up to 20 mW
Radio signal modulation: GFSK
Radio signal range: up to 2,000 m
Polling interval: from 12 to 300 s
Frequency hopping: Prevents radio interference and radio signal interception.
Communication channels
