Ajax Hub control panels are ready to work out the box and set up using the mobile application for Android and iOS devices. To learn more about the Difference between the Ajax Hubs, click HERE
Ajax Hub (4G) features:
- 100 Zones for Ajax wireless and / or third-party wired devices via MultiTransmitter
- 9 Groups (partitions) that can be independently controlled
- 50 Users admin controls user permissions or to restrict access / hide groups, features and functions
- Built-in Battery Backup up to 15 hours
- 1x 4G / LTE SIM card slot
- Ethernet port
- 5x Scenarios
- 5x ReX (1) Range extenders
- Live stream Ajax and third-party CCTV cameras
- *No MotionCam support
*Includes a free Justworx SIM card for backup to internet failure.

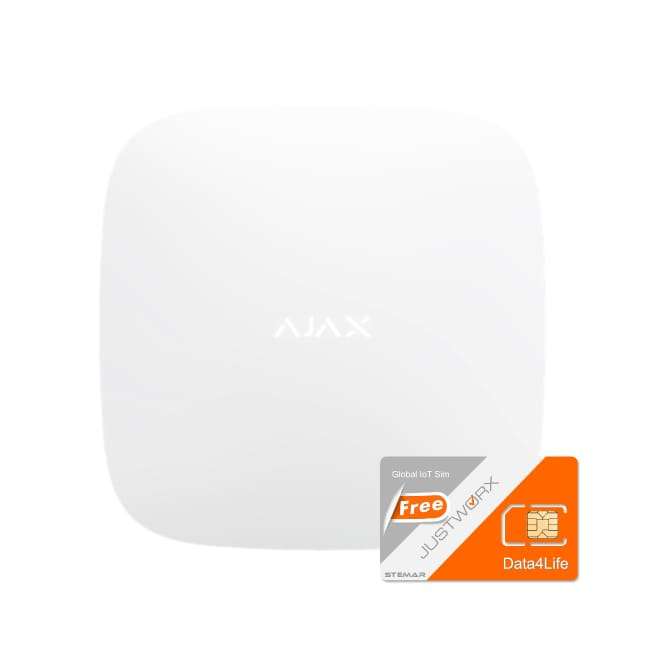

Ajax Hub (4G) including free Justworx SIM - No MotionCam Support
Ajax Hub (4G), not to be confused with Hub 2 (4G), is ready to work out the box. It includes a built-in power supply, battery, ethernet port and 1x 4G/LTE SIM slot all smartly integrated into the compact control panel enclosure.
Setting up the system is a breeze. Simply connect the hub to power and internet, scan the hub QR code using the Ajax mobile app and it's ready to use.
About Ajax Hub (4G)
Ajax Hub (4G) is based mostly on the original Ajax Hub's technology, now upgraded with a 4G SIM slot replacing the 2G slot of the initial version. Unlike the Hub 2 (4G), this model does NOT include Wings Technology and is ideal for systems that do not require MotionCam detectors or other devices listed below.
Specifications:
100 Zones for Ajax wireless and/or third party wired devices (MultiTransmitter required for wired devices)
50 Users admin settings to control user permissions
50 rooms / areas
9 groups (partitions)
Built-in:
Battery backup for up to 15 hours
Transformer (power cable included)
SIM Slot: 1x 4G (LTE) SIM Slot
Ethernet Port (cable included)
Supports:
5x ReX (1) Range Extenders
5x Scenarios
iOS and Android mobile applications
CCTV Cameras & NVR's
14x Ajax NVR's
200x Ajax Cameras / 224 Ajax Cameras via Ajax NVR's
224 third party cameras when using ONVIF via Ajax NVR's10x third party IP cameras using RTSP via SDK
Features:
Geolocation
Authentication to prevent forgery
Jamming detection and communication channels encryption
Tamper alarm
Easy installation and setup
Compatibility:
Ajax Hub (4G) is compatible with all Jeweller devices excluding the following:
Rex 2
vhfBridge
WaterStop
LifeQuality
LightSwitch
Manual CallPoint
MotionCam / PhOD
Keypad TouchScreen
DualCurtain Outdoor
MotionCam Outdoor / PhOD
Ajax Mobile App Download:
Hub control panels are set up using the Ajax mobile app for Android and iOS devices. Wireless devices are paired to the Hub by scanning their QR Codes, no programming or technical skills required!!
Seamless Setup:
It takes minutes to install Hub. Connect it to the Internet and plug the power cord. Then scan the QR code using Ajax app. In most cases, your devices won't require any additional tuning. Hub begins to operate once online.
Automates Security
Create scenarios to minimise the impact of human factor on security. Scenarios enables the Hub to arm and disarm the complete system or groups by schedule, activate smoke machines when device is triggered or shut off water when a leak is detected. Control lights, electric locks, roller shutters, and garage doors by arming/disarming, button press or alarm detection.
Armed Response Linkup
Via Cloud - There are hundreds of South African armed response companies that have the Ajax software installed on their monitoring systems. You will find a list of these companies on the Ajax mobile app. If the company of your choice is not on the list, Contact Us with the Company Name, Contact Person and Location so that we can refer them to our Ajax support team.
Via Ajax Hardware - Should your armed response company not be Ajax ready, an Ajax vhfBridge is can be used to connect to their radio transmitter. Alternatively two Ajax Relays can be connected, one for alarm and one for panic.
Hub PSU (Power Supply Unit):
Ajax Hub has a built-in 220v PSU including a battery for backup. However should you want to install the Hub in yachts, caravans, building sites or properties where no 220v power is available, the 220v PSU can be easily replaced with an Ajax 6/12/24vDC PSU for a low voltage power source and Solar setup.
Justworx IoT SIM Card for Backup to Internet Failure
Ajax Hubs rely on the internet for remote communication and includes SIM card slots for backup to internet failure. Justworx are non-steering SIM cards that automatically connect to the strongest Vodacom or MTN network in your area to ensure the Hub remains connected to Ajax cloud. Only 1x Justworx SIM card is required and includes Data for up to 30 years (dependent on selected package).
No Monthly Fees | No Subscriptions | No Recharge Fees | Data Never Expires
What's in the Box
- Hub (4G) Jeweller
- SmartBracket mounting panel
- Power supply cable
- Ethernet cable
- Installation kit
- Quick start guide
- Free Justworx SIM Card
Ajax Hub (4G) User Manual and Tech Specs
