Ajax Keypad Plus includes a Card / Tag reader for arming / disarming
- Keypad type: Capacitive touch keypad
- Installation: Indoor only
- Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX / Rex 2 with OS Malevich 2.11 and higher
- Personal passcodes: Yes
- Passcode guessing protection: Yes
- Duress code: Yes
- Contactless access: DESFire® EV1, EV2 ISO14443- (13,56MHz)
- Power supply: Batteries: 4 lithium AA (FR6) Voltage 1.5V
- Battery life: up to 4.5 years
- Temperature sensor: Available
- Jeweller radio technology: Up to 1,700 m Two-way communication between devices
- Operating frequencies 868.0868.6 MHz
- Anti-sabotage: Authentication, Jamming detection, Tamper notifications
- Operating temperature range: From -10°C to +40°C
- Operating humidity: Up to 75%
- Weight: 267 g
- Dimensions: 165 × 113 × 20 mm

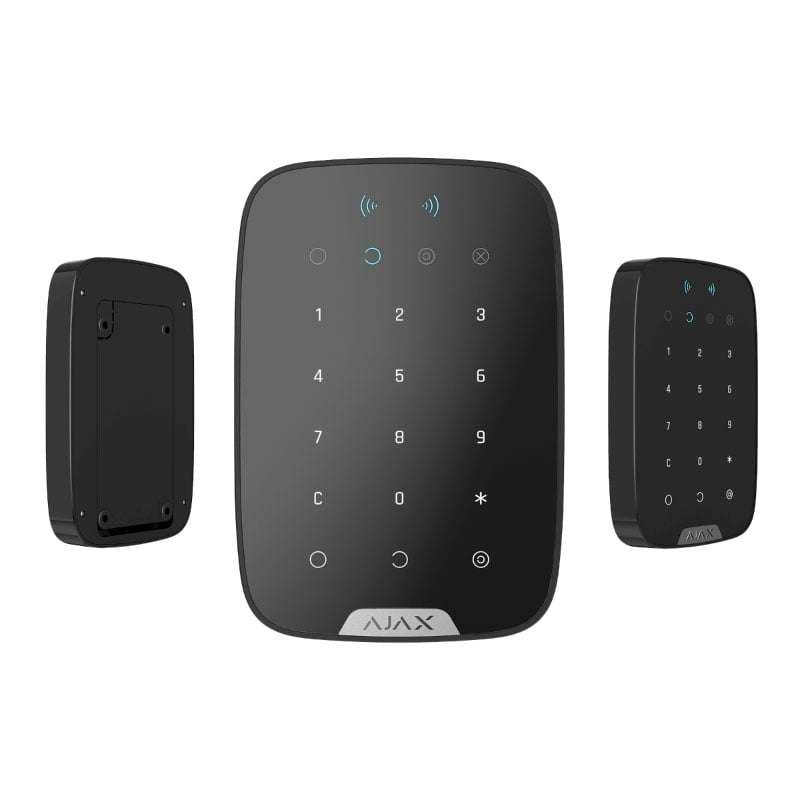

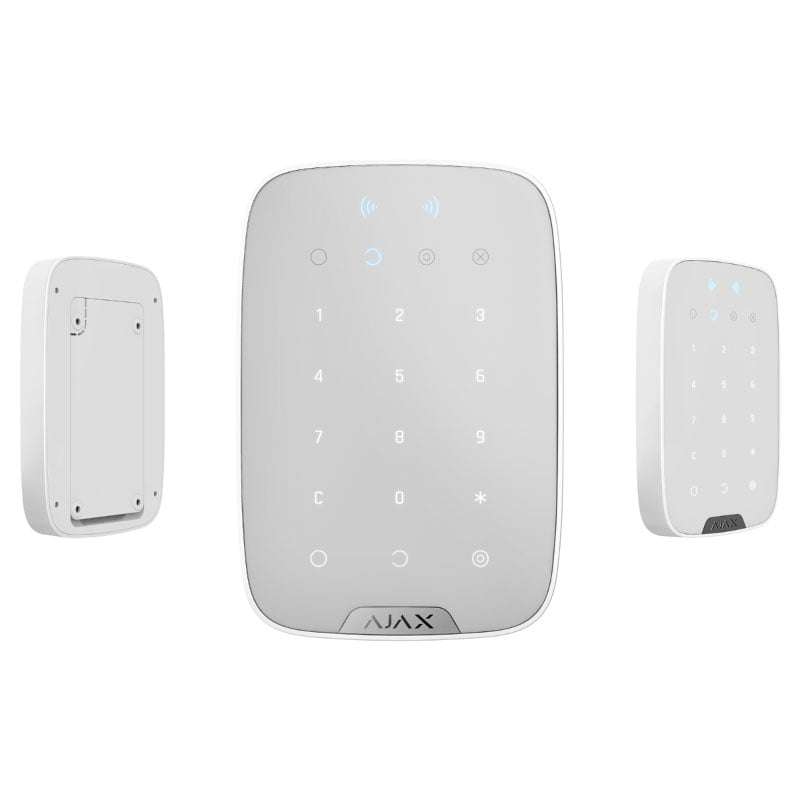

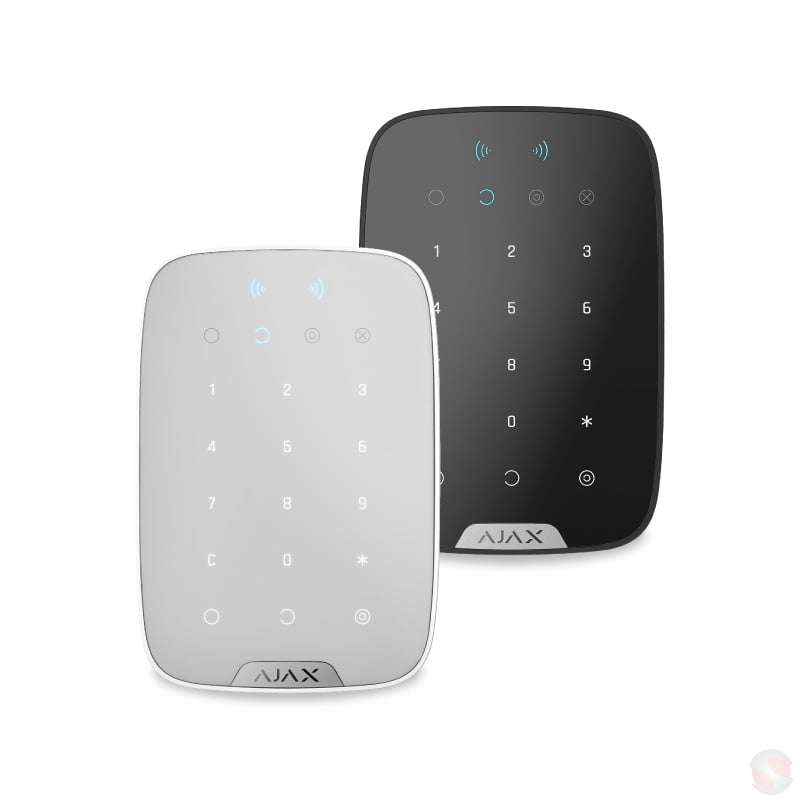

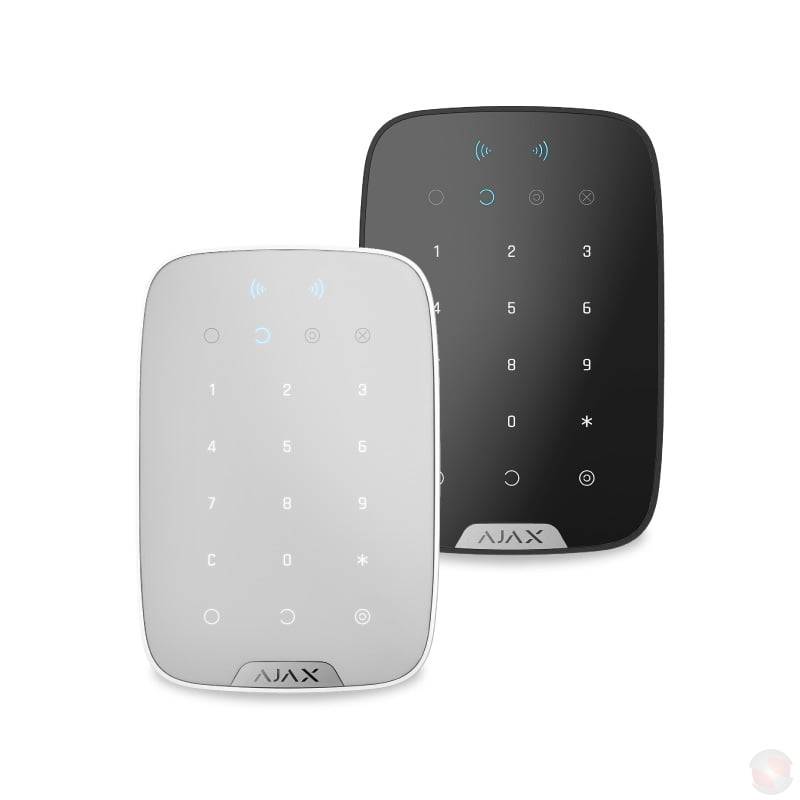

- Available in Black & White
Ajax Keypad Plus
Contactless control without reliability compromises

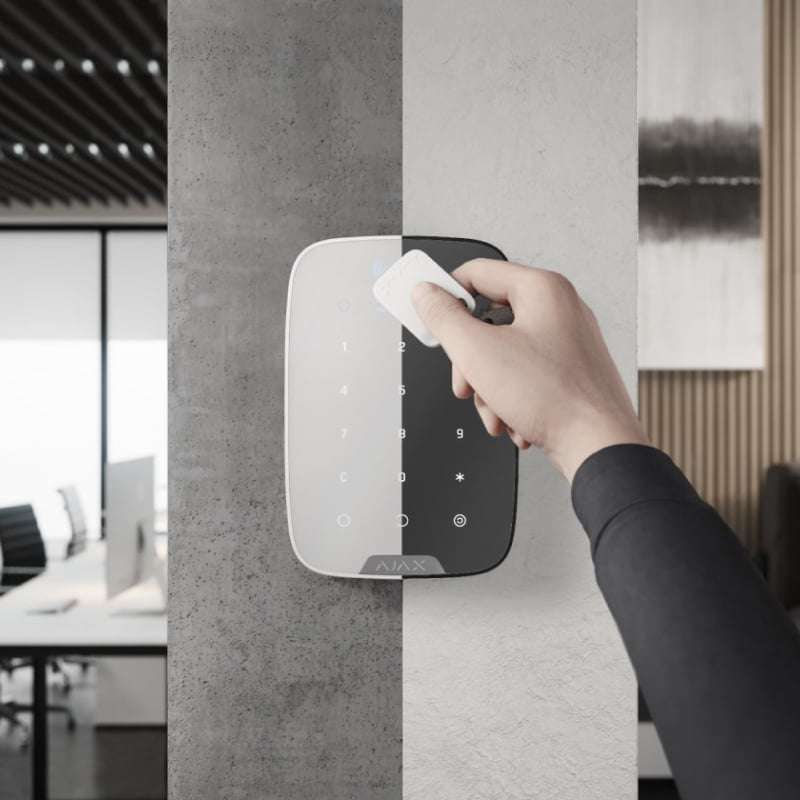

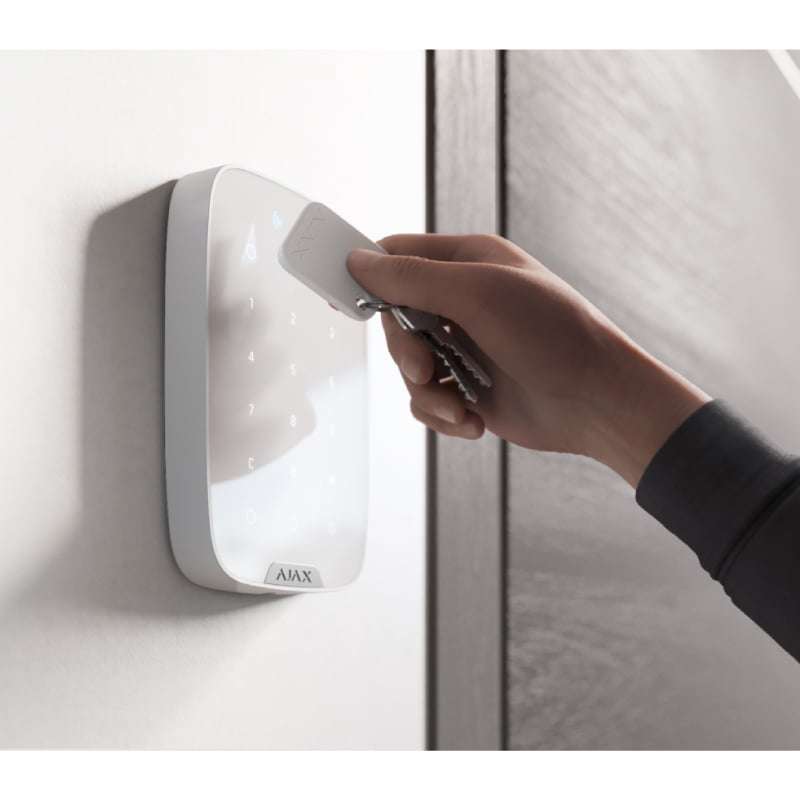

KeyPad Plus is a combination of design, advanced encryption technology and elaborated user experience for the most straightforward and protected security management. Arm and disarm Ajax, activate Night Mode and manage specific groups with a Pass card or Tag key fob.
Top-tier data protection
To identify users quickly and securely, KeyPad Plus features the DESFire® technology. It is the best-in-class contactless solution to identify a user by card or key fob.
DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA.
Outstanding autonomy
The all-new KeyPad Plus firmware gets the most out of the pre-installed batteries. Even with daily use of the contactless identification function, the keypad will work for 3.5 years without replacing batteries. And with the card and key fob reader disabled, the battery life reaches 4.5 years. KeyPad Plus will warn a monitoring station and users in advance about the need to replace the batteries.
Remote access control
Set up personal passcodes to know who and when disarmed the system: a username is displayed in the notification and in the event log. Pass or Tag can also be assigned to a specific user with defined permissions to control security of specific groups or the entire site. Ajax app allows you to manage access permissions in real time. You can limit, extend, or instantly block access.
Adding users. Fast and easy.
Ajax systems support up to 200 Tags or Passes. When adding them, you do not need to create Ajax accounts for new users, you just need to name a device and define access permissions. This makes it easier to delegate access to the system control to temporary employees or incoming staff.
Security mode indication
Light and sound indication of KeyPad Plus allows controlling the security status without the Ajax app. The volume and brightness of the backlight is adjustable.
- Armed
- Disarmed
- Night mode
- Malfunction detected
Multilevel anti-sabotage system:
Tamper
Users and a security company receive a notification when someone removes the keypad from the mount
Blocking when guessing a passcode
Three wrong passcodes entered in a row block the keypad and trigger an alarm
Authentication
If there is an attempt to use an invalid card or key fob, the system activates an alarm
Polling intervals
The system detects the communication loss with the keypad in less than a minute
Silent alarm transmission to a monitoring station
If attackers force to disarm the system
Duress code allows you to simulate disarming via KeyPad Plus. The user is not disclosed by sirens, the app and the keypad indication, but the alarm signal is instantly transmitted to a central monitoring station.
Ajax Keypad Plus User Manual, Tech Specs and DataSheet
User Manual
Tech Specs
Technical DataSheet
