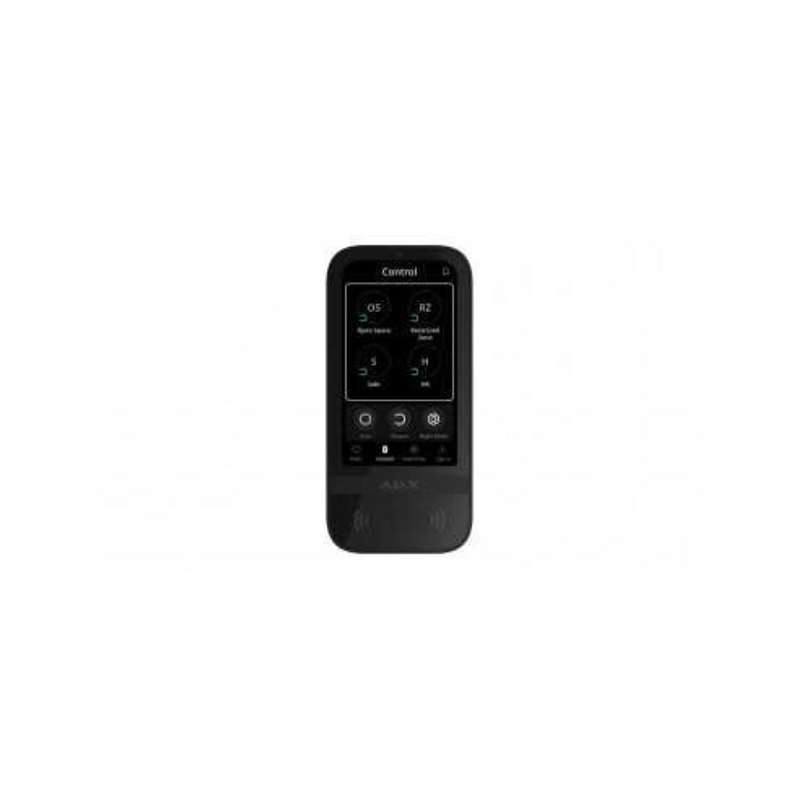

Ajax KeyPad TouchScreen Wi-Fi Jeweller Black
Convenient Ajax system control
KeyPad TouchScreen combines security and smart home device management. An intuitive Ajax app-like interface and multiple language options make it an easy-to-use solution. The big display, DESFire and BLE technologies, and code options ensure a secure and efficient experience
Security management
Easily manage security for multiple groups. Users can view what's armed and make changes with just one touch whether it's securing one group, multiple groups, activating night mode, or arming facility. It's all simple and straightforward.
Smart Home Control
The keypad features a separate control tab for automation devices, with the capacity for up to 6 buttons. Groups simplify the process of controlling multiple automation devices: switches, relays, sockets, and others. For instance, users can assign all LightSwitches to one button and easily turn off all the lights in the entire house when they go to bed.
Sound and Malfunction Notifications
Stay always informed with the built-in buzzer, receiving notifications about alarms, door openings, and entry/exit delays. PRO can effortlessly adjust the sound volume on a smartphone or PC. Remain one step ahead with the keypad's malfunction notifications during arming.
Three authentication methods
There are three easy ways to control the keypad, giving users the flexibility to choose what suits them best. All events display in the feed, including user activity and authentication details.
Contactless access devices
The Pass card and the Tag key fob are equipped with original DESFire® chips and feature the same functionality but different enclosures. You can choose the form that is convenient for you. One Tag or Pass can control 13 security systems. Access devices are sold separately in batches of 3/10/100 pieces.
Access for unregistered users
With a simple assignment of a personal access code in the hub settings, office employees, cleaning company staff, or other individuals enter the area with convenience at its finest.
Full protection in case of emergency
KeyPad TouchScreen provides a tab with configurable panic buttons that can notify about three event types. If the user is forced to disarm the system, they can use a duress code. It simulates disarming and simultaneously sends an alarm to the security company.
Unique touch screen operation experience
A high-resolution screen accommodates all necessary controls, ensuring a visually stunning and high-quality image. With automatic brightness adjustment and sleek glass material, the product offers aesthetics and convenience.
Batteries
Wire-free installation ensures a quick setup process for seamless operation. With Ajax apps providing low battery warnings, security will never be compromised.
Unique wireless technologies
KeyPad TouchScreen uses Jeweller and Wings proprietary radio protocols for reliable communication.
Intuitive setup and installation
It is easy to pair KeyPad TouchScreen with a hub: all you need is to scan the QR code. No enclosure disassembly or battery installation required. PRO Desktop is available for professional monitoring.
Specifications:
Maximum effective radiated power (ERP): up to 20 mW
Radio signal modulation: GFSK
Radio signal range: up to 1,700 m
Frequency hopping: Radio communication uses frequency hopping to prevent interception and jamming.
Display
Diagonal: 5
Matrix type: IPS
Resolution: 480 × 854 px
Sensor: capacitive
Brightness settings
Backlight lifetime: 30,000 hours
Panic buttons
- panic
- fire
- auxiliary help
Control
- codes
- Tag key fobs
- Pass cards
- smartphone (Bluetooth)
Contactless access: DESFire® EV1, EV2, ISO14443-ÐÂ (13.56 MHz)
Access codes
up to 200 personal codes: One code per each user. The number of personal access codes depends on the hub model.
1 keypad code: Per each KeyPad TouchScreen.
Duress codes
up to 200 personal codes: One code per each user. The number of personal duress codes depends on the hub model.
1 keypad code: Per each KeyPad TouchScreen.
Codes for unregistered people
up to 99 personal codes: For people who are not registered in the Ajax system. The number of such codes depends on the hub model.
Arming without entering a code: The enabled feature allows the user to arm the system without entering a code or presenting the access device.
Group management: Changing the security mode of the groups to which the user has access from the keypad's display.
Scenarios management: A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices.
Indication of malfunctions and security mode
- display
- logo
- sound indication
Fire alarm muting: Turns off the fire detectors alarm, including the interconnected alarm.
User pre-authorization: When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad.
Contactless authorization with a smartphone: A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher.
Auto screen wakeup: The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app.
Remote firmware update: When a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps.
