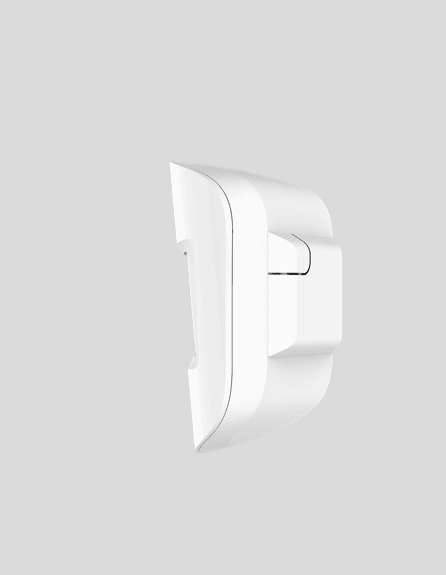

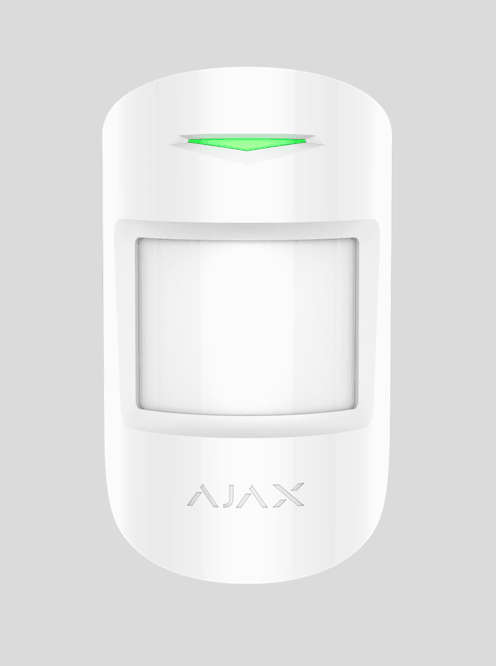

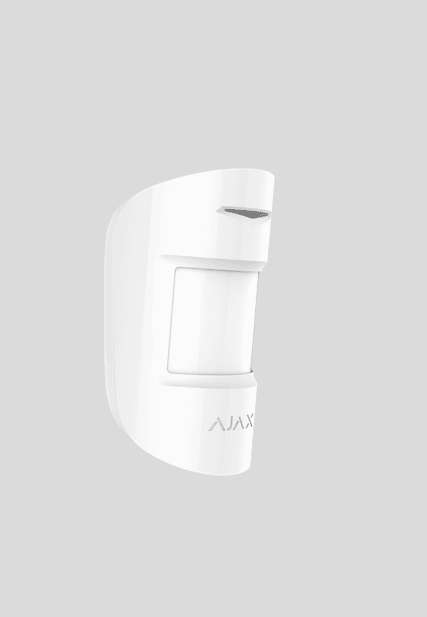

Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion. Designed for rooms with air conditioners, fireplaces and where there is a likelihood of light flickering, glare and reflections.
Principle of operation
Detects human presence by temperature difference with background thermal radiation. The microwave sensor prevents false alarms caused by complex interference.
Features
Designed for operation in rooms with fireplaces and air conditioners. Detects and ignores draughts, movement of curtains and blinds, and light flickering, glare and reflections.
Installation and set up

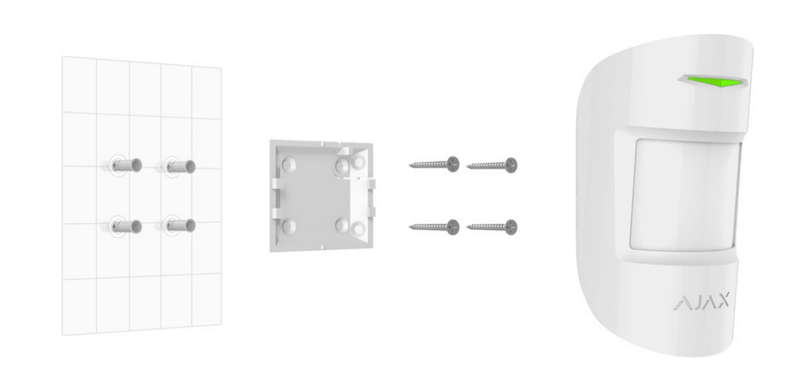

Ready to operate straight out the box. The battery is already installed inside, therefore there is no need to disassemble the detector. It can be mounted in just a few minutes using the Smart Bracket mount.
Tech specs
Classification
Electro-optical combined radio channel security detector
Type of detector
Wireless
Installation method
Indoors
Compatibility
Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing element
PIR sensor, microwave sensor (24 GHz)
Alarm signal delivery time
0.15 s
Motion detection distance
Up to 12 m
Detection angles
Horizontal — 88.5°
Vertical — 80°
Time for motion detection
From 0.3 to 2 m/s
Sensitivity
Adjustable, 3 levels
Recommended installation height
2.4 m
Pet immunity
Weight — up to 20 kg
Height — up to 50 cm
Power supply
Battery: CR123A battery, 3 V
Battery life
Up to 5 years
Learn more
Jeweller radio technology
Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Radio frequency bands:
866.0 — 866.5 MHz
868.0 — 868.6 MHz
868.7 — 869.2 MHz
905.0 — 926.5 MHz
915.85 — 926.5 MHz
921.0 — 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12300 s
Learn more about Jeweller
Temperature sensor
Available
Operating temperature range
From 10° to +40°
Permissible humidity
Up to 75%
Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant
Remote setting and testing
+
Dimensions
110 × 65 × 50 mm
Weight
96 g
