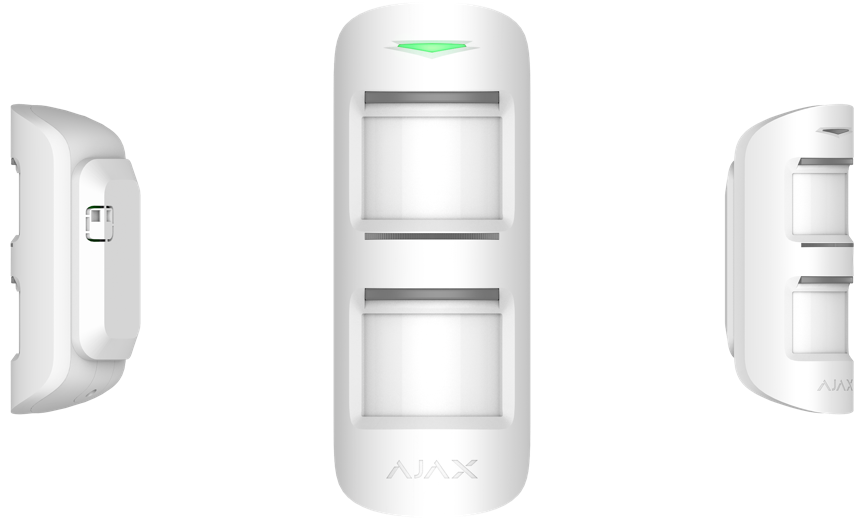

Wireless outdoor motion detector with intelligent protection against false alarms. The device operates at low temperatures and is protected against dust and splashes.
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Tampering alarm
Detects movement at a distance up to 3—15 meters | Ignores pets with a height of up to 80 cm | Operates up to 5 years without battery replacement |
LISA intelligent algorithm for false alarm prevention
Accurately detects people

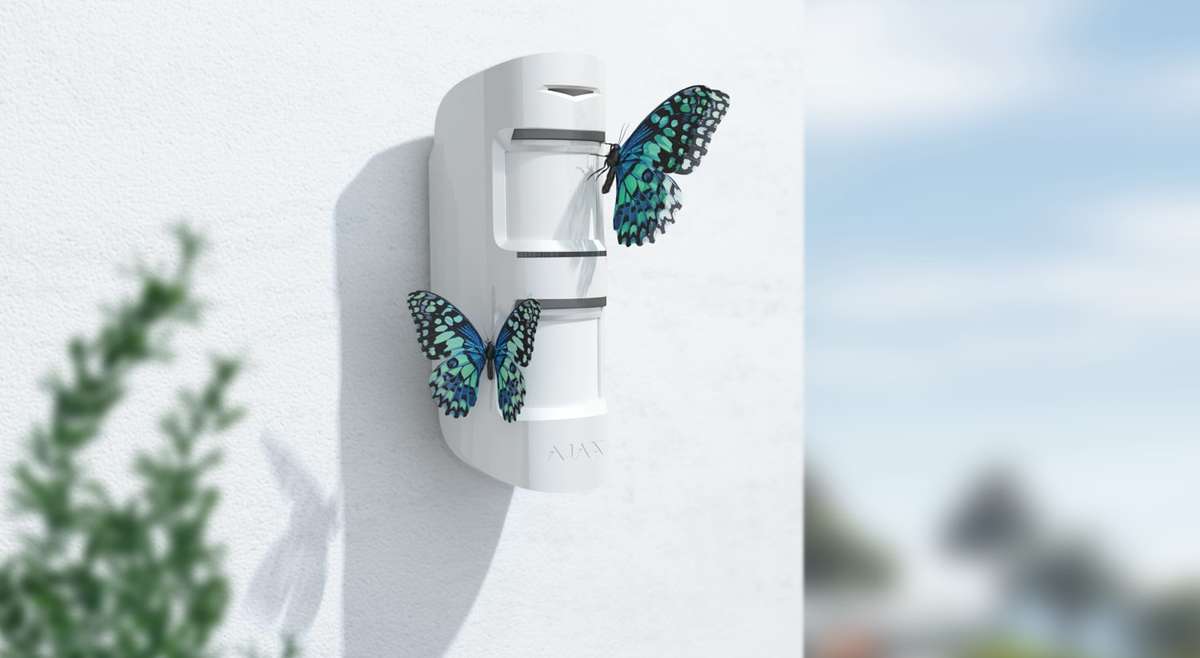

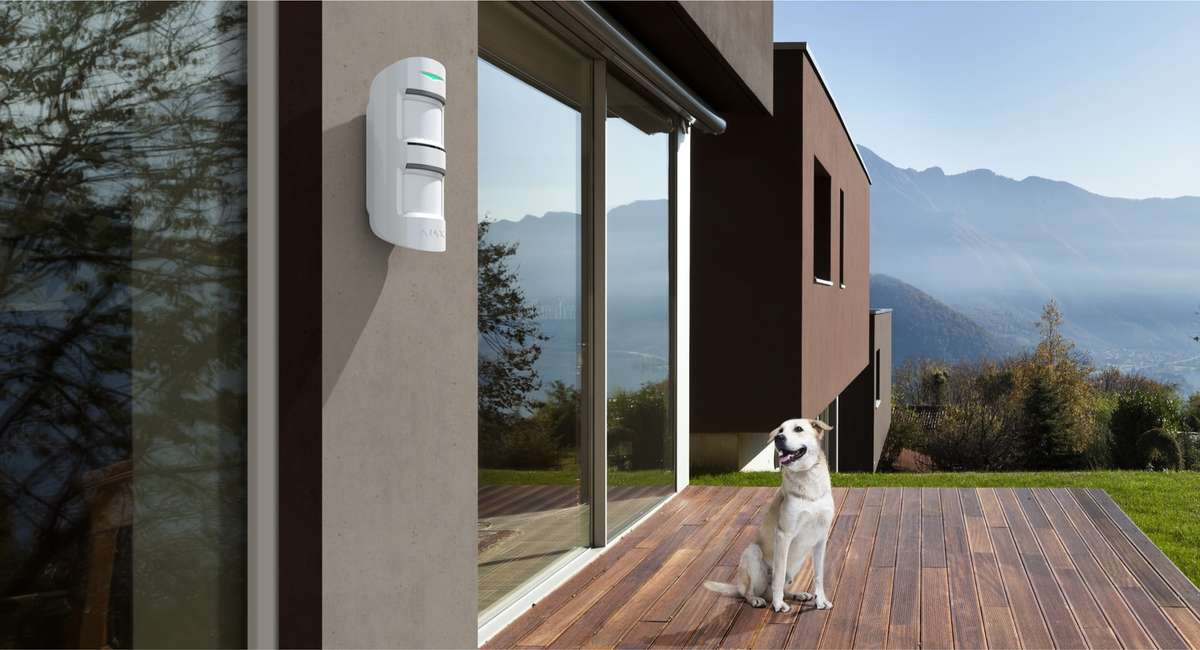

LISA turns MotionProtect Outdoor into a formidable barrier for intruders. The digital algorithm accurately identifies the movement of a person while ignoring animals, swaying of trees and plants as well as birds and insects that land on the detector.
Ignores all unimportant events
LISA analyses the similarity of signals originating from two sensors in two stages. If the signals appear similar during the first stage but the detected similarity is insufficient to trigger an alarm, the comparison of the spectral components is initiated. It helps to ignore trees swaying in the detector's field of vision.
* The detector ignores bushes up to 80 cm high and trees whose crowns cross only the upper beam
Prevents intrusions invisible with the naked eye
The MotionProtect Outdoor features the maximum possible protection for outdoor detectors. The anti-masking function, which is on around the clock by default, detects installation of barriers, pasting over, application of paint or transparent coating on one or two lenses. The integrated tamper alarms if the dust- and moisture-proof detector body is opened.
- Anti-masking
- Detects painting and pasting of the detector
- Protection against unauthorized opening
Ready to operate straight out the box

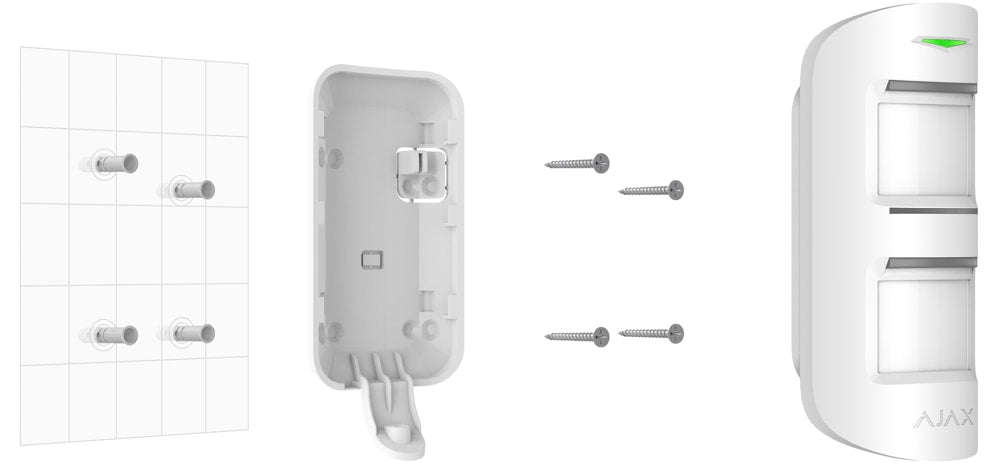

MotionProtect Outdoor comes with pre-installed battery, so you do not need to disassemble it. The detector can be connected to the hub by one click in the mobile application. It can be mounted at a height of 0.8 to 1.3 meters on the SmartBracket in just a few minutes. Although the complete battery life is 5 years, it is possible to connect external power supply.
Pre-installed batteries | Mount for quick set up | Mobile application for configuring and testing |
Tech specs
Classification | Electro-optical radio channel security detector |
Type of detector | Wireless |
Installation method | Outdoors/indoors |
Compatibility | Operates only with Hub, Hub Plus and ReX |
Sensing element | Two PIR sensors |
Alarm signal delivery time
| 0.15 seconds |
Motion detection distance | Adjustable, up to 3—15 m |
Detection angles | Horizontally—90° |
Sensitivity | Adjustable, 3 levels |
Recommended installation height | 0.8—1.3 m |
Pet-immunity | Weight — not relevant Height — up to 80 cm |
Power supply | Power supply: 2 x CR123A battery Power supply voltage: 3 V Battery life — up to 5 years Mains supply: DC 12 V±20% |
Jeweller radio technology | Communication range with central unit — up to 1,700 m in an open space Two-way communication between devices Operating frequencies — 868.0−868.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Detector polling period — 12−300 s
Learn more about Jeweller > |
Temperature sensor | Available |
Operating temperature range | From −25°С to +60°С |
Operating humidity | Up to 95% |
Protection class | IP55 |
Anti-sabotage | Anti-masking Protection against fraud Jamming detection Tamper-resistant |
Remote configuration and testing | + |
Dimensions | 183x70x65 mm |
Weight | 322 g |
Certification | Conforms to the requirements of CU TR 020/2011 «Electromagnetic compatibility of technical means», EAC |
Certification | DSTU EN 50131 |
Warranty | Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.
Learn more > |
Complete Set | MotionProtect Outdoor motion detector SmartBracket mounting panel Two CR123A batteries (pre-installed) Installation kit User's guide |
