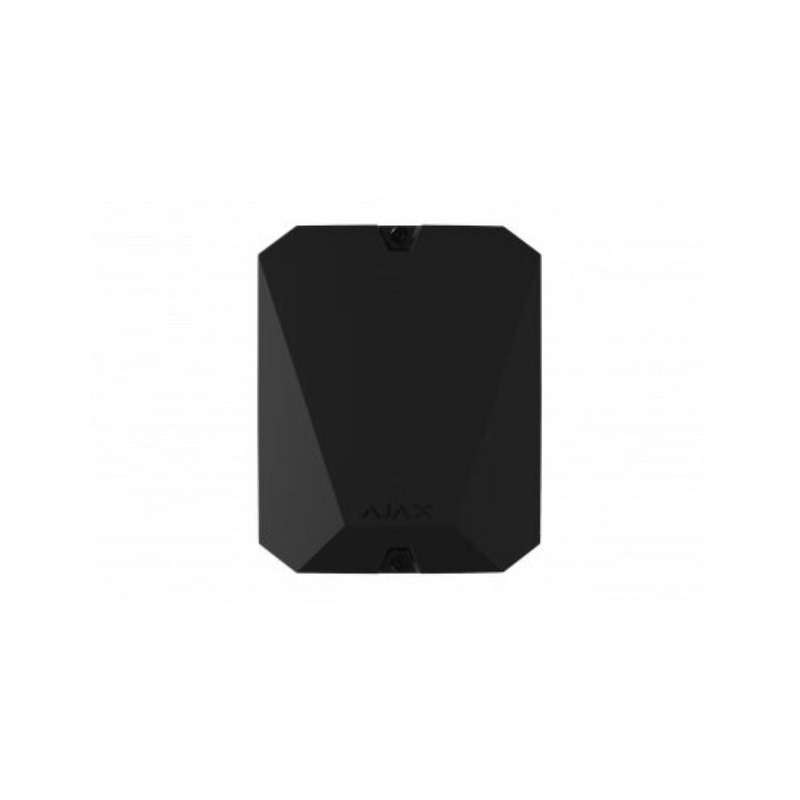

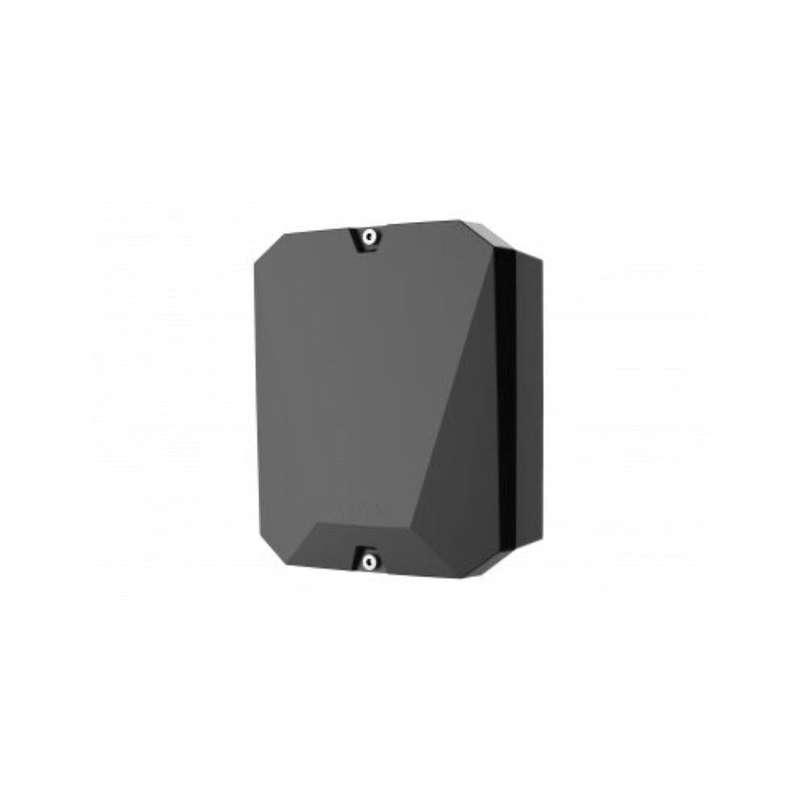

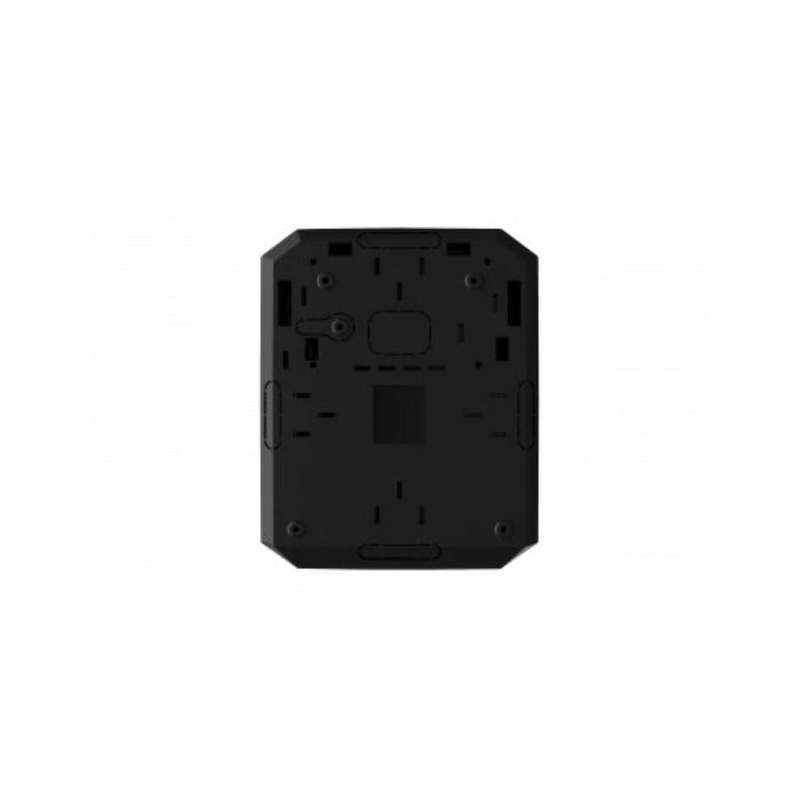

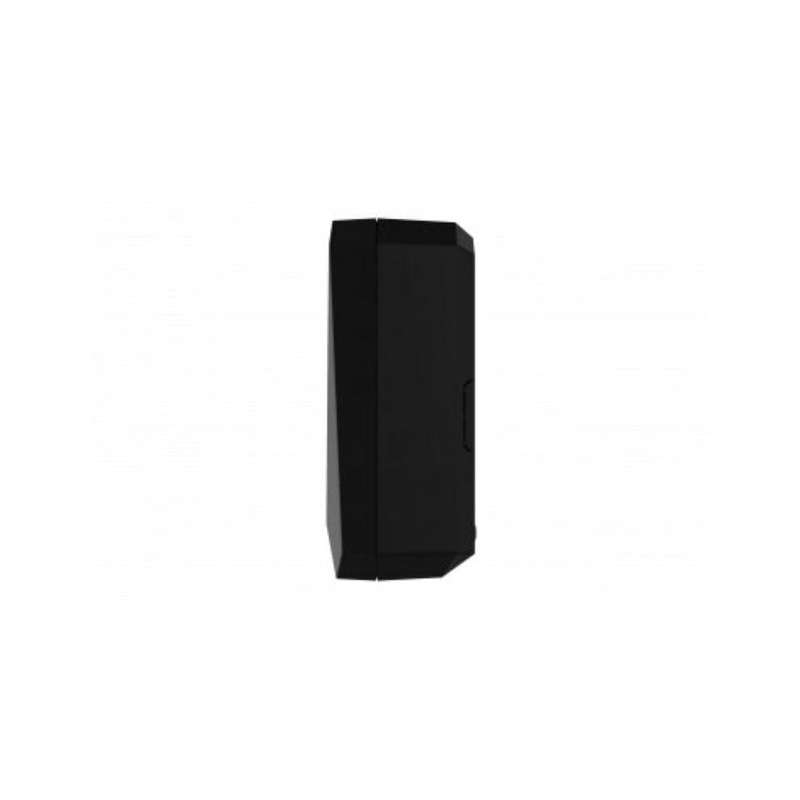

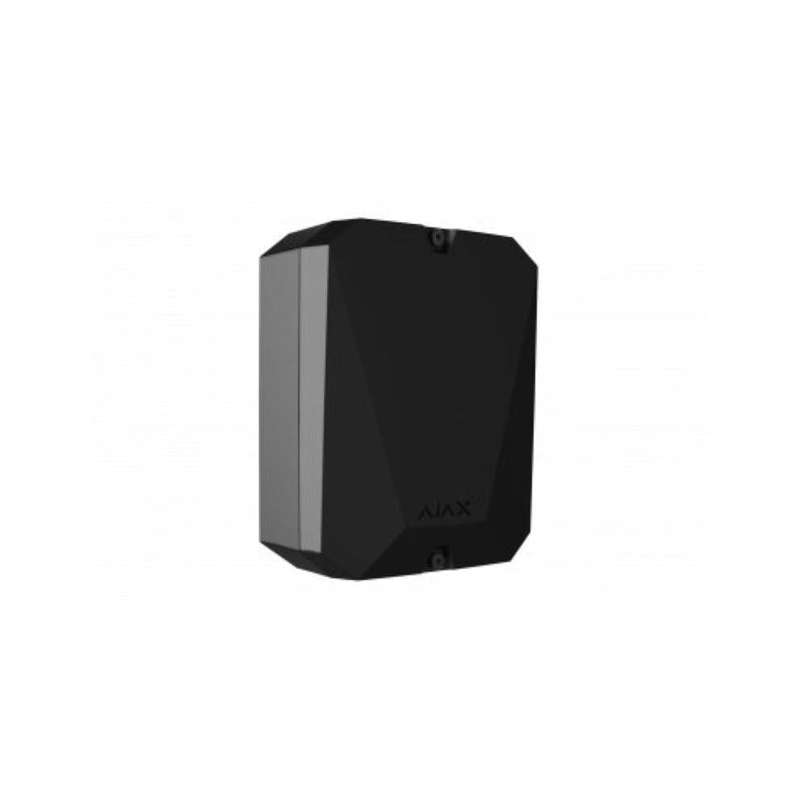

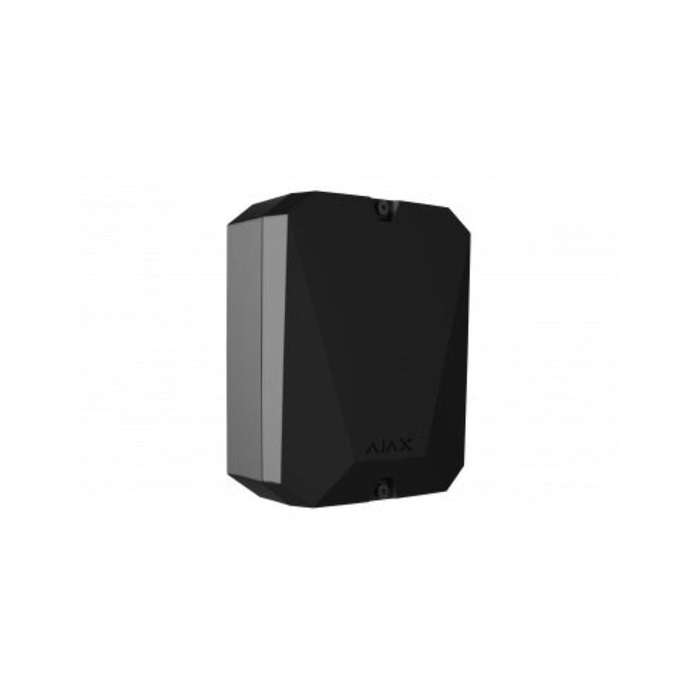

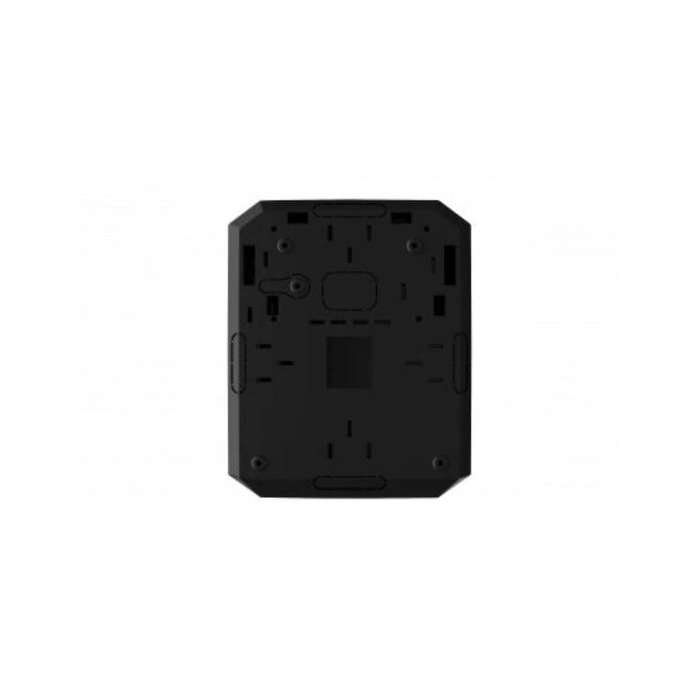

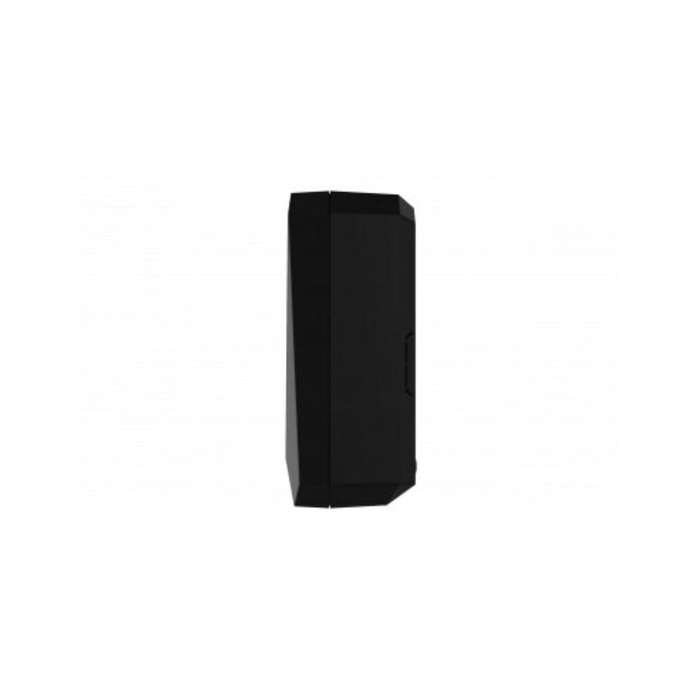

Ajax MultiTransmitter Wi-Fi Jeweller Black
The second life of an old wired alarm
We understand how difficult it is to decide on a wired alarm upgrade. It is a common situation when your system is still capable of protecting your property but is clearly outdated. Renovating with Ajax doesn't force you to leave behind the current equipment. It gives you a chance to build modern complex security based on existing wired equipment.
Security via smartphone
With MultiTransmitter, system users get security control via app, data-rich notifications, and automation scenarios. An installer can set up the system or device in the PRO-app, both while on-site and remotely
More Ajax features
Perimeter IR detectors, household gas sensors, thermostats, float sensors, keypads, and other devices are ready to expand the Ajax areas of use. Connect them to a hub via MultiTransmitter and manage the combined security system in the Ajax app.
Less hassle with automated security
Use automation scenarios so that the security system instantly responds to threats without waiting for police. Ajax will be armed by schedule, turn on the light by the alarm of a motion detector, switch off the potential cause of ignition at the first sign of fire. With MultiTransmitter, an old alarm system becomes part of a safe and smart home.
Data-rich alarms
With MultiTransmitter, you can specify the device name, the type of alarm, and a room for each wired device. This makes notifications more informative — you know not just what happened but where. This information is displayed using push notification, SMS, and is also sent to the security company's monitoring station using an appropriate code. Numerous event types are available: intrusion, fire, auxiliary alarm, panic button, gas alarm, malfunction, leakage, etc.
Unique wireless technology
MultiTransmitter communicates with a hub via an encrypted Jeweller radio protocol. This is a TDMA technology developed by Ajax Systems for uninterrupted communication with devices. Jeweller detects jamming attempts, switches to the backup frequencies in case of interference, and allows Ajax wireless devices to run on battery power for years.
Security without barriers
When using radio signal range extenders, Ajax security system's radio network can cover up to 35 km2. But if some rooms are impermeable to radio waves, connecting wired devices via MultiTransmitter is the best solution. The length of wires can reach 400 meters.
Protected against sabotage
MultiTransmitter will inform you instantly if the connected devices have been interrupted with short circuit, disconnection of the signal cable, or tampering alarm. Electricity loss at the site will not be a problem either — the backup battery can provide power to devices for up to 4 days. MultiTransmitter body itself is equipped with two tampers that respond to removal of the integration module from the surface and removal of the lid.
Made by professionals for professionals
We made sure that the installation and setup process does not require any extra time or effort. Like other Ajax devices, MultiTransmitter connects to a hub in the app by scanning a QR-code. When connecting wired devices, you don't need to know the resistors' resistance values. The system will also warn you if a device was not connected correctly.
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Specifications:
Maximum effective radiated power (ERP): up to 20 mW
Radio signal modulation: GFSK
Radio signal range: up to 2,000 m
Frequency hopping: To prevent radio interference and jamming.
Wired devices connection
Number of zones: 18 wired zones
Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption.
Type of connection: NC, NO, EOL
EOL resistance: from 1 k to 7.5 k with 100 increment
Operation mode: pulse, bistable
Event types: 15 event types of wired devices
- Tamper alarm
- Intrusion
- Fire
- Auxiliary alarm
- Panic button
- Gas alarm
- Malfunction
- Leakage
- Glass break
- High temperature
- Low temperature
- Masking
- Duress code (opening)
- Vibration (seismic sensor)
- Custom
Sabotage protection
Tamper alarm: Two tampers to detect the MultiTransmitter casing opening and alert about detachment from the wall.
Protection against spoofing: device authentication
Communication loss detection: within 36 seconds
Dimensions: 192 × 238 × 100 mm
Weight of the black device: 802 g
Operating temperature range: from 10 °C to +40 °C
Operating humidity: up to 75%
Protection class: IP40, IK06
