Ajax MultiTransmitter

A module for the integration of third-party wired detectors

Ajax Multi-Transmitter is an 18 zone wired panel used for the integration of third party wired devices. Whether you want to replace your existing alarm control panel or add wired devices to your Ajax system, the MultiTransmitter will seamlessly transform your wired devices into secure and configurable system fully controlled from the Ajax mobile app.

The MultiTransmitter wirelessly pairs to an Ajax Hub and is compatible with all the Ajax Hubs.

Ajax MultiTransmitter

A module for integrating third-party wired devices into Ajax.

The Ajax Multi-Transmitter is an 18 zone wired panel that integrates wired devices into the Ajax system. Whether you want to add wired devices to your Ajax Smart Alarm or replace your existing Wired Alarm System, Ajax MultiTransmitter will seamlessly transform your wired devices into a secure and configurable system controlled from the Ajax mobile app.

The MultiTransmitter is compatible with all the Ajax Hubs.

Battery Option (if selected):

Gel battery: EPS 8Ah 12v Gel Battery at a discounted rate.

*Alternative batteries are available.

Security via smartphone

With MultiTransmitter, system users get security control via app, data-rich notifications and automation scenarios. An installer can set up the system or device in the PRO-app, both while on-site and remotely.

Less hassle with automated security

Use automation scenarios so that the security system instantly responds to threats without waiting for police. Ajax will be armed by schedule, turn on the light by the alarm of a motion detector, switch off the potential cause of ignition at the first sign of fire. With MultiTransmitter, an old alarm system becomes part of a safe and smart home.

More Ajax Features

IR barriers, household gas, temperature, liquid level detectors and much more with MultiTransmitter, these devices are ready to expand the Ajax areas of use. And wired connectivity and support of international security industry standards ensure full compatibility.

New Features Of Old Devices

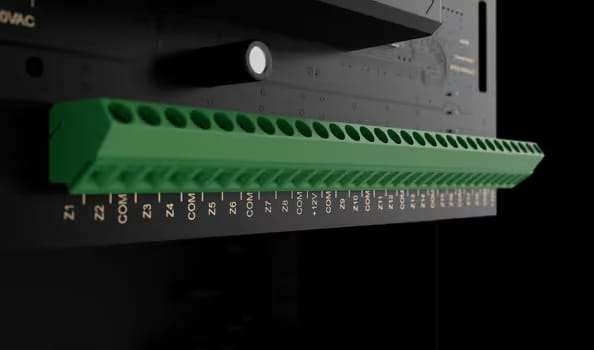

MultiTransmitter has 18 wired zones, each of which can be configured in the Ajax app. The detectors connected to the zones can be active 24/7, operate with entering or exiting delay, activate sirens if necessary, and participate in automation scenarios. With MultiTransmitter, the old alarm system becomes part of a secure and smart home.

Data-Rich Alarms

With MultiTransmitter, you can specify the type of alarm and a room for each wired device. This makes notifications more informative you know not just what happened but where. This information is displayed using push notification, SMS, and is also sent to the security company's monitoring station under an appropriate code. A total of five types of alarms are available: intrusion, fire, medical assistance, panic button, gas alarm.

Jeweller - Wireless communication between Hub and Devices

MultiTransmitter communicates with a hub via an encrypted Jeweller radio protocol. This is a TDMA technology developed by Ajax Systems for uninterrupted communication with devices. Jeweller detects jamming attempts, switches to the backup frequency in case of interference, and allows Ajax wireless devices to run on battery power for years.

Security Without Barriers

When using ReX range extenders, Ajax security system's radio network can cover up to 35 km2. But if some rooms are impermeable for radio waves, connecting wired devices via MultiTransmitter is the best solution. The length of wires can reach 400 meters.

Protected against sabotage

MultiTransmitter will inform you instantly if the connected devices have been interrupted with power failure, disconnection of the signal cable, or tampering. Electricity loss at the site will not be a problem either the backup battery can provide power to devices for up to 4 days. MultiTransmitter body itself is equipped with two tampers that respond to removal of the integration module from the moun...
