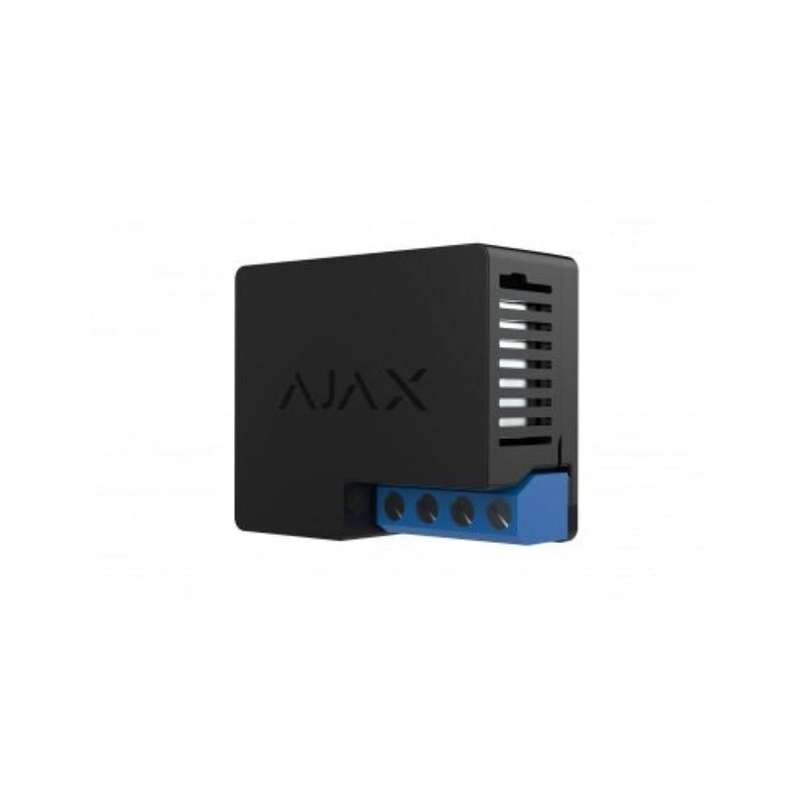

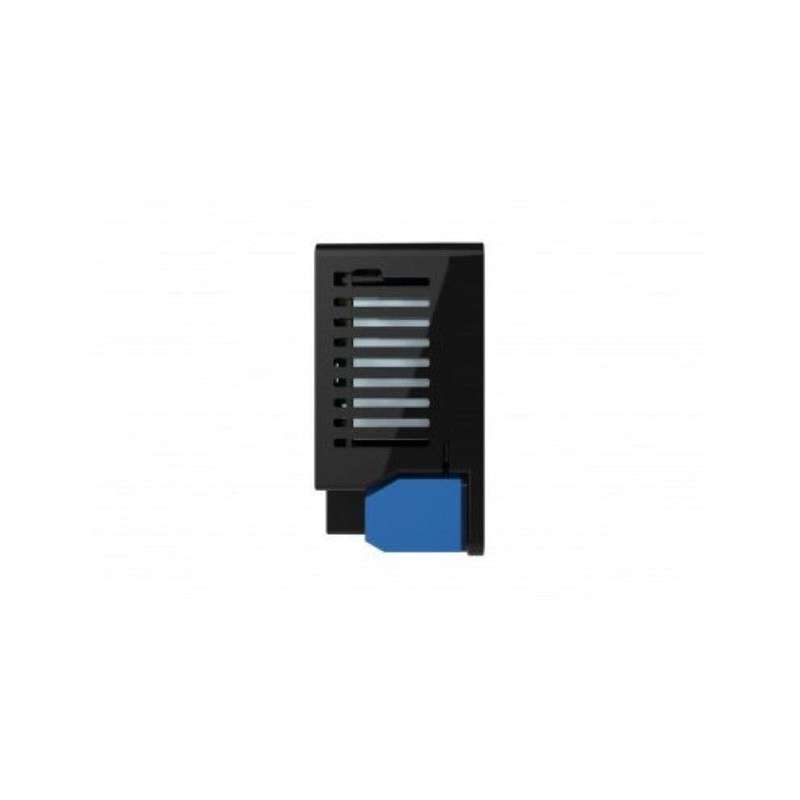

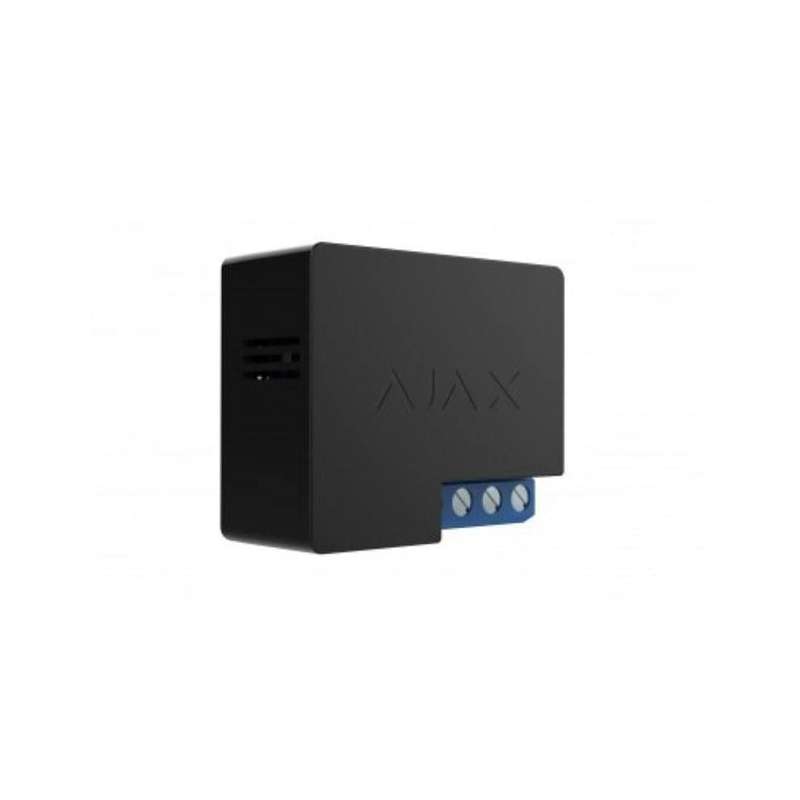

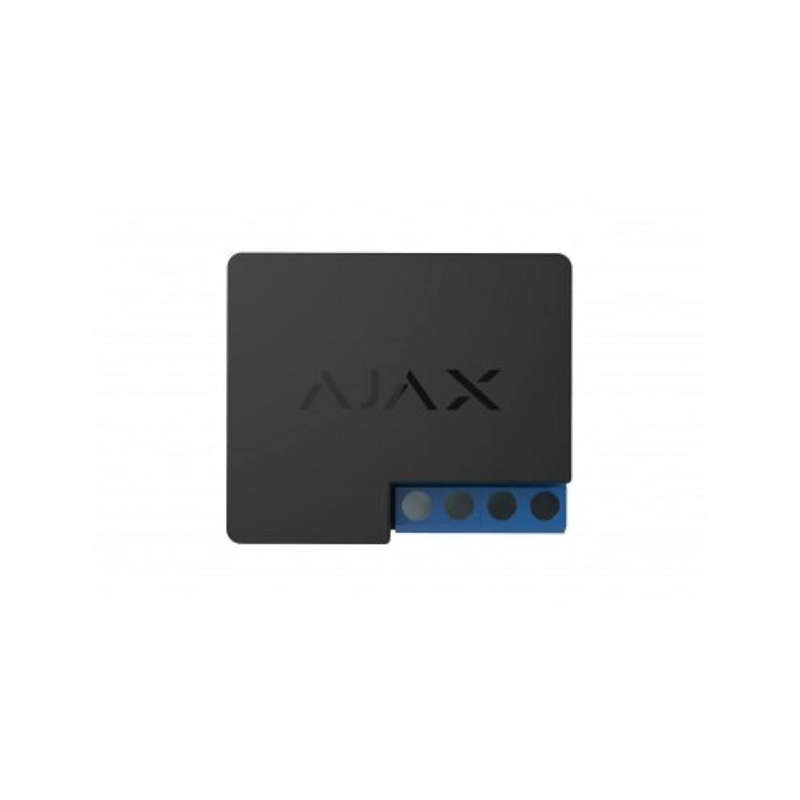

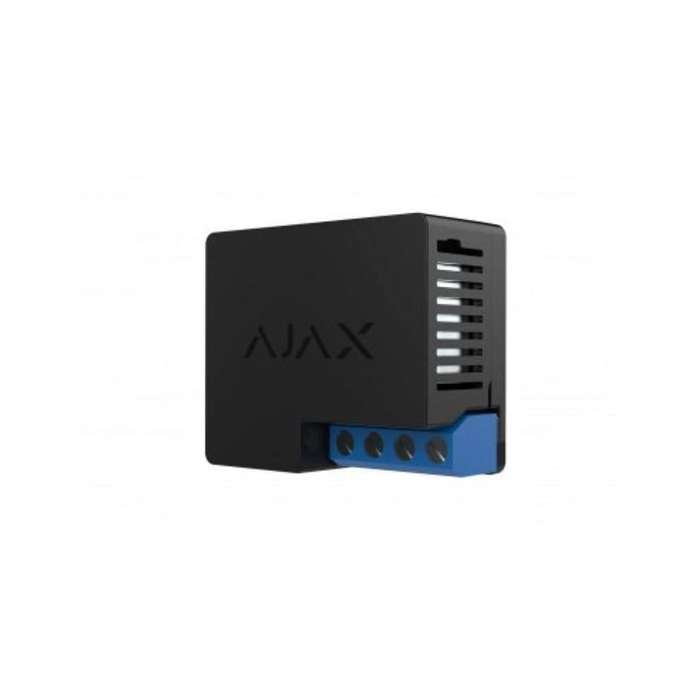

Ajax Relay Wi-Fi Jeweller

The impulse for smart security

Settings versatility and low power consumption make Relay a universal tool for equipment control. Dry contact is not galvanically connected to the device power supply so that it can be used both in low-voltage and household networks. There are bistable and pulse modes. The relay can be easily connected to a power supply unit paired with a backup battery.

No extra effort

Connecting Relay to the hub takes less than a minute it's enough to scan a QR code with the Ajax app. The miniature device (39×33×18 mm) fits easily into a junction box, an electrical panel, or a switching unit body with DIN Holder. And the flexible external antenna provides stable connectivity.

Always in touch

We developed the Jeweller radio protocol to ensure uninterrupted interaction of all security system devices. The radio protocol uses frames to synchronize device communication, authentication to prevent forgery, and encryption to protect against hacking.

Specifications:

Classification: Radio channel relay unit

Device type: Wireless

Installation method: Into electric switchboard, junction box

Compatibility: Operates with all Ajax hubs and range extenders

Actuating element: Electromagnetic relay

Relay service life: 200,000 switch-ons

Voltage protection: Max 36.5 V, min 6.5 V

Maximum load current: 5A at 24 VâŽ", 13A at 230V

Maximum current protection: No

Maximum temperature protection: > 65°C at the place of installation

Electric power meter function: No

Energy consumption parameter check: Voltage

Power supply: 7—24 V (DC only)

Operation modes: Pulse, Bistable

Contact state: Normally open, Normally closed

Adjustable pulse duration: 1—255 sec
