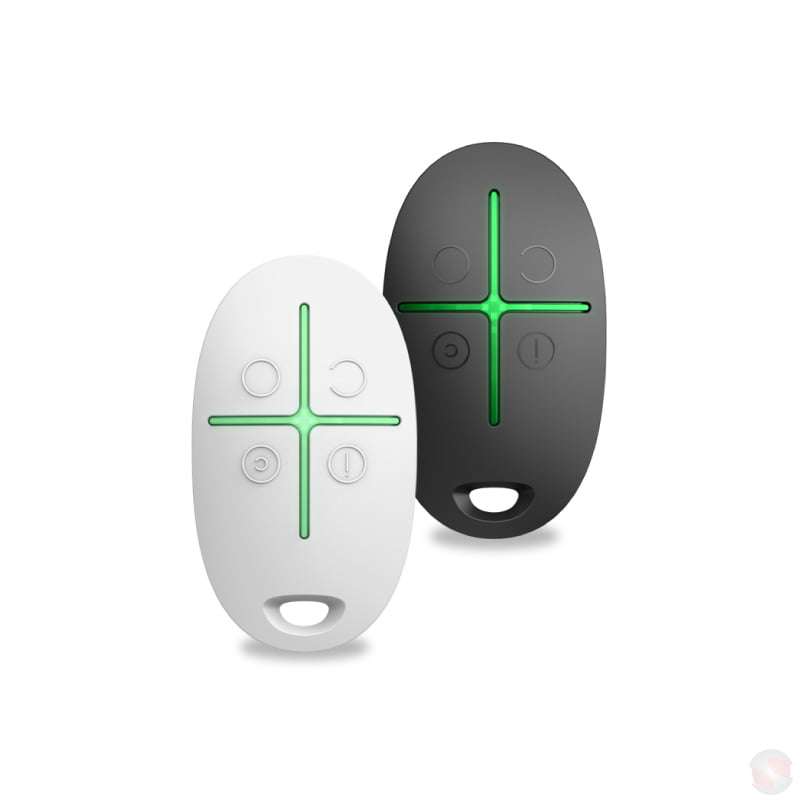

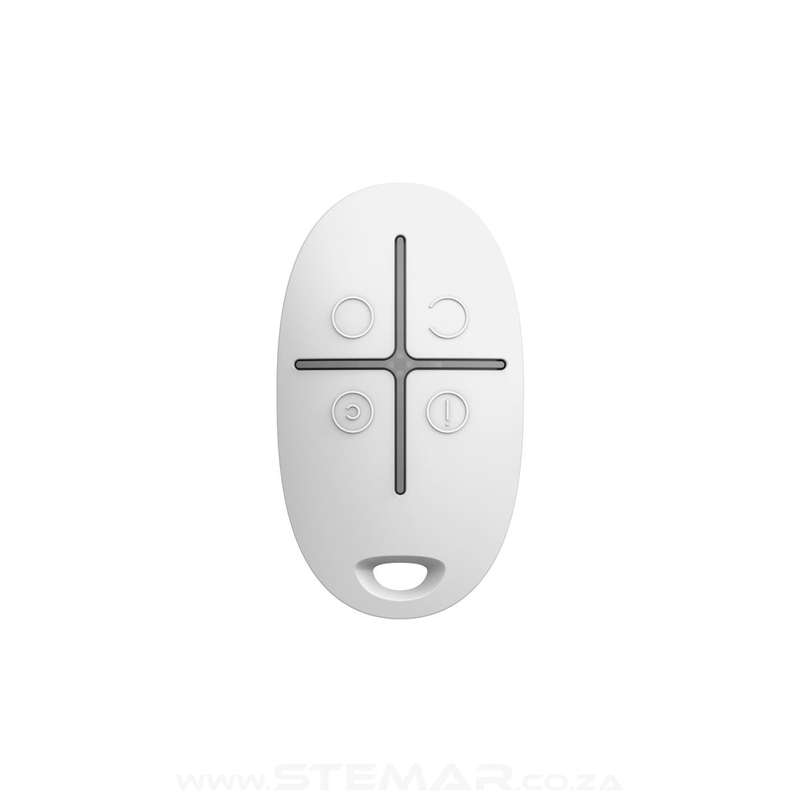

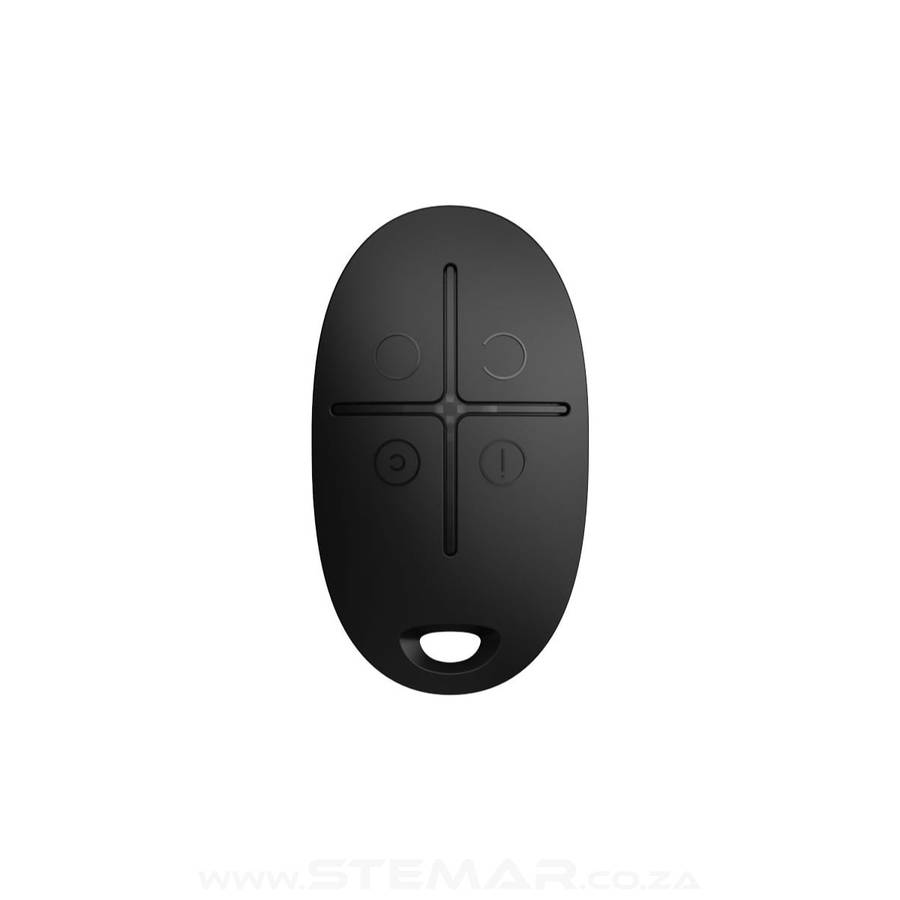

Ajax SpaceControl Remote / Key Fob

The SpaceControl key fob includes 4 buttons for Full Arm, Partial Arm / Night Mode, Disarm and Panic. SpaceControl can also be setup to control a selected group / partition only, e.g. staff and tenant areas.

• Ajax 2-way remote with panic button
• One-touch full or partial arming
• Colour coded security status indication
• Rolling code encryption and authentication
• Battery life up to 3 years

Ajax SpaceControl

The SpaceControl key fob includes 4 buttons for Full Arm, Partial Arm / Night Mode, Disarm and Panic and can also be setup to control a selected group / partition only, e.g. staff, outdoors, study etc.

Connecting and setting up

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application.

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Features:

• Two-way communication.
• Advanced sabotage protection.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Specifications:

• Maximum effective radiated power (ERP): up to 20 mW
• Radio signal modulation: GFSK
• Radio communication range: up to 1,300 m up to 1,300 m

Key features

• Number of buttons: 4

System arming button.
System disarming button.
Night mode button.
Panic button.

• Group management: A user can select a security group that the key fob manages.
• Assigning to a user: When a key fob is assigned to a user, its events are sent to Ajax apps under the user's name. The key fob has the same security mode management rights as the user.
• Accidental press protection: long or double press
• Power supply
• Battery: 1× CR2032
• Type: type C
• Full battery capacity: 225mAh
• Dimensions: 65 × 37 × 10 mm
• Weight: 13 g
• Protection class: IP50
