Ajax SpeakerPhone Jeweller

• Wireless voice module for two-way communication between security operators and on-site individuals.
• Enables instant operator response after an alarm for verification and rapid action.
• Communicates via Jeweller, Wings, and VoRF protocols for secure and stable transmission.
• Built-in speaker (up to 103 dB) and omnidirectional microphone with AI-powered sound optimization.
• Automatic call connection after an alarm; no button press required.
• Supports alarm verification, intruder deterrence, and emergency assistance requests.
• Compatible with Ajax systems running OS Malevich 2.27 and later.
• Autonomous power supply with a secure enclosure and tamper protection.
• Assignable to specific security groups with multi-device support (up to 10 per system).
• Transmits events to monitoring stations in SurGard, SIA, ADEMCO 685, and other formats.

Ajax SpeakerPhone Jeweller

Ajax SpeakerPhone Jeweller is a cutting-edge wireless voice module designed for seamless two-way communication between a security monitoring / armed response operator and individuals on-site. It provides an immediate response mechanism after an alarm is triggered enabling quick verification of incidents and fast emergency reactions. The device provides clear and secure full-duplex voice communication using the VoRF1 proprietary audio streaming protocol and AI technologies.

• Built-in speaker with a volume of up to 103 dB for high audibility in noisy environments.
• AI sound optimisation can be enabled to hear a person clearly in a noisy setting or disabled to focus on background sounds.

SpeakerPhone Jeweller employs three dedicated radio protocols for stable and secure connectivity:

• Jeweller Ensures reliable alarm and event transmission.
• Wings Facilitates firmware updates.
• VoRF Streams high-quality two-way audio in real-time using time division duplexing (TDD) technology.

Always on Call for Emergencies

SpeakerPhone Jeweller is a fast and simple way to maintain contact with a secured facility, prevent false dispatches and protect users' peace of mind. In the case of an alarm, a central monitoring station (CMS) / armed response operator can immediately contact the facility to speak with someone on the spot or listen to what is happening. The operator assesses the situation and takes necessary action only when the threat is real. Operators can also use SpeakerPhone Jeweller to deter intruders or respond to auxiliary alarms.

Alarm verification

Deterring intruders

Help request

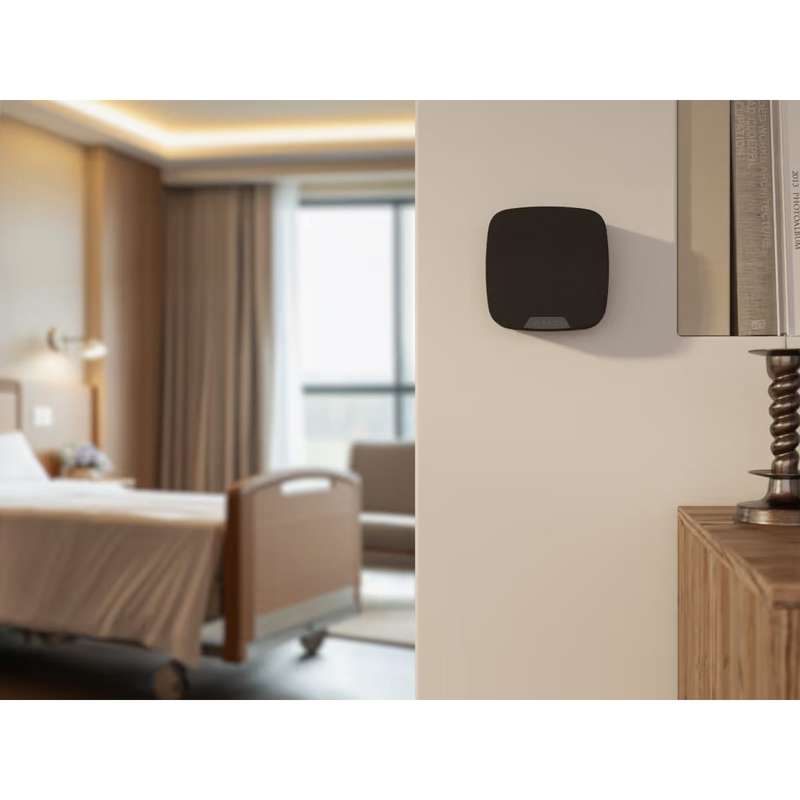

SpeakerPhone Jeweller can also be used in health facilities and nursing homes to enable direct communication with those needing immediate assistance.

Smart Scaling for Comprehensive Security

One security system supports up to ten SpeakerPhone Jeweller devices. If only one speakerphone is installed in the facility, it gets activated after any alarm on-site. In larger facilities with multiple speakerphones, devices activate only when detectors in the same room or security group are triggered. The CMS operator can also switch between several speakerphones in the system to assess the situation more fully.

Robust & Secure Design

• Autonomous power supply for continuous operation.
• Tamper protection and a secure enclosure with a holding screw.
• Power button locking when the system is armed, preventing unauthorized shutdowns.

Event Transmission to Monitoring Stations

SpeakerPhone Jeweller ensures that security operators receive comprehensive event notifications, including:

• Call start and end events.
• Tamper alarms and recovery notifications.
• Loss and restoration of connection with the hub.
• Device activation and deactivation events.

The Ajax system integrates with professional monitoring software supporting industry-standard communication protocols such as SurGard (Contact ID), SIA (DC-09), and ADEMCO 685 ensuring compatibility with most security control rooms.

Principle of Operation

Alarm Trigger:

The SpeakerPhone Jeweller is activated when the Ajax system detects a threat, such as motion detection, smoke or a panic button alarm.

Two-Way Communication:

Once triggered, the SpeakerPhone Jeweller facilitates direct voice calls between a central monitoring station (CMS) operator and the secured site.

Clear and Secure Communication:

The device uses the VoRF1 proprietary audio streaming protocol and AI technologies to ensure clear and secure full-duplex voice communication.

Operator Assessment:

The CMS operator can immediately contact the facility to speak with someone on-site or listen to what's happening allowing them to assess the situation and take appropriate action.

Hands-Free Activation:

The connection activates automatically allowing CMS operators and site occupants to speak directly without needing additional steps.

AI-Powered Sound Optimisation:

The SpeakerPhone Jeweller features an AI-powered audio processor that suppresses extraneous noise and automatically adjusts sensitivity ensuring clear communication even in noisy environments.

Alarm Confirmation:

The system can be configured to activate a scenario when an alarm is confirmed which can prevent costly or risky actions from being triggered in the event of a false alarm.

Integration with CMS / Armed Response:

The hub can directly contact the CMS software's SIP server allowing it to initiate a call automatically after an alarm.

What's in the Box
