Ajax Tag is a copy-protected encrypted contactless key fob that can arm and disarm the Ajax system by presenting the Tag to the reader on the Ajax Keypad Plus and Ajax Keypad Touchscreen. The tag can be used without a user account, password or access to the Ajax mobile app.

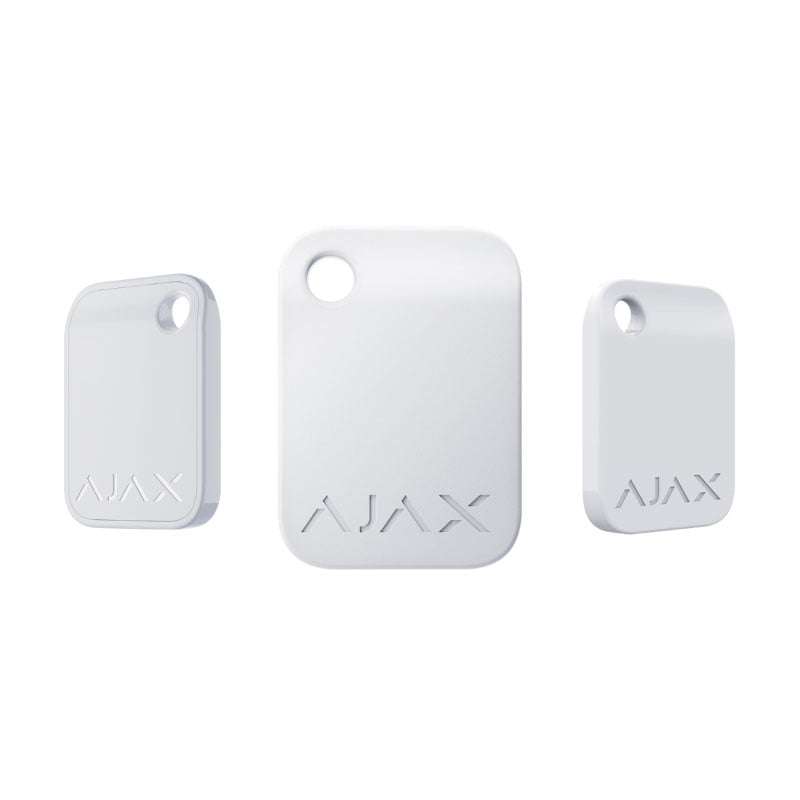

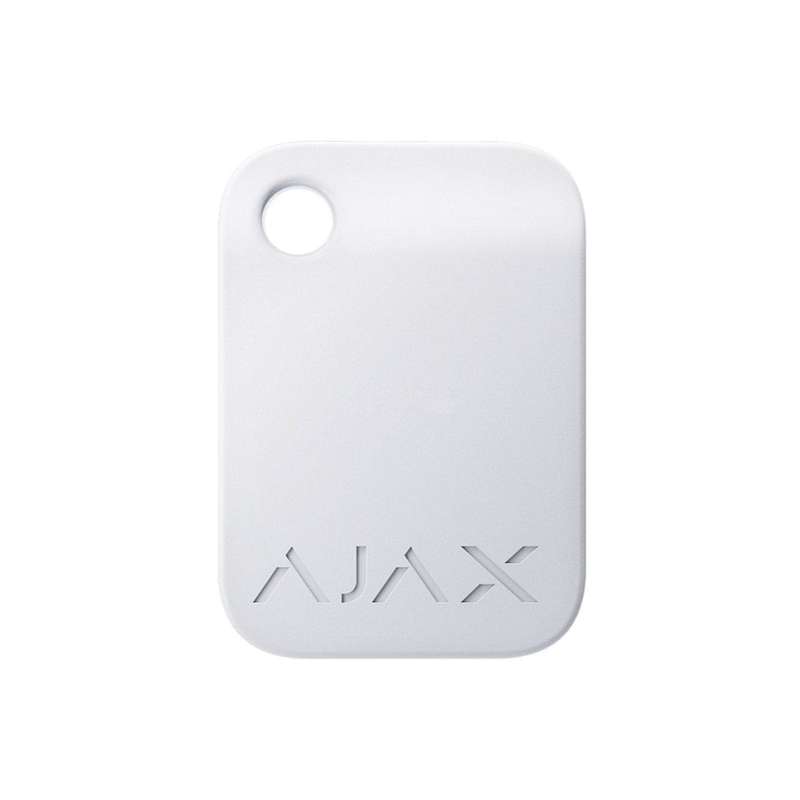

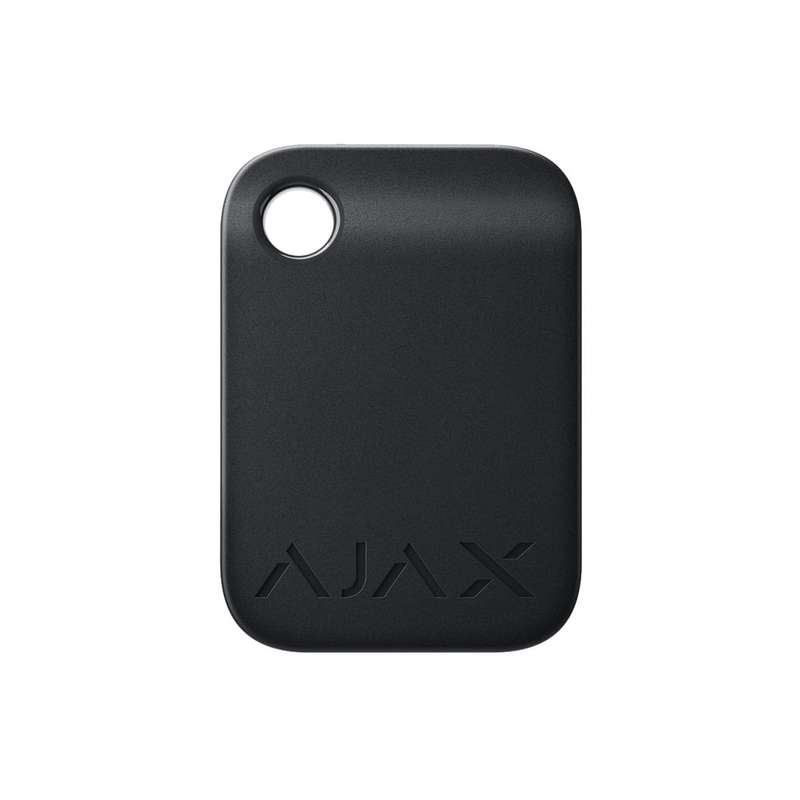

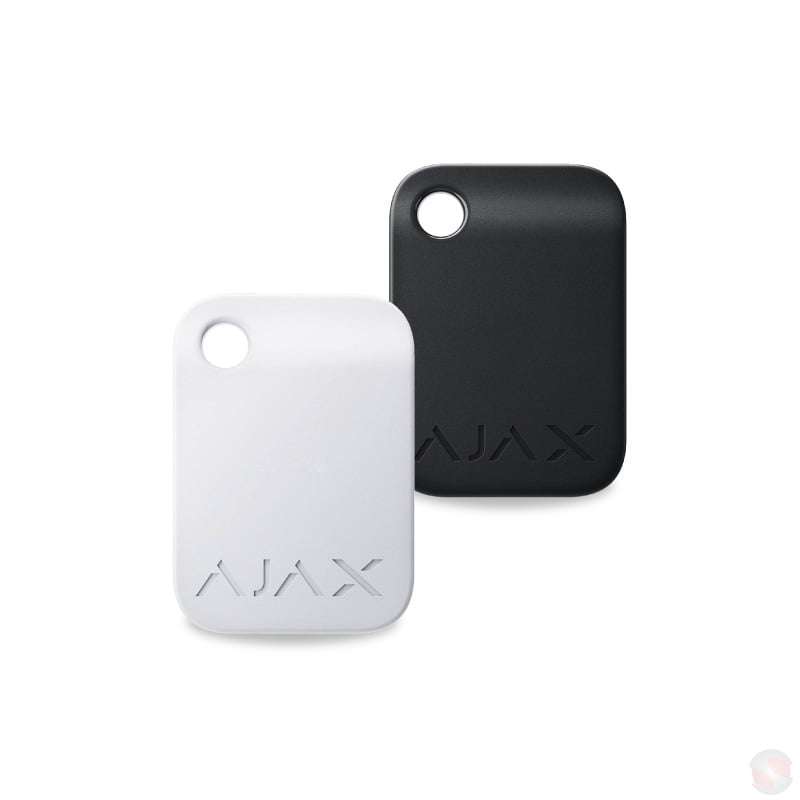

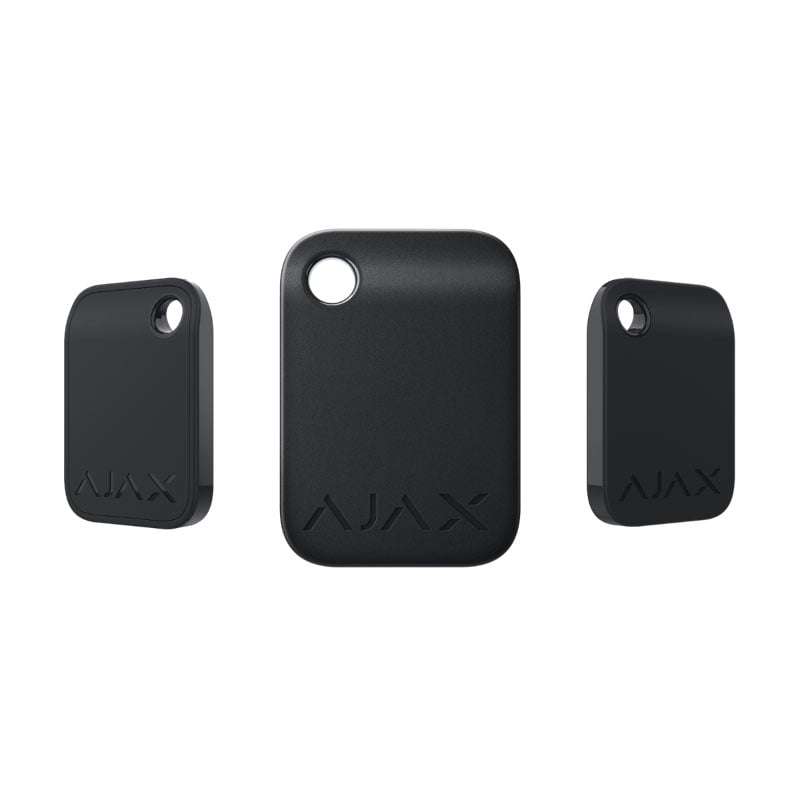

Ajax Tag
Quick access to the security system
To disarm the security system, just present Tag to the reader on the keypad. This copy-protected key fob allows you to manage security modes without a password, user account and access to the Ajax app.
Top-tier data protection
To identify users quickly and securely, KeyPad Plus features the DESFire® technology. It is the best-in-class contactless solution to identify the user by card or key fob.
DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA.
One key for home and office
One Tag can be connected to 13 hubs
Full control in the app
In the app, you can set the name and access permissions for each key fob. You always know who and when changed the security mode as every action is recorded in the event log. A system administrator can revoke or restrict Tag access permissions in real time.
Effortless connection
To add Tag to the system, all you need is to open the Ajax app, go into the settings and present the key fob to the Keypad Plus.
Works with Ajax Keypad Plus and Ajax Keypad TouchScreen
Features
- Use Simple access systems: barriers, intercoms, hotel rooms.
- Combined access systems, where additional information is stored on the chip: fitness
- clubs, entertainment
- Systems with multi-level access in government, international and military institutions.
- Encryption No Crypto-1 stream cipher with a key size of 48 bits.
- A number of studies have shown the possibility of hacking this cipher with tools that are freely available.
- Triple DES encryption and AES hardware encryption with 128-bit key.
- It will take several supercomputers and millions of years to hack.
- Memory No built-in memory Up to 4 KB of built-in memory, which allows you to store
- data on payment, card expiration date, users.
- Up to 8 KB built-in memory that allows you to store user data and access keys to multiple security systems.
- One key for home and office
- One Tag can be connected to 13 hubs
- Full control in the app
- In the app, you can set the name and access permissions for each key fob. You always know who and when changed the security mode every action is recorded in the event log.
- A system administrator can revoke or restrict Tag access permissions in real time.
- Effortless connection
- To add Tag to the system, all you need is to open the Ajax app, go into the settings and
- present the key fob to the keypad.
Technical Specifications
- Communication technology DESFire®
- Operating standard ISO 14443- (13.56 MHz)
- Encryption +
- Authentication +
- Protection from signal interception +
- Possibility to assign the user +
- Maximum number of bound hubs Up to 13
- Compatibility KeyPad Plus
- Operating temperature range From -10°C to +40°C
- Operating humidity Up to 75%
- Overall dimensions 45 × 32 × 6 mm
- Weight 7 grams
What's in the Box:
1 x Ajax Tag (options of Black and White)
Ajax Tag User Manual and Tech Specs
User Manual
Tech Specs
