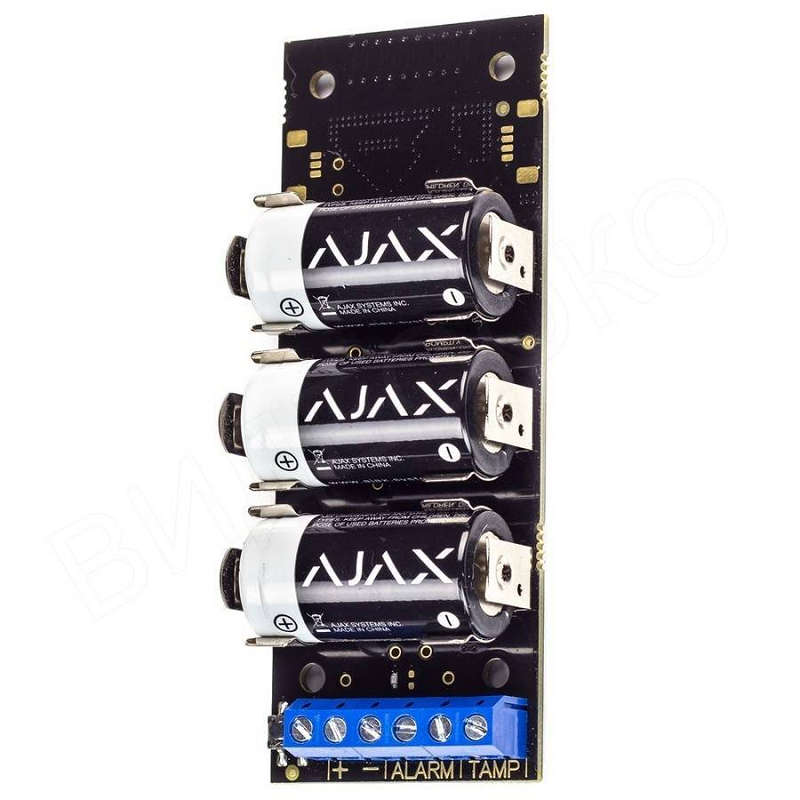

Ajax Transmitter - 0.30kg

Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system.

The device receives the activation signal from the detector via wired input and sends an alarm to the hub.

It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.

It is installed in the enclosure of outdoor detectors or a mounting box.

Communication range with central unit — up to 1,600m in an open space
Two-way communication between devices
Operating frequencies — 868.0—868.6MHz
Self-adjusting RF output power — up to 20 mW
Uses 3 x CR123A lithium batteries to provide years of service.
