Ajax vhfBridge is a Module for connecting Ajax security systems to third-party VHF transmitters / armed response radio transmitters
Ajax communicates with monitoring and armed response companies via cloud however if they are not Ajax ready, the Ajax vhfBridge can connect to their radio transmitters and provide battery backup for both devices for up to 75 hours during power failures.
*Ajax vhfBridge works with Hub Plus, Hub 2 (2G), Hub 2 (4G) and Hub 2 Plus
Ajax vhfBridge
Instant alarm transmission without Internet
vhfBridge is a transponder that provides an Ajax Hub with an additional channel to communicate with an armed response company. With vhfBridge, you can use Ajax systems where the internet connection is unstable or if your preferred armed response is not Ajax ready / does not have the Ajax software installed on their servers.
vhfBridge can be used as a primary or a backup communication channel.
Elaborate autonomy - up to 75 hours battery backup

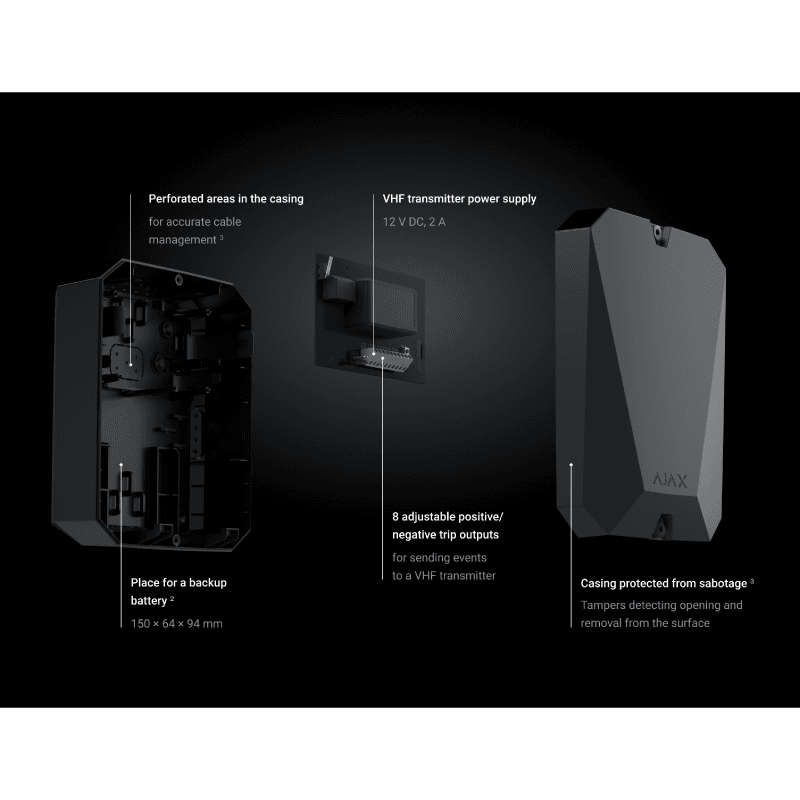

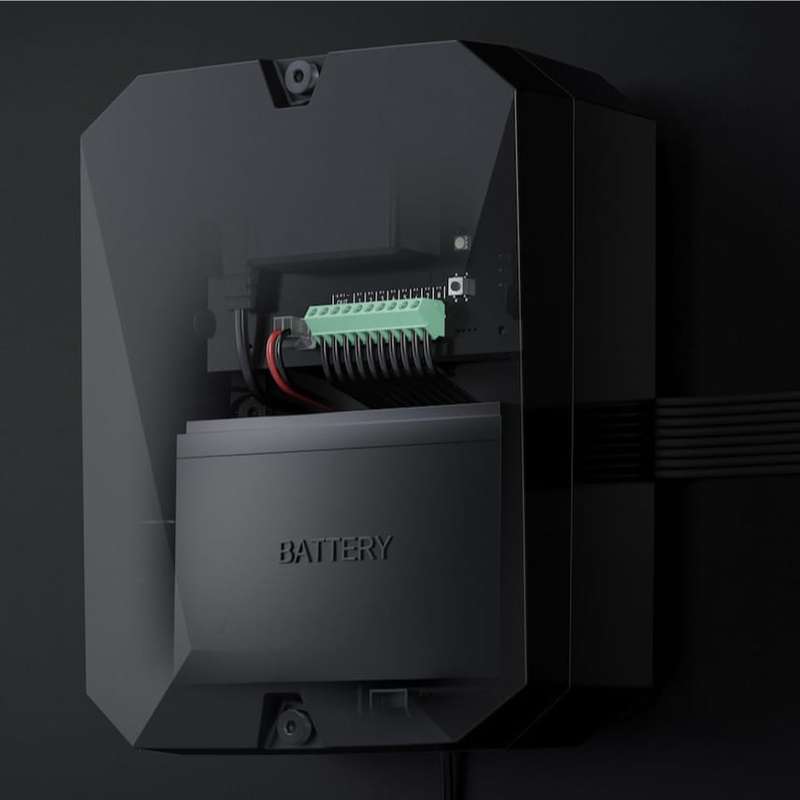

The vhfBridge casing has been designed to accommodate a 7Ah battery which can also be used to power up the armed response radio transmitter. In the event of power failures, the vhfBridge and AR Radio Transmitter will continue operating for up to 75 hours.
- Up to 75 hours of autonomous operation
- Space for a 7Ah backup battery
Adjustable signalling
Get only events you need. You can configure each vhfBridge output in the Ajax app: set an event or disable it.
Events supported by vhfBridge
- Intrusion
- Panic button
- Malfunction
- Tamper
- Power loss of vhfBridge
- Power loss of the hub
- Hub's battery discharged
- Loss of connection between vhfBridge and the hub
- Fire
- Medical assistance
- Any alarm
- Change of security modes
- vhfBridge battery discharged
- Confirmed intrusion
- Confirmed hold-up device alarm
What's in the Box - Options as follows:

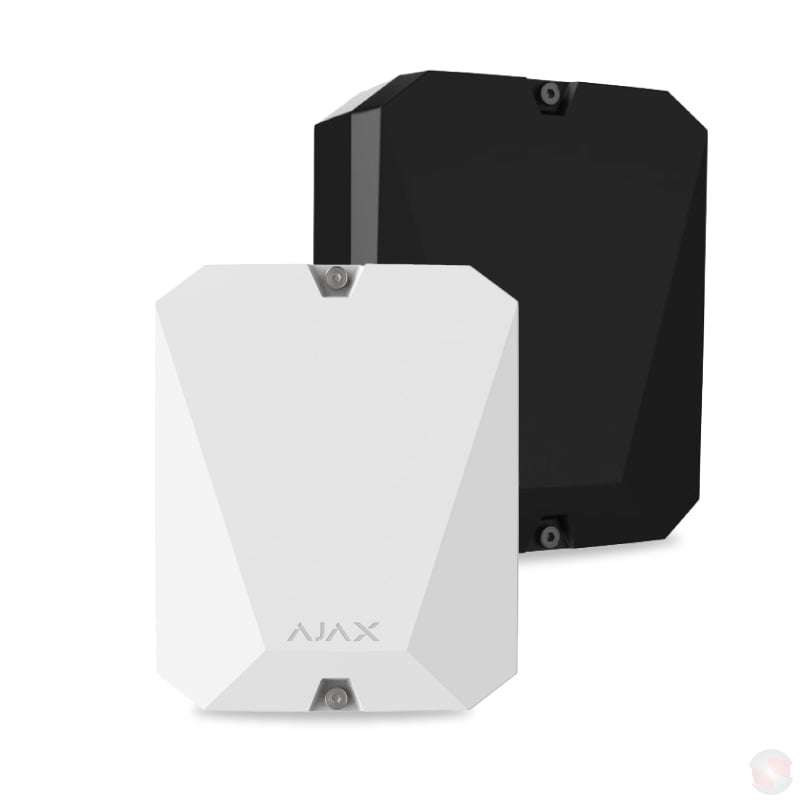

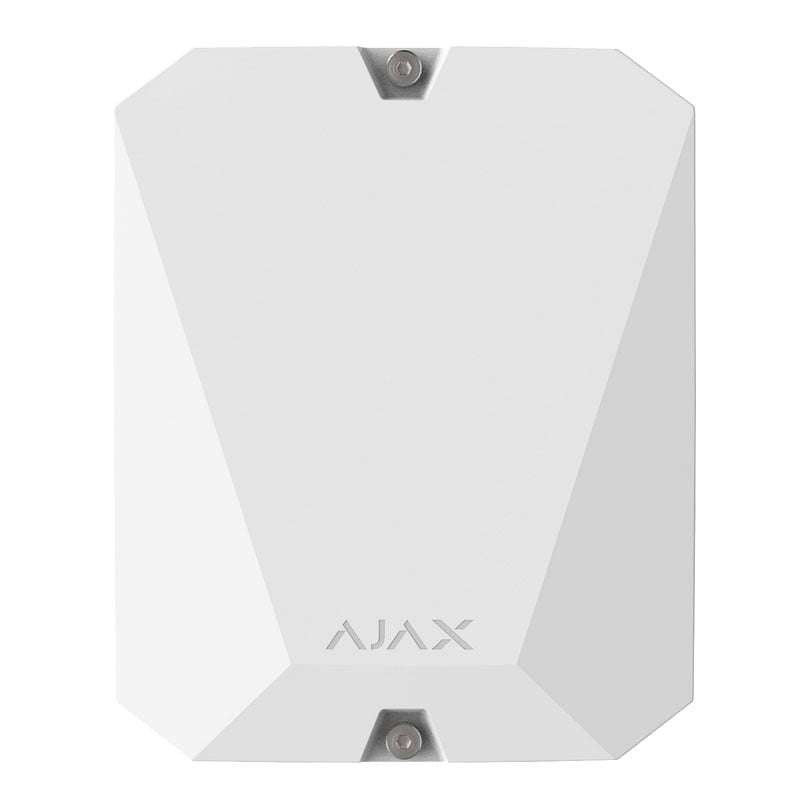

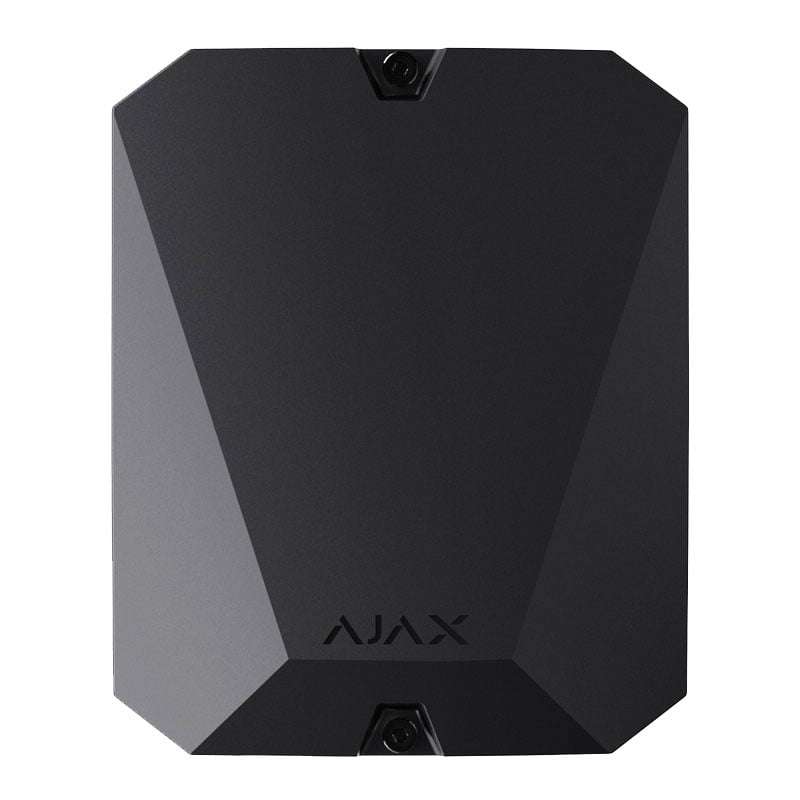

- Ajax vhfBridge - in Black or White

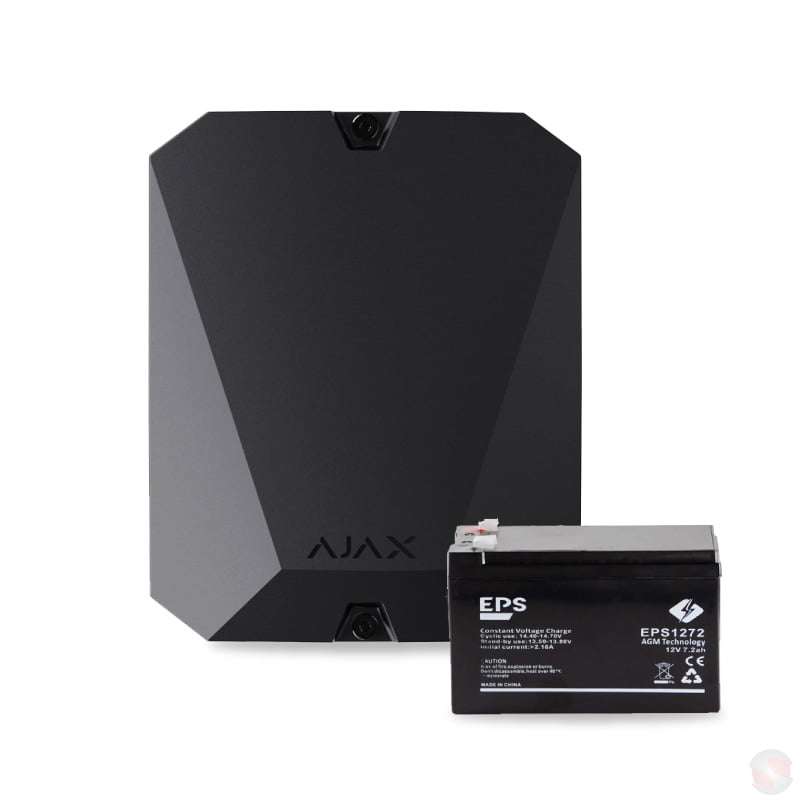

- Including or Excluding an EPS 8Ah Gel battery
